Reliable Non-Contact Monitoring for Critical Rotating Machinery

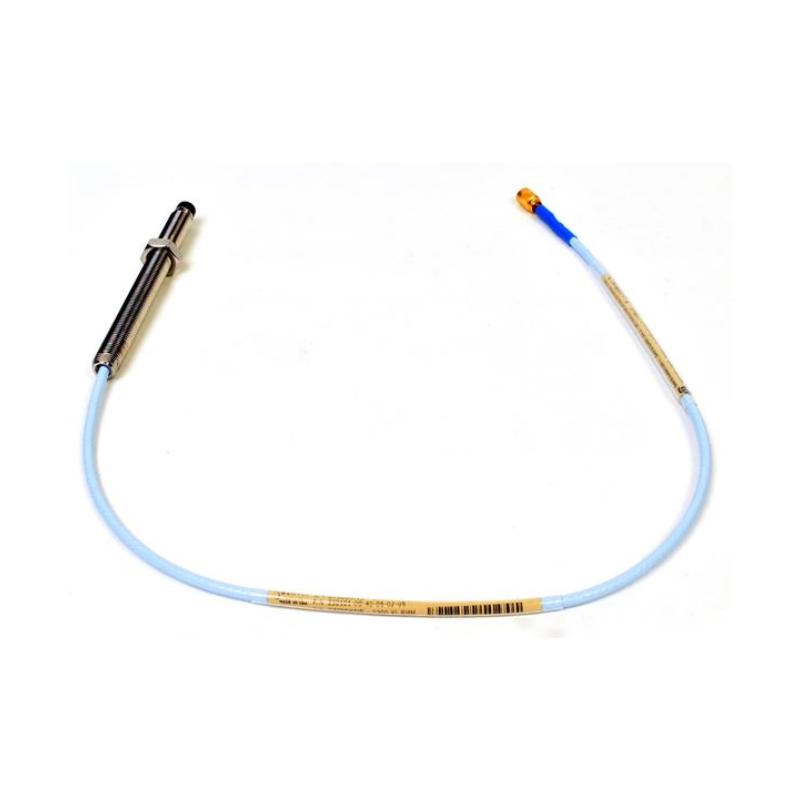

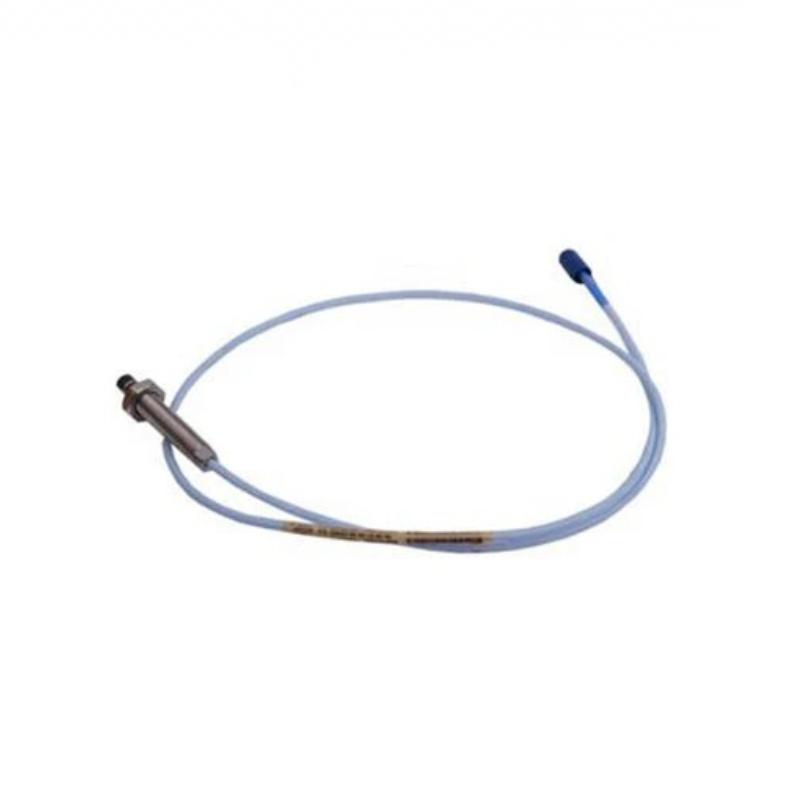

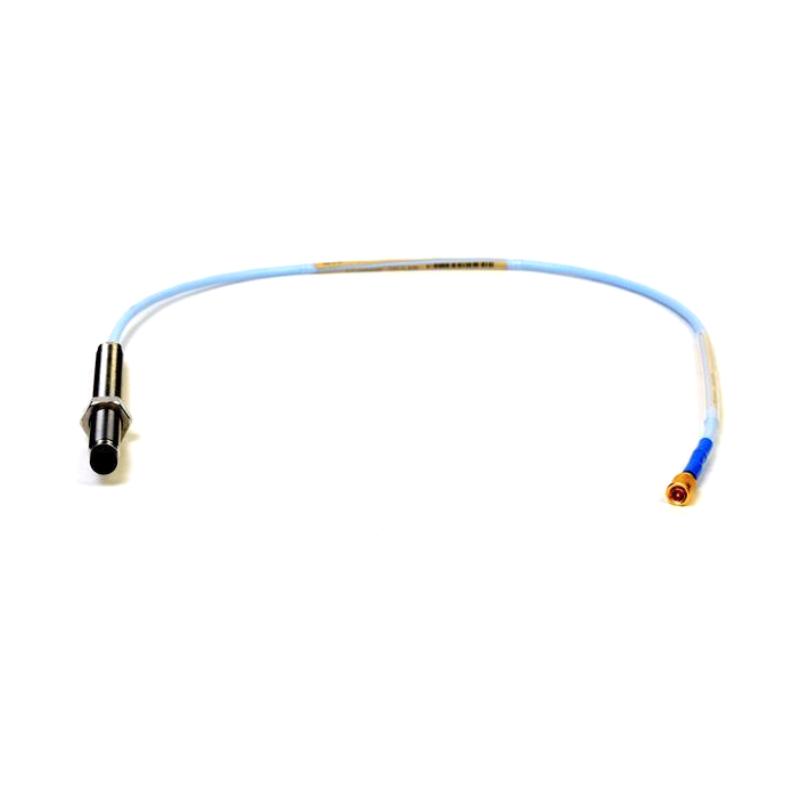

The Bently Nevada 330101-00-44-10-02-05 3300 XL 8 mm Proximity Probe is a precision eddy-current sensor designed for continuous measurement of shaft vibration and radial position in industrial rotating equipment. As part of the widely used 3300 XL proximity transducer system, it delivers stable signal output, high interchangeability, and long-term reliability in harsh industrial environments.
This configuration features a 0.0 in unthreaded length, a 4.4 in (111.8 mm) case length, a 1.0 m (3.3 ft) total cable length, and a Miniature Coaxial ClickLoc connector with standard cable, making it suitable for standard industrial installations. The probe is fully compatible with Bently Nevada 3300 XL Proximitor® sensors and extension cables for integrated machinery protection systems.
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-44-10-02-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Probe Diameter | 8 mm |
| Unthreaded Length | 0.0 in (0 mm) |
| Case Length | 4.4 in (111.8 mm) |
| Total Cable Length | 1.0 m (3.3 ft) |
| Thread Size | 3/8-24 UNF |
| Connector Type | Miniature Coaxial ClickLoc Connector |
| Cable Type | Standard Cable |
| Housing Material | Stainless steel |
| Approximate Weight | ~0.32 kg |
