High-Stability Compact Sensor for Deep-Installation Machinery Monitoring

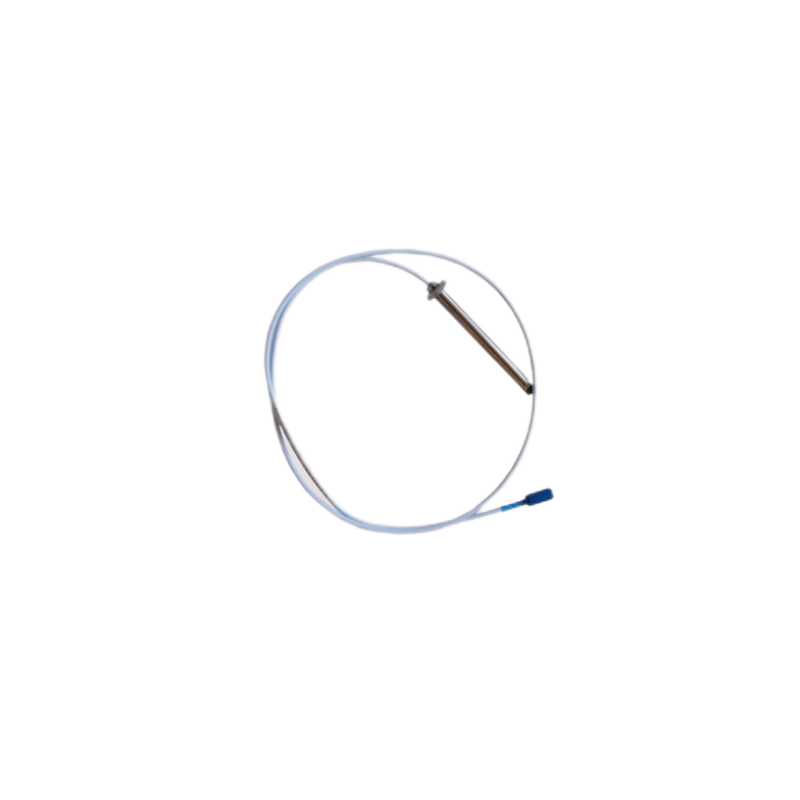

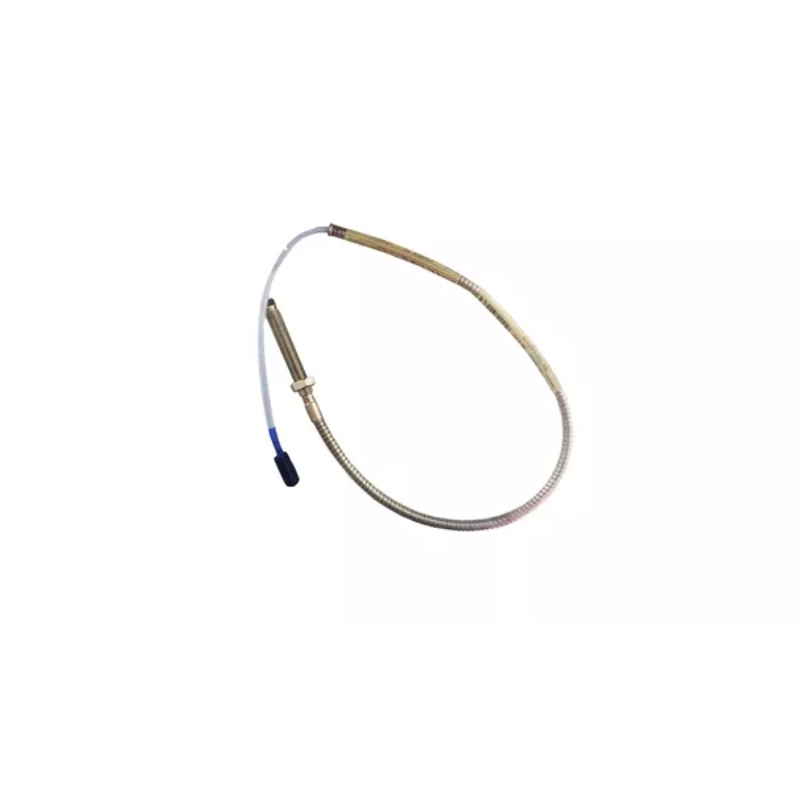

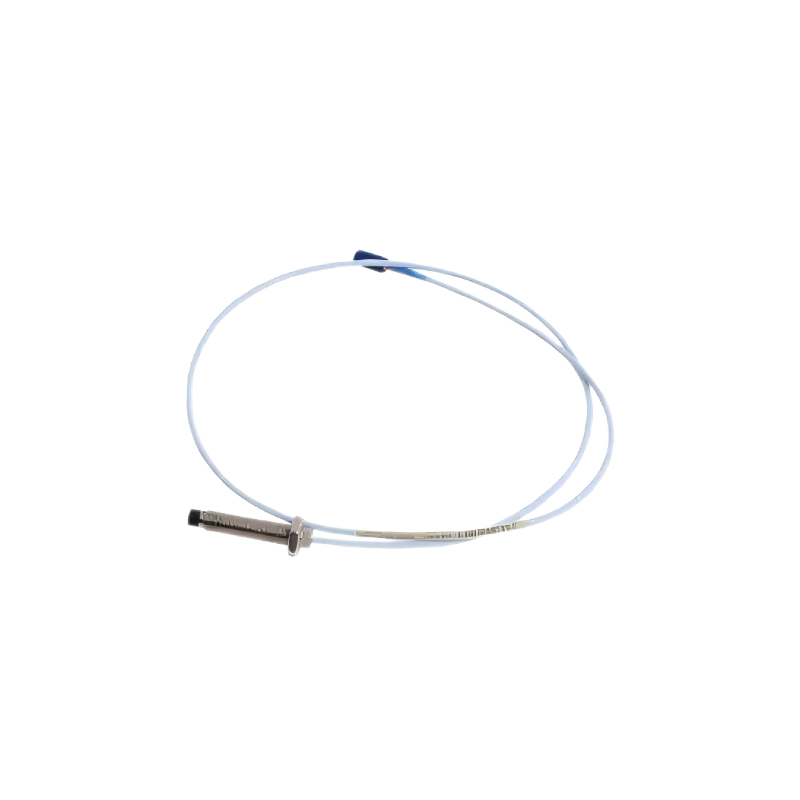

The Bently Nevada 330904-07-15-05-02-00 3300 NSv Proximity Probe is a non-contact eddy-current sensor designed for precise shaft vibration and position measurement in rotating machinery with demanding installation constraints. As part of the 3300 NSv (Narrow Side View) series, this probe is optimized for stable operation in compact machine housings where surrounding metallic structures could otherwise affect measurement accuracy.
This configuration is commonly used in industrial condition monitoring systems for compressors, turbines, and high-speed rotating equipment, where deep mounting depth and mechanical robustness are required for reliable long-term operation. NSv probes are widely recognized for their ability to maintain measurement stability in tight-clearance applications while supporting predictive maintenance strategies.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330904-07-15-05-02-00 |
| Product Series | 3300 NSv Proximity Probe |
| Measurement Principle | Eddy-current non-contact sensing |
| Thread Type | M8 × 1 metric thread |
| Case Length | 150 mm |
| Unthreaded Length | 70 mm (configuration-based) |
| Total Cable Length | 0.5 m |
| Connector Type | Miniature ClickLoc coaxial connector |
| Cable Type | 75 Ω FEP insulated coaxial cable |
| Housing Material | AISI 304 stainless steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Operating Temperature | -52°C to +177°C |
| Frequency Response | 0–10 kHz |
| Linear Measurement Range | ~1.5 mm typical NSv system |
| Approx. Weight | ~0.2–0.9 kg (depending on configuration) |
Industrial Applications
This probe is widely used in rotating machinery protection and monitoring systems such as:
-
Centrifugal compressors
-
Gas compressors
-
Steam turbines
-
Gas turbines
-
Turbo-expanders
-
High-speed process pumps
-
Industrial refrigeration systems
-
Air separation units
-
Petrochemical rotating equipment
-
OEM skid-mounted machinery
Its extended geometry makes it suitable for installations requiring deeper shaft access or non-standard mounting layouts in compact machinery structures.
Key Advantages
◆ Deep-Mount Installation Capability
The 150 mm class design supports applications requiring extended reach into machine housings.
◆ Stable NSv Signal Performance
Reduces interference caused by surrounding metallic structures, improving measurement consistency.
◆ High-Precision Non-Contact Measurement
Delivers accurate shaft vibration and displacement readings without mechanical wear.
◆ Industrial-Grade Mechanical Strength
Stainless steel construction ensures durability in harsh industrial environments.
◆ Reliable Signal Transmission
75 Ω coaxial cable provides stable, low-noise measurement performance.
◆ Predictive Maintenance Enablement
Supports early detection of imbalance, misalignment, and bearing degradation.
◆ OEM and Retrofit Flexibility
Suitable for both new equipment design and legacy system upgrades.
Technical FAQs
Q1: What does this probe measure?
It measures shaft vibration and radial displacement without physical contact.
Q2: What does NSv mean?
NSv stands for Narrow Side View, designed to reduce interference from nearby metallic structures.
Q3: What does the “07-15” configuration indicate?
It typically refers to a 70 mm unthreaded length and 150 mm case length configuration.
Q4: What is the cable length?
This model includes a 0.5-meter integrated coaxial cable.
Q5: What is the thread type?
It uses an M8 × 1 metric threaded mounting system.
Q6: Where is it commonly used?
It is used in compressors, turbines, pumps, and other rotating machinery systems.
Q7: Is it suitable for high-temperature environments?
Yes, it is designed for operation up to +177°C.
Q8: Can NSv components be mixed with other systems?
No. Probe, extension cable, and Proximitor sensor must be properly matched as a system.
Q9: What is the main installation requirement?
Correct alignment with the rotating shaft target and proper gap setting.
Q10: What maintenance is recommended?
Regular inspection of cable integrity, mounting stability, and signal verification.
