High-Precision Compact Sensor for Tight-Clearance Machinery Monitoring

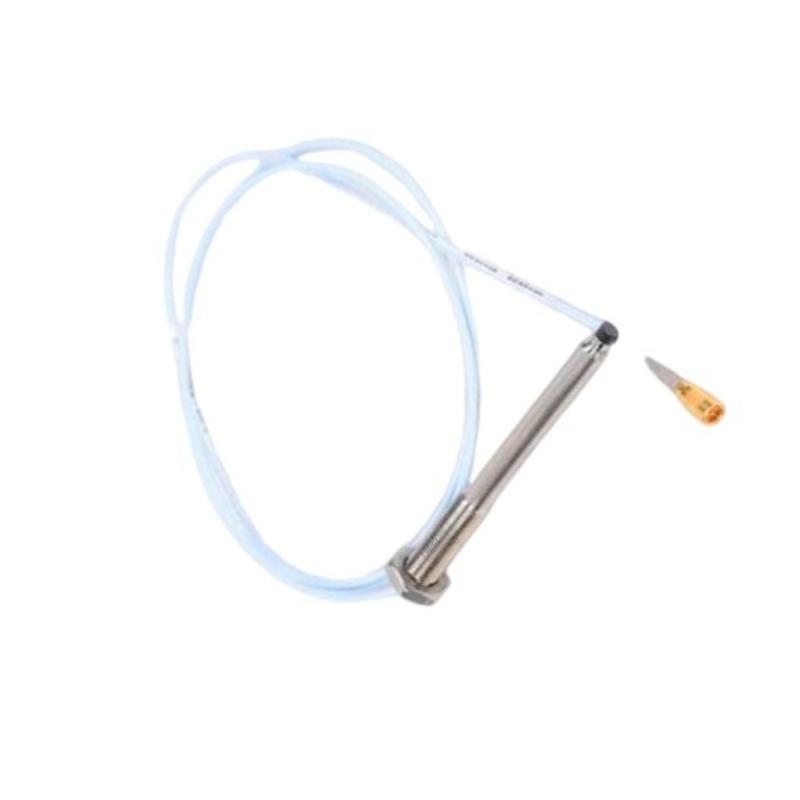

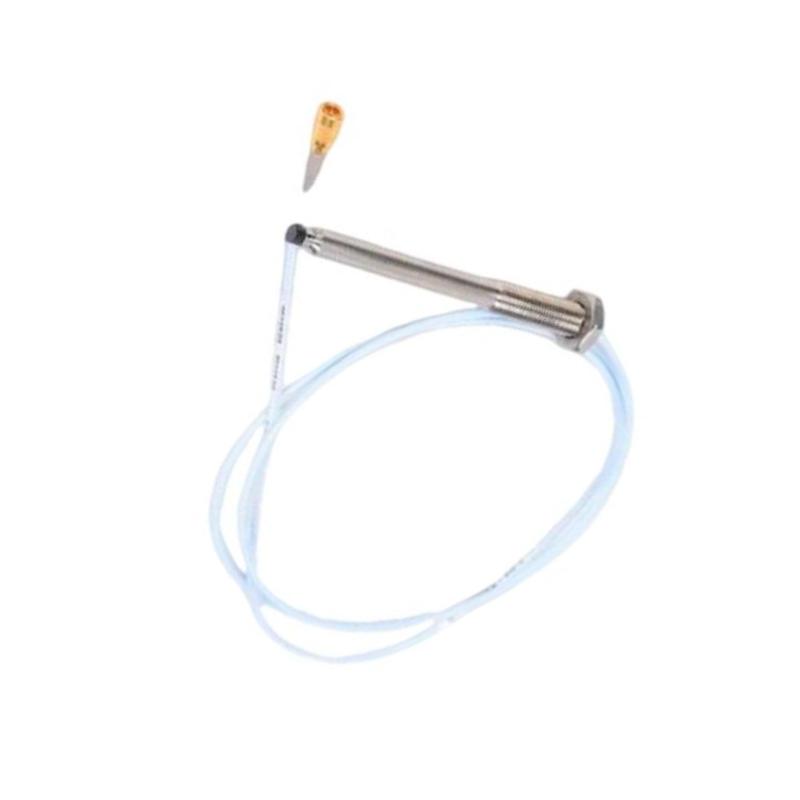

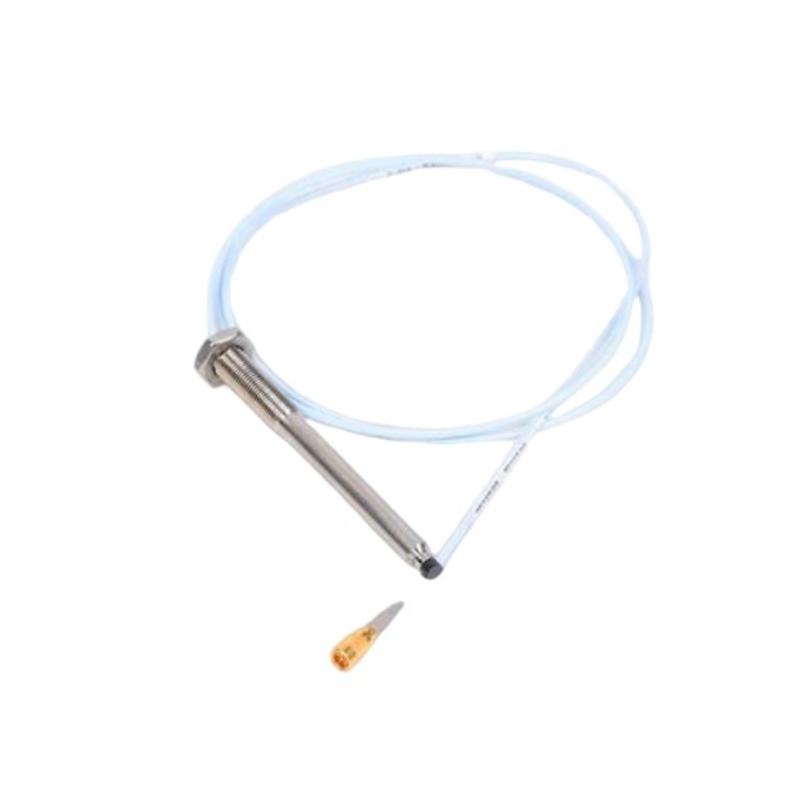

The Bently Nevada 330904-00-07-10-02-05 3300 NSv Proximity Probe is a non-contact eddy-current sensor designed for accurate vibration and shaft position measurement in rotating machinery with restricted installation space. As part of the 3300 NSv (Narrow Side View) family, this probe is engineered to reduce side-view interference from nearby metallic structures while maintaining stable signal output and consistent measurement accuracy in continuous industrial operation.
The NSv platform is widely used in compressors, turbines, pumps, and OEM packaged systems where compact geometry and reliable monitoring are essential for predictive maintenance strategies.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330904-00-07-10-02-05 |
| Product Type | 3300 NSv Proximity Probe |
| Thread Type | M8 × 1 metric thread |
| Unthreaded Length | 0 mm |
| Case Length | 70 mm |
| Total Cable Length | 1.0 m |
| Connector Type | Miniature ClickLoc coaxial connector |
| Cable Type | 75 Ω FEP insulated coaxial cable |
| Housing Material | AISI 304 stainless steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Operating Temperature | -52°C to +177°C |
| Frequency Response | 0–10 kHz |
| Linear Range | 1.5 mm (typical NSv system range) |
| Recommended Gap | 1.0 mm |
| Approx. Weight | ~0.3–0.8 kg (varies by configuration) |
Industrial Applications
This probe is commonly deployed in condition monitoring systems across:
-
Centrifugal compressors
-
Gas compressors
-
Steam and gas turbines
-
Turbo-expanders
-
Industrial refrigeration units
-
High-speed pumps
-
Air separation systems
-
OEM skid-mounted machinery
-
Petrochemical rotating equipment
-
Continuous machinery protection systems
Its mechanical flexibility and compact design make it especially effective in retrofit upgrades and space-limited machinery layouts.
Key Advantages
◆ Optimized for Restricted Installation Space
Designed specifically for tight-clearance machinery where traditional probes cannot be installed.
◆ Reduced Side-View Interference
NSv architecture improves signal stability near metallic structures.
◆ High-Accuracy Non-Contact Measurement
Provides reliable shaft vibration and displacement data without mechanical wear.
◆ Rugged Industrial Construction
Stainless steel body ensures durability in harsh operating environments.
◆ Stable Signal Transmission
75 Ω coaxial cable supports low-noise, long-term measurement integrity.
◆ Predictive Maintenance Enablement
Supports early detection of mechanical issues to prevent unexpected downtime.
◆ Retrofit-Friendly Design
Widely used in modernization projects for legacy rotating equipment.
Technical FAQs
Q1: What does this probe measure?
It measures shaft vibration and radial displacement without physical contact.
Q2: What does NSv mean?
NSv stands for Narrow Side View, designed to reduce interference from surrounding metal structures.
Q3: What does “07” indicate in this model?
It represents a 70 mm probe case length configuration.
Q4: What is the cable length?
This configuration includes a 1.0-meter integrated coaxial cable.
Q5: What is the thread standard?
It uses an M8 × 1 metric thread.
Q6: Is it suitable for compressors and turbines?
Yes, it is widely used in both compressor and turbine monitoring systems.
Q7: Can it be used in retrofit projects?
Yes, its compact design makes it ideal for equipment upgrades.
Q8: Are NSv components interchangeable?
No, probe, cable, and Proximitor sensor must be matched as a system.
Q9: What maintenance is required?
Regular inspection of cable integrity, mounting stability, and gap verification.
Q10: What industries use it most?
Oil & gas, petrochemical, power generation, refrigeration, and industrial manufacturing.
