Advanced Compact Sensing for Reliable Machine Health Monitoring

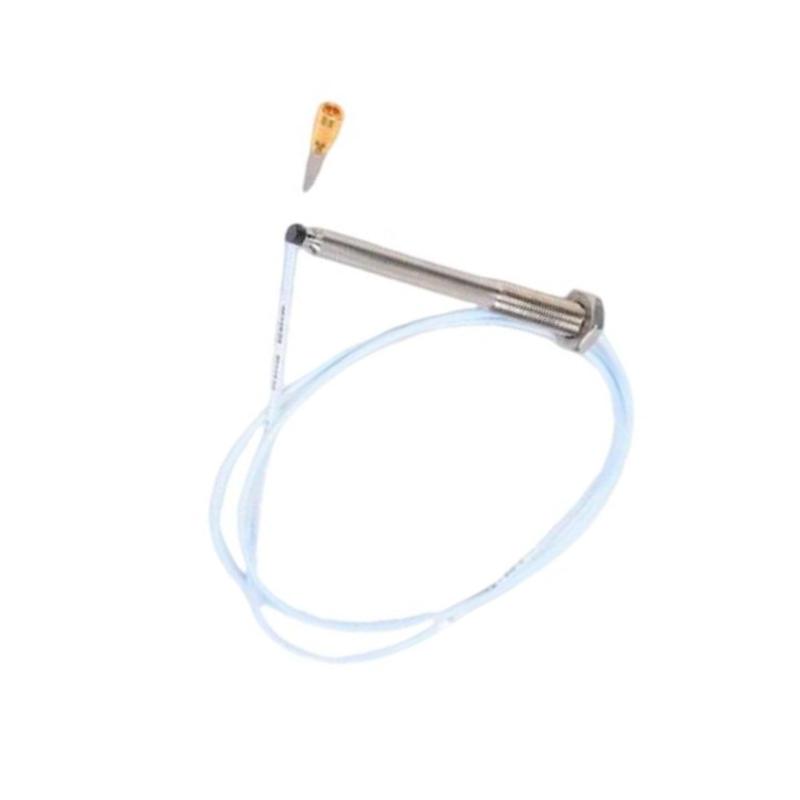

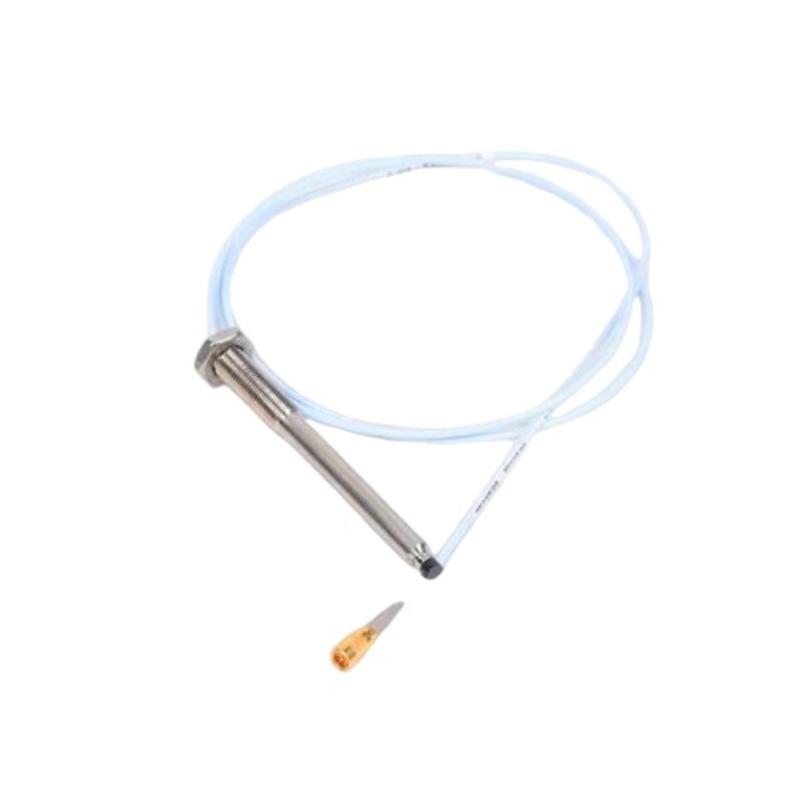

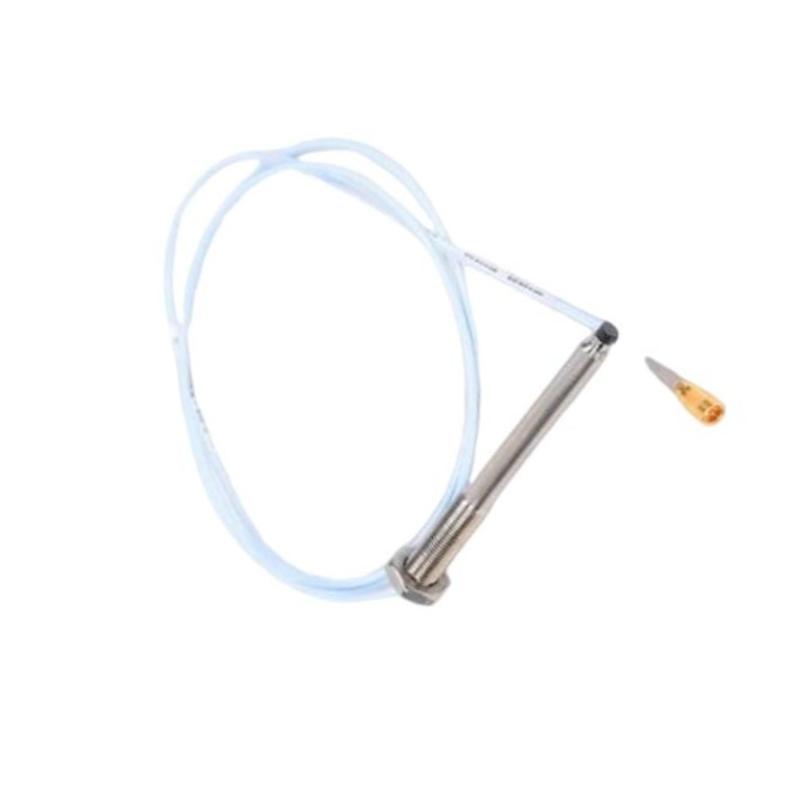

The Bently Nevada 330903-00-02-10-02-00 3300 NSv Proximity Probe is a compact non-contact sensor specifically engineered for machinery protection systems operating in space-constrained environments. As part of the highly trusted 3300 NSv (Narrow Side View) series, this probe delivers accurate shaft vibration and position measurements while minimizing interference from surrounding metal components.
Its optimized design makes it an excellent choice for OEM equipment, retrofit projects, and high-speed rotating machinery where traditional proximity probes may be difficult to install. Built for long-term industrial operation, this probe supports predictive maintenance programs that improve equipment availability, reduce maintenance costs, and enhance overall plant productivity.
Engineering Data & Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330903-00-02-10-02-00 |
| Product Type | 3300 NSv Proximity Probe |
| Product Family | 3300 NSv |
| Measurement Technology | Eddy Current Non-Contact Sensing |
| Thread Type | M8 × 1 Metric Thread |
| Probe Configuration | Standard Metric Probe |
| Unthreaded Length | 0 mm |
| Overall Case Length | 20 mm |
| Total Cable Length | 1.0 m |
| Connector Type | Miniature ClickLoc Connector |
| Cable Type | 75 Ω FEP Insulated Coaxial Cable |
| Probe Housing Material | AISI 304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Frequency Response | 0 Hz to 10 kHz |
| Recommended Gap Setting | 1.0 mm |
| Operating Temperature | -52°C to +177°C |
| Installation Method | Threaded Mounting |
| Dimensions | 20 mm probe body + 1.0 m cable assembly |
| Approximate Weight | 0.14 kg |
Common Industrial Applications
This compact probe is widely utilized in industries requiring precise machine condition monitoring.
Typical applications include:
-
Centrifugal compressors
-
Turbo-expanders
-
Industrial refrigeration systems
-
Air separation units
-
Compact gas turbines
-
High-speed process pumps
-
Small steam turbines
-
OEM packaged equipment
-
Petrochemical processing machinery
-
Predictive maintenance systems
Product Benefits
◆ Optimized Narrow Side View Design
Reduces measurement interference from nearby metallic surfaces.
◆ Excellent Space Efficiency
Perfect for machinery with tight installation clearances.
◆ Accurate Real-Time Monitoring
Provides dependable shaft vibration and shaft position data.
◆ Rugged Industrial Construction
304 stainless steel housing offers excellent durability and corrosion resistance.
◆ Supports Predictive Maintenance Programs
Helps identify machine abnormalities before failures occur.
◆ Stable Signal Transmission
75 Ω cable architecture ensures reliable performance.
◆ Long Operational Lifespan
Engineered for demanding 24/7 industrial environments.
Technical FAQs
Q1: What is the main purpose of this proximity probe?
It continuously measures shaft vibration and shaft displacement without physical contact.
Q2: What does NSv mean?
NSv stands for Narrow Side View, which minimizes side interference from nearby metal structures.
Q3: Is this a metric probe?
Yes. The 330903 series utilizes an M8 × 1 metric thread design.
Q4: What does the "02" designation indicate?
It represents a 20 mm overall probe body length.
Q5: How long is the cable?
This configuration includes a 1.0-meter integrated cable.
Q6: Which industries commonly use this product?
Oil and gas, petrochemical, power generation, refrigeration, and industrial manufacturing industries.
Q7: Can it be installed in compact machinery?
Yes. It was specifically developed for equipment with restricted installation spaces.
Q8: Can components from different systems be mixed?
No. The probe, extension cable, and Proximitor sensor must always be properly matched.
Q9: What maintenance is recommended?
Inspect cable integrity, verify mounting security, and periodically check overall system performance.
Q10: Is this probe suitable for continuous operation?
Yes. It is designed for long-term, 24/7 industrial monitoring applications.
