Compact Reliability for Precision Machinery Monitoring

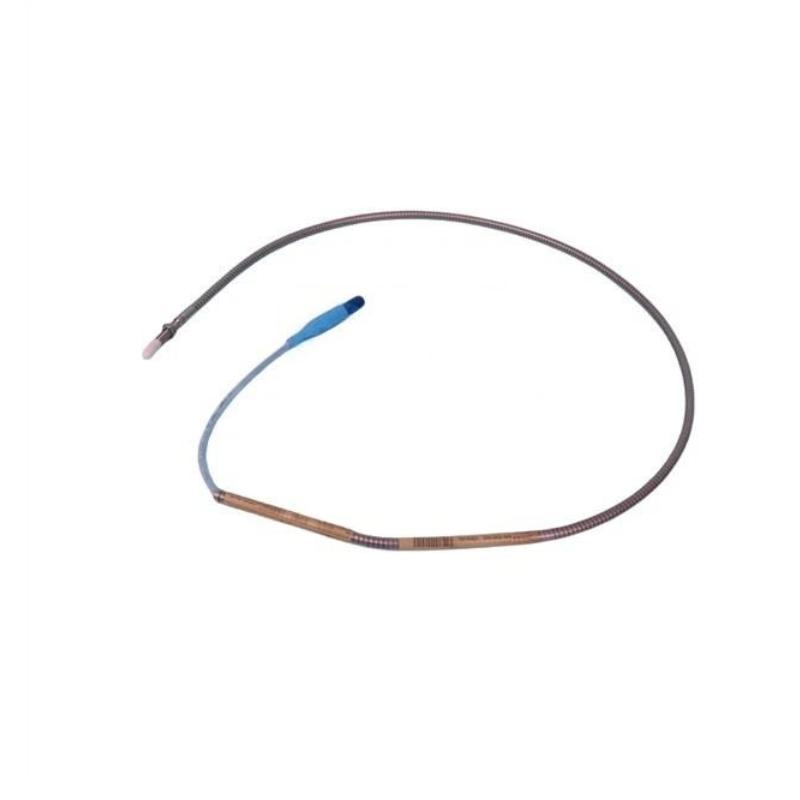

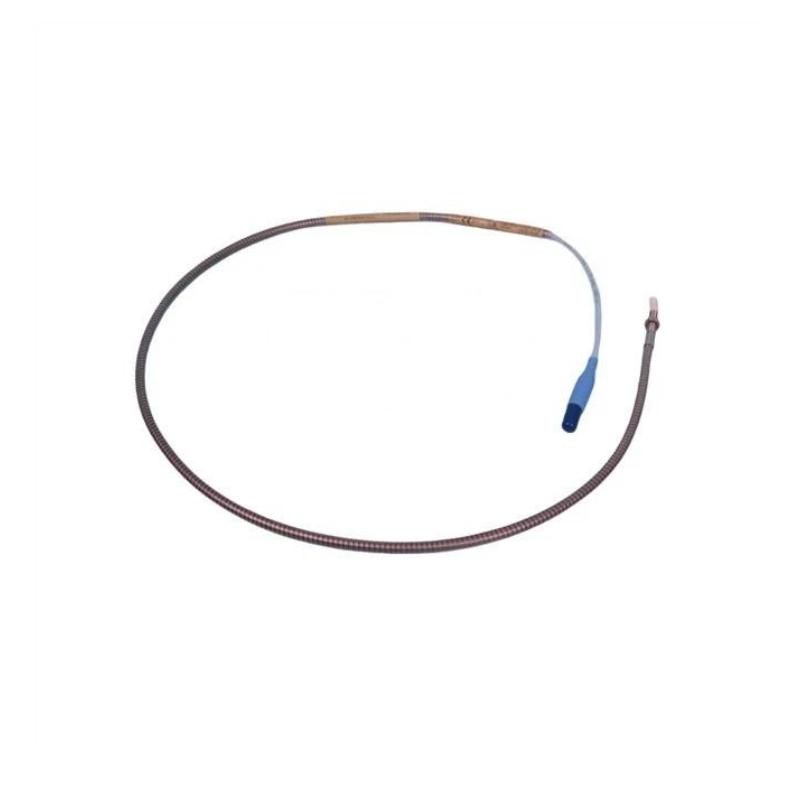

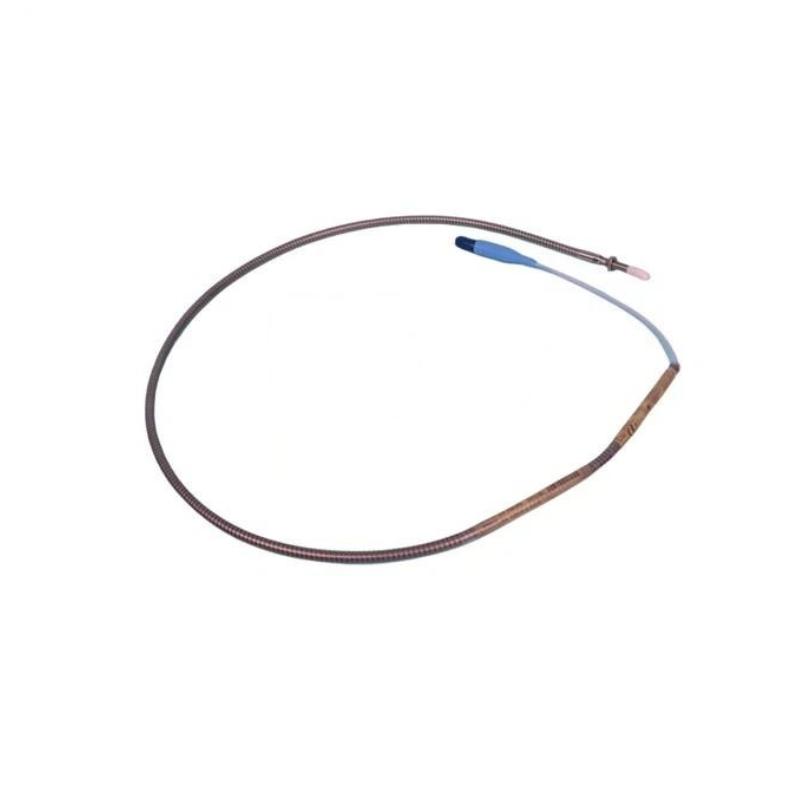

The Bently Nevada 330902-00-43-10-01-00 3300 NSv Proximity Probe is a compact eddy-current sensor engineered for continuous vibration and shaft position monitoring in applications where installation space is limited. As part of the trusted 3300 NSv (Narrow Side View) family, this probe is specifically designed to minimize side-view interference from surrounding metal components while delivering stable and accurate measurements. The NSv series is commonly deployed on small shafts, compact compressors, and machinery with restricted clearances.
Designed for long-term industrial operation, this probe supports predictive maintenance initiatives, helping operators identify abnormalities before they become costly failures. Its rugged construction, compact footprint, and dependable signal performance make it a valuable asset for modern machinery protection systems.
Engineering Specifications
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330902-00-43-10-01-00 |
| Product Type | 3300 NSv Proximity Probe |
| Measurement Technology | Eddy Current Non-Contact Sensing |
| Product Family | 3300 NSv |
| Thread Size | 1/4-28 UNF |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 4.3 in (109.2 mm) |
| Total Cable Length | 1.0 m (39 in) |
| Connector Type | Miniature Coaxial ClickLoc Connector with Connector Protector |
| Cable Construction | 75 Ω FEP Insulated Coaxial Cable |
| Housing Material | AISI 304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Recommended Probe Gap | 1.0 mm (40 mils) |
| Operating Temperature | -52°C to +177°C |
| Installation Method | Threaded Mounting |
| Dimensions | 109.2 mm probe body + 1.0 m cable assembly |
| Approximate Weight | 0.16 kg |
Industrial Deployment Scenarios
This probe is widely installed in machinery protection systems for:
-
Centrifugal compressors
-
Process gas compressors
-
Industrial refrigeration compressors
-
Turbo-expanders
-
Small gas turbines
-
High-speed pumps
-
Air separation units
-
OEM skid-mounted systems
-
Condition monitoring platforms
-
Continuous predictive maintenance programs
Key Advantages
◆ Optimized Narrow Side View Design
Specially engineered to reduce interference from nearby metallic structures during installation.
◆ Ideal for Compact Machinery
Designed for equipment with restricted mechanical clearances and smaller shaft diameters.
◆ High Signal Integrity
The 75 Ω coaxial cable architecture helps maintain accurate measurement performance.
◆ Rugged Industrial Durability
304 stainless steel housing offers excellent corrosion resistance and long operational life.
◆ Supports Predictive Maintenance
Continuous machine health monitoring helps reduce unexpected downtime and maintenance costs.
◆ Simplified Retrofit Integration
Compact dimensions make modernization projects faster and more efficient.
◆ Dependable 24/7 Operation
Built to withstand demanding industrial environments and continuous monitoring applications.
Technical FAQs
Q1: What is the primary purpose of this probe?
It continuously measures shaft vibration and shaft position without physically contacting rotating components.
Q2: What does NSv stand for?
NSv means Narrow Side View, a design that minimizes sensitivity to nearby metal surfaces.
Q3: What type of machinery is it designed for?
It is ideal for compact compressors, turbines, pumps, and equipment with limited installation space.
Q4: What does the "43" configuration represent?
It designates a 4.3-inch overall probe case length.
Q5: What cable length is included?
This model includes a factory-installed 1.0-meter cable assembly.
Q6: Is this probe suitable for hazardous environments?
Certain approvals are available depending on the complete system configuration and installation requirements.
Q7: Can transducer components be mixed between systems?
No. The probe, extension cable, and Proximitor sensor must always be properly matched. Experienced users consistently emphasize that NSv components are not universally interchangeable.
Q8: What installation practice is most important?
Ensure the probe is properly aligned to the rotating target and not sensing adjacent mounting hardware.
Q9: What maintenance is recommended?
Inspect cable integrity, verify probe gap settings, and confirm secure mounting during routine maintenance.
Q10: Which industries commonly use this product?
Oil and gas, petrochemical, power generation, manufacturing, refrigeration, and water treatment industries frequently deploy this technology.
