Built for Precision Monitoring in Space-Constrained Industrial Environments

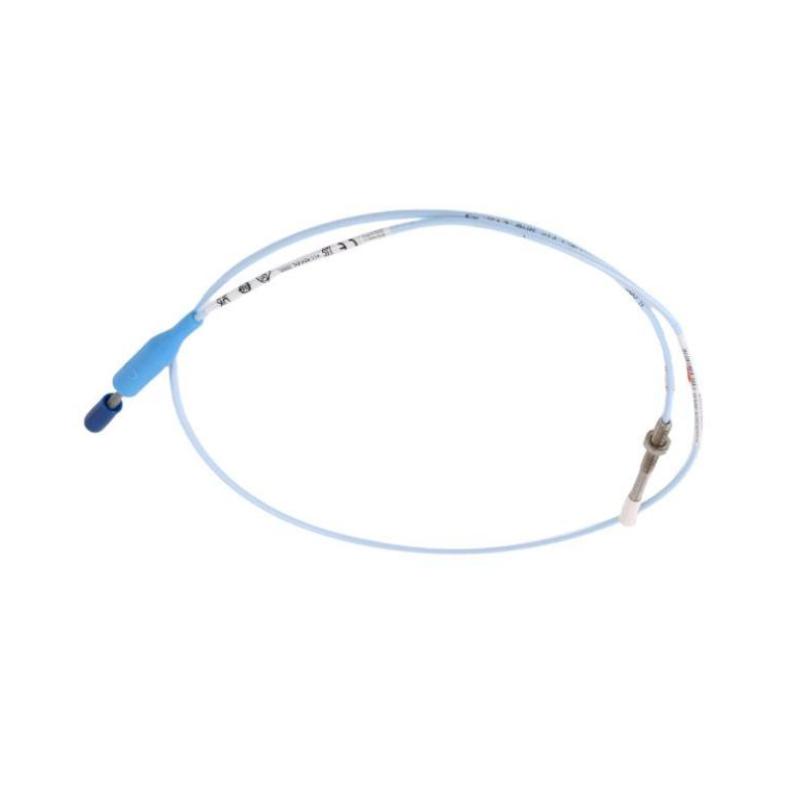

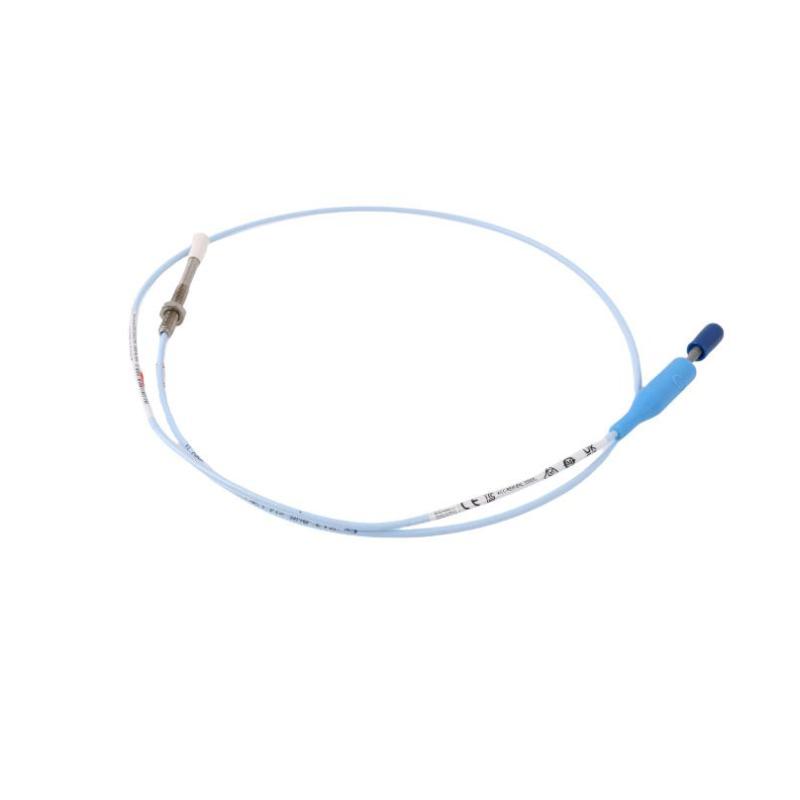

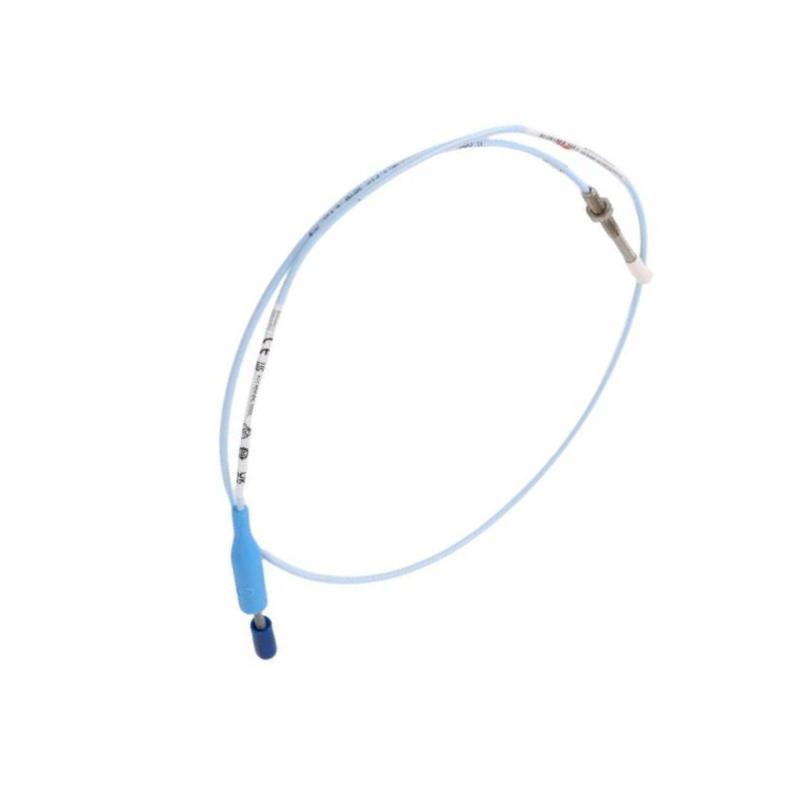

The Bently Nevada 330901-22-40-10-10-01 3300 NSv Proximity Probe is a compact, high-performance non-contact sensing solution developed for continuous machinery protection and condition monitoring applications. As part of the renowned 3300 NSv (Narrow Side View) family, this probe is specifically engineered for equipment with limited installation space where conventional proximity probes may encounter interference from surrounding metal structures.
Designed for reliability, accuracy, and long-term operational stability, this industrial-grade probe supports predictive maintenance programs across multiple industries. It enables maintenance teams to detect abnormal vibration patterns early, improve machine availability, and reduce unexpected shutdown risks. The NSv architecture is particularly effective for small shafts, compact turbines, compressors, and OEM equipment packages.
Technical Data Overview
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330901-22-40-10-10-01 |
| Product Type | 3300 NSv Proximity Probe |
| Product Family | 3300 NSv |
| Measurement Technology | Eddy Current Non-Contact Sensing |
| Unthreaded Length | 2.2 in (55.9 mm) |
| Overall Case Length | 4.0 in (101.6 mm) |
| Total Cable Length | 1.0 m (39 in) |
| Connector Configuration | Miniature ClickLoc Connector |
| Cable Type | 75 Ω FEP Insulated Coaxial Cable |
| Housing Material | AISI 304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Operating Temperature | -52°C to +177°C |
| Installation Type | Threaded Mounting |
| Dimensions | 101.6 mm probe body + 1.0 m cable assembly |
| Approximate Weight | 0.15 kg |
Industrial Systems That Benefit from This Probe
This model is commonly integrated into:
-
Turbo-expanders
-
Small centrifugal compressors
-
Industrial refrigeration compressors
-
Air separation units
-
Compact gas turbines
-
High-speed process pumps
-
OEM skid-mounted equipment
-
Petrochemical processing systems
-
Machinery protection systems
-
Predictive maintenance platforms
Why This Probe Is Widely Trusted
◆ Optimized Narrow Side View Technology
The NSv architecture reduces interference from nearby metallic structures, allowing more flexible installation in restricted spaces.
◆ Exceptional Measurement Stability
Provides dependable shaft vibration and shaft position data for critical rotating assets.
◆ Durable Industrial Construction
AISI 304 stainless steel housing delivers excellent corrosion resistance and mechanical durability.
◆ Supports Predictive Maintenance
Continuous monitoring helps maintenance teams identify developing faults before they become costly failures.
◆ Compact Footprint for Retrofit Projects
Its space-saving design makes upgrades and modernization projects significantly easier.
◆ Reliable Signal Transmission
The 75 Ω FEP cable construction maintains stable signal quality in demanding environments.
◆ Long Service Life
Engineered for continuous industrial operation with minimal maintenance requirements.
Technical FAQs
Q1: What is the primary function of this probe?
It continuously measures shaft vibration and shaft displacement without physically touching rotating components.
Q2: What does NSv mean?
NSv stands for Narrow Side View, a design that minimizes sensitivity to nearby metallic surfaces.
Q3: Is this probe suitable for compact machinery?
Yes. The NSv series was specifically developed for installations where standard probes may not fit properly.
Q4: What does the "22" configuration indicate?
It designates a 2.2-inch unthreaded probe length.
Q5: What does the "40" configuration represent?
It refers to a 4.0-inch overall probe case length.
Q6: What cable length is included?
This configuration includes a 1.0-meter cable assembly.
Q7: Can different NSv components be mixed together?
No. The probe, extension cable, and Proximitor sensor must always be properly matched as a complete transducer system.
Q8: Which industries commonly deploy this product?
Oil and gas, petrochemical, power generation, refrigeration, and industrial manufacturing industries frequently utilize this technology.
Q9: What installation advice is most important?
Ensure the probe is correctly positioned relative to the shaft and not reading nearby mounting hardware.
Q10: What routine maintenance is recommended?
Inspect cable integrity, verify probe gaps, confirm mounting security, and periodically validate system performance.
