Technical FAQs

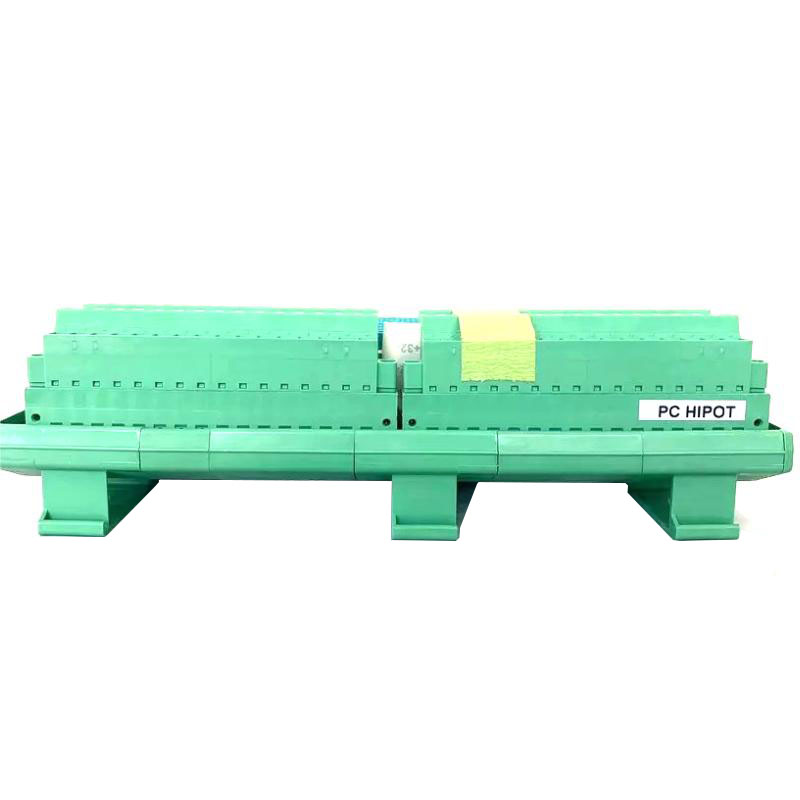

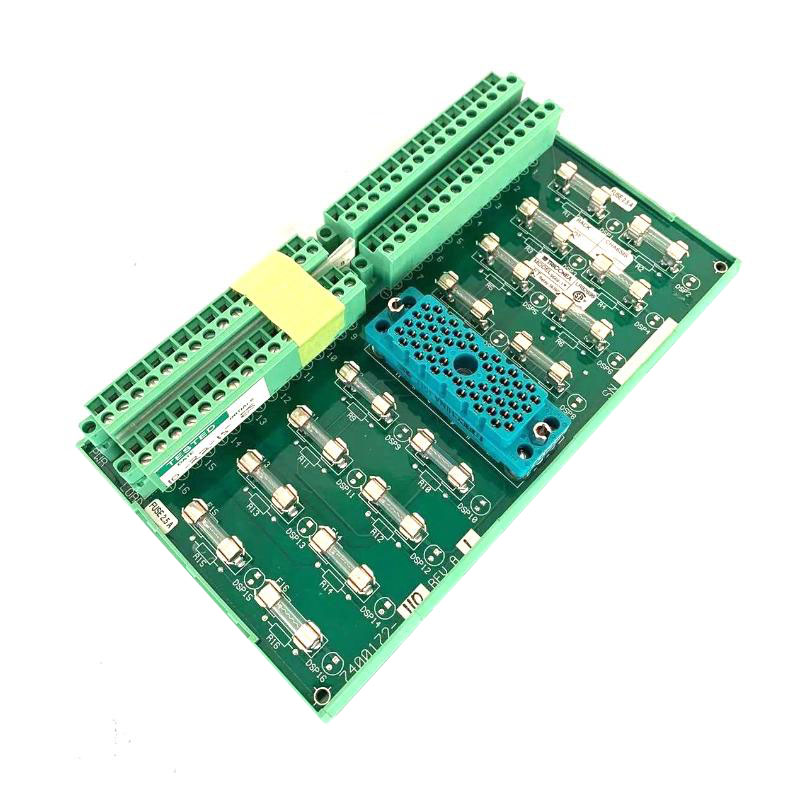

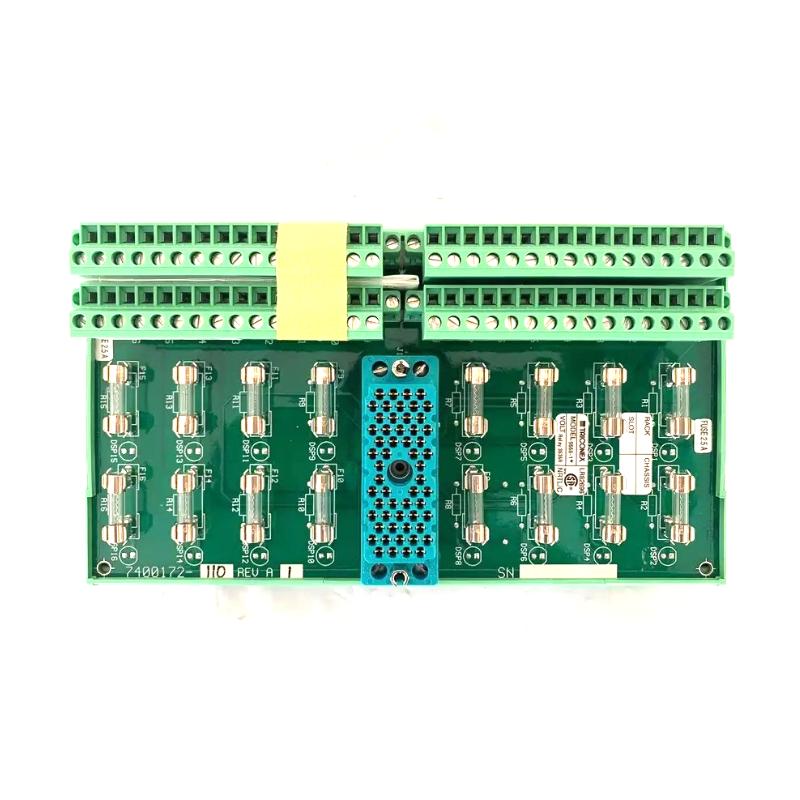

1. What is the primary function of the Triconex 9668-1 Terminal Board?

   • It connects field devices to Triconex safety systems, providing reliable signal distribution in safety applications.

2. How do I configure the input and output connections?

   • The board uses configurable terminal blocks, allowing for flexible I/O setup according to system needs.

3. How many I/O points can the terminal board support?

   • The board supports a range of I/O configurations, depending on the specific requirements of the installation.

4. Can the board be used in redundancy configurations?

   • Yes, it is designed to be used in redundant configurations, ensuring continuous operation in case of system failure.

5. What safety certifications does the terminal board have?

   • The terminal board is certified by UL, CE, and CSA, ensuring compliance with international safety standards.

6. How does the board handle grounding and shielding?

   • The terminal board features built-in grounding and EMI shielding to ensure stable and reliable signal transmission.

7. What protection features are built into the board?

   • Overcurrent protection and transient suppression safeguard the terminal board against electrical faults and surges.

8. Can the terminal board be used in high EMI environments?

   • Yes, its robust shielding allows it to operate effectively in environments with high electromagnetic interference.

9. What diagnostic features does the terminal board support?

   • The terminal board supports diagnostics for fault detection, such as open connections and voltage inconsistencies.

10. Is there a recommended maintenance schedule for the terminal board?

    • Routine checks for connection integrity and performance are generally sufficient for most installations.
