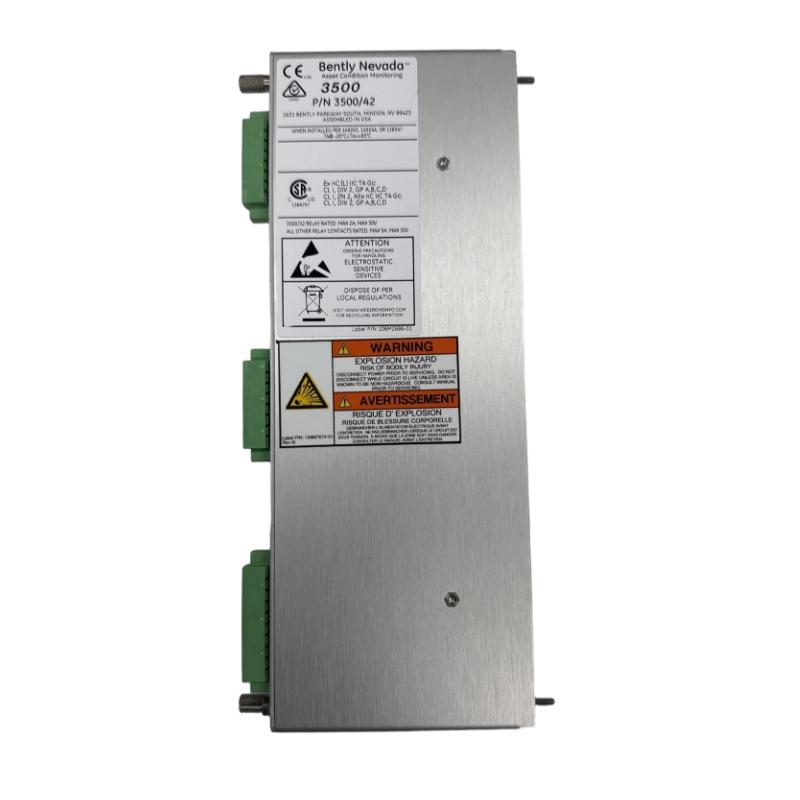

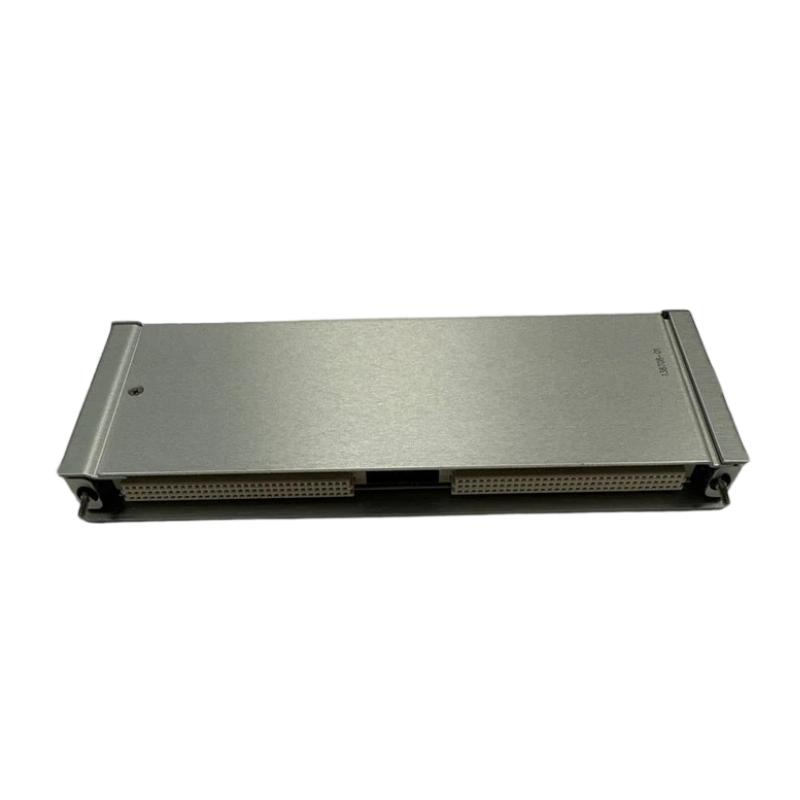

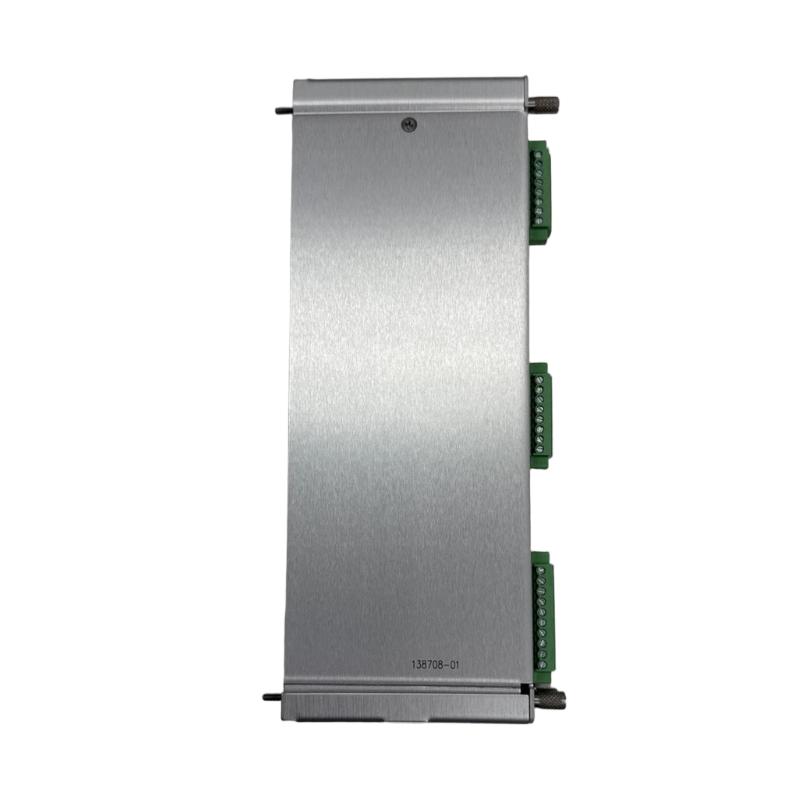

Bently Nevada 3500/42 138700-01 Monitor Module

Name: Bently Nevada 3500/42 138700-01 Monitor Module
Brand: Bently Nevada PLC
SKU: 224
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Bently Nevada PLC
Item No.:3500/42 138700-01
Product Origin:USA
Product Dimensions:241.3 x 24.4 x 163.1mm
Product Weight:0.46 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The Bently Nevada 3500/42 (138700-01) is a high-precision vibration monitoring module designed for integration into the 3500 Series machinery protection system. From a reliability-engineer perspective, this module provides continuous real-time monitoring of critical rotating equipment, delivering early alerts for mechanical issues to support predictive maintenance and minimize unplanned downtime in industrial environments.

Technical Specifications

Parameter	Description
Model Number	3500/42
Part Number	138700-01
Module Type	Vibration Monitor Module
Function	Monitors vibration in rotating machinery and provides configurable alarm/trip outputs
Compatibility	Integrates with Bently Nevada 3500 Series racks
Signal Inputs	Accepts velocity, acceleration, or displacement transducers
Alarm/Trip Outputs	Configurable via system software according to threshold settings
Operating Temperature	0 °C to 70 °C
Storage Temperature	–40 °C to 85 °C
Dimensions	241.3 × 24.4 × 163.1 mm (H × W × D)
Weight	0.46 kg
Mounting	19-inch rack compatible with 3500 Series chassis

Applications

Continuous monitoring of turbines, compressors, pumps, and other critical rotating machinery
Early detection of imbalance, misalignment, bearing defects, and mechanical anomalies
Triggering alarm and trip signals to prevent equipment damage or failure
Supporting predictive maintenance and reliability engineering programs
Integration into plant-wide asset management and monitoring systems

Advantages

Compact and lightweight — 0.46 kg for easy installation and handling
Reliable industrial-grade performance — suitable for continuous 24/7 operation
High-precision monitoring — early detection of vibration anomalies for proactive maintenance
Configurable alarms and trips — thresholds can be tailored to specific machinery requirements
Seamless integration — fits directly into 3500 Series racks without modification

Technical FAQs

What is the primary function of this module?
Monitors vibration in rotating machinery and provides configurable alarm and trip outputs.
Which types of sensors are supported?
Compatible with velocity, acceleration, and displacement transducers for 3500 Series systems.
What is the operating temperature range?
0 °C to 70 °C; storage temperature –40 °C to 85 °C.
Is it compatible with other 3500 Series modules?
Yes, it integrates seamlessly with other modules in the 3500 Series rack.
How is the module mounted?
Standard 19-inch rack mounting in a 3500 Series chassis.
How are alarm and trip thresholds configured?
Using 3500 Series software, thresholds and outputs can be set per equipment needs.
Is it suitable for continuous operation?
Yes, designed for 24/7 industrial monitoring.
What happens when vibration exceeds alarm levels?
Alarm signals are triggered, and trip outputs may engage if configured.
What is the weight of the module?
0.46 kg, lightweight and easy to handle.
Which industries commonly use this module?
Power generation, oil & gas, petrochemical, chemical, and other facilities with critical rotating machinery.
