Optimized Four-Channel Rotational Reference for Hazardous Area Applications

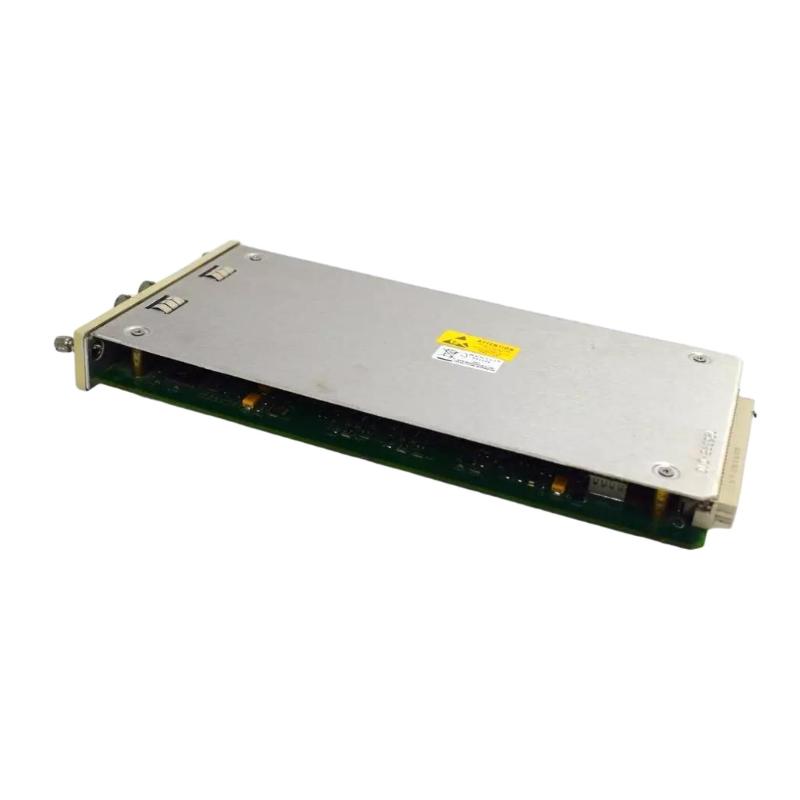

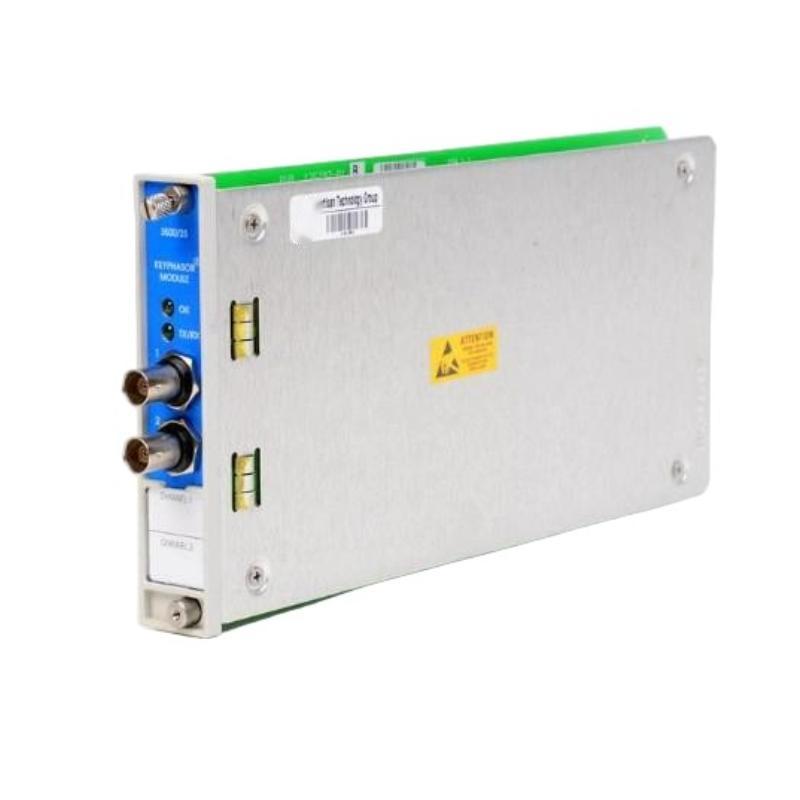

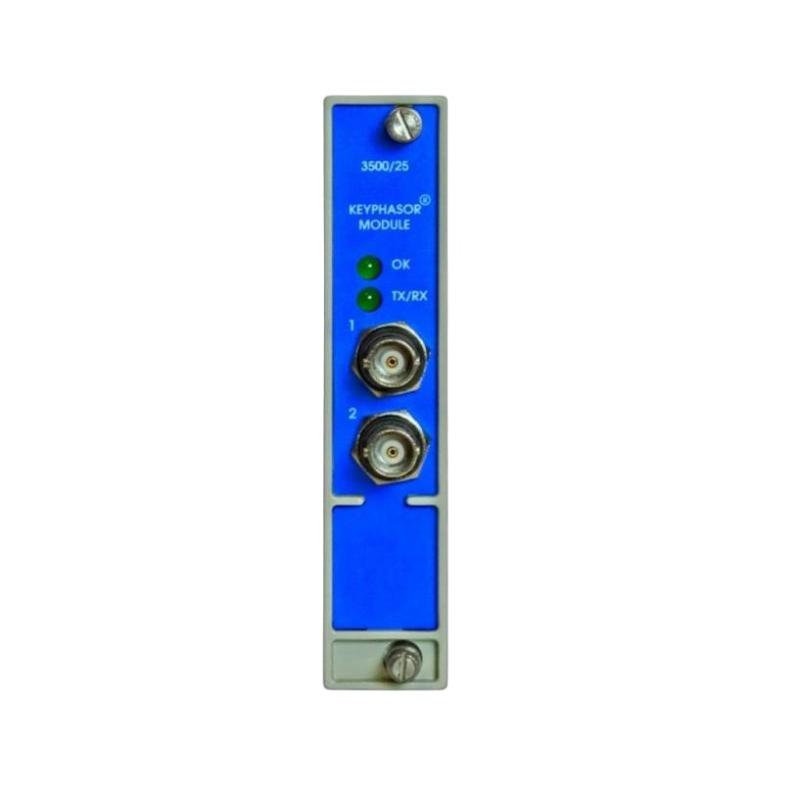

The Bently Nevada 3500/25-02-01-02 Enhanced Keyphasor Module is an advanced rotational reference solution engineered for the Bently Nevada 3500 Machinery Protection System. This configuration consists of two half-height, two-channel Enhanced Keyphasor modules, delivering a total of four Keyphasor input channels for sophisticated rotating machinery protection systems. The module processes signals from proximity probes or magnetic pickup transducers, converting them into precise digital Keyphasor signals used for shaft speed measurement, phase reference, and synchronized vibration analysis.
The 02-01-02 configuration combines non-isolated I/O modules with internal terminations and ATEX / IECEx / CSA (Class I, Zone 2) certification, making it an ideal solution for international hazardous-area installations. With enhanced signal processing, field-upgradable firmware, and full compatibility with legacy 3500 systems, this module helps maximize machinery reliability while supporting predictive maintenance strategies.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model | 3500/25-02-01-02 |
| Product Type | Enhanced Keyphasor Module |
| Series | 3500 Machinery Protection System |
| Configuration | 02-01-02 |
| Module Quantity | Two Half-Height Modules |
| Total Channels | 4 Keyphasor Input Channels |
| I/O Module Type | Non-Isolated I/O with Internal Terminations |
| Supported Sensors | Proximity Probes and Magnetic Pickup Sensors |
| Primary Function | Shaft Speed, Phase Reference & Rotational Timing |
| Buffered Outputs | Front and Rear Buffered Outputs |
| Firmware | Field Upgradeable |
| Agency Approval | ATEX / IECEx / CSA (Class I, Zone 2) |
| Installation | Half-Height Slots in 3500 Rack |
| Main Module Dimensions | 119.9 × 24.4 × 256.5 mm (each module) |
| Main Module Weight | Approximately 0.34 kg (each module) |
| I/O Module Dimensions | 241.3 × 24.4 × 103.1 mm |
| I/O Module Weight | Approximately 0.46 kg |
Typical Applications
Designed for continuous machinery protection and precision speed reference, the 3500/25-02-01-02 is widely used across industries operating critical rotating assets.
Typical applications include:
-
Steam turbine monitoring
-
Gas turbine control systems
-
Multi-stage centrifugal compressors
-
Industrial generators
-
High-speed electric motors
-
Gearbox diagnostics
-
Combined-cycle power plants
-
Offshore oil and gas platforms
-
Petrochemical processing facilities
-
Heavy industrial manufacturing
Core Advantages
Built for demanding industrial environments, the 3500/25-02-01-02 provides dependable rotational reference signals while supporting complex machinery monitoring architectures.
Key benefits include:
-
Four Keyphasor channels through dual two-channel modules
-
Accurate shaft speed and phase reference measurements
-
Internal termination design reduces installation complexity
-
Compatible with proximity probes and magnetic pickup sensors
-
Advanced digital signal processing for improved diagnostics
-
Field-upgradable firmware protects long-term investment
-
Seamless integration with existing 3500 monitoring systems
-
International hazardous-area certification for Zone 2 installations
-
Compact modular design optimizes rack utilization
-
Supports predictive maintenance and maximizes equipment uptime
Technical FAQs
1. What is the function of the 3500/25-02-01-02 Enhanced Keyphasor Module?
It generates precise digital Keyphasor signals used for shaft speed measurement, phase reference, and synchronized vibration monitoring throughout the 3500 Machinery Protection System.
2. What does the "02" channel option indicate?
The 02 configuration includes two half-height Enhanced Keyphasor modules, providing a total of four independent Keyphasor channels.
3. What does the "01" I/O option represent?
It specifies a non-isolated I/O module with internal terminations, allowing direct field wiring to the rear I/O assembly inside the rack.
4. What does the agency approval option "02" mean?
The 02 approval option indicates compliance with ATEX, IECEx, and CSA Class I, Zone 2 requirements for hazardous industrial environments.
5. Which sensors are supported?
The module accepts input from Bently Nevada proximity probes and compatible magnetic pickup sensors, depending on the selected application.
6. Is this module compatible with previous 3500 Keyphasor systems?
Yes. The Enhanced Keyphasor Module maintains complete backward compatibility with earlier 3500 Keyphasor modules, simplifying upgrades and replacements.
7. Does the module support firmware updates?
Yes. The firmware is field upgradeable, allowing future feature enhancements without replacing the hardware.
8. What are the module dimensions and weight?
Each Enhanced Keyphasor module measures 119.9 × 24.4 × 256.5 mm and weighs approximately 0.34 kg. The corresponding internal termination I/O module measures 241.3 × 24.4 × 103.1 mm and weighs approximately 0.46 kg.
9. Why are Keyphasor signals important?
Keyphasor signals provide precise rotational timing references that enable accurate speed calculation, phase analysis, synchronous vibration monitoring, and advanced machinery diagnostics.
10. Why choose the Bently Nevada 3500/25-02-01-02 Enhanced Keyphasor Module?
Its four-channel architecture, international hazardous-area certification, high-precision signal processing, and seamless integration with the 3500 platform make it a dependable solution for protecting mission-critical rotating equipment.
