Precision Rotational Reference for Advanced Machinery Protection

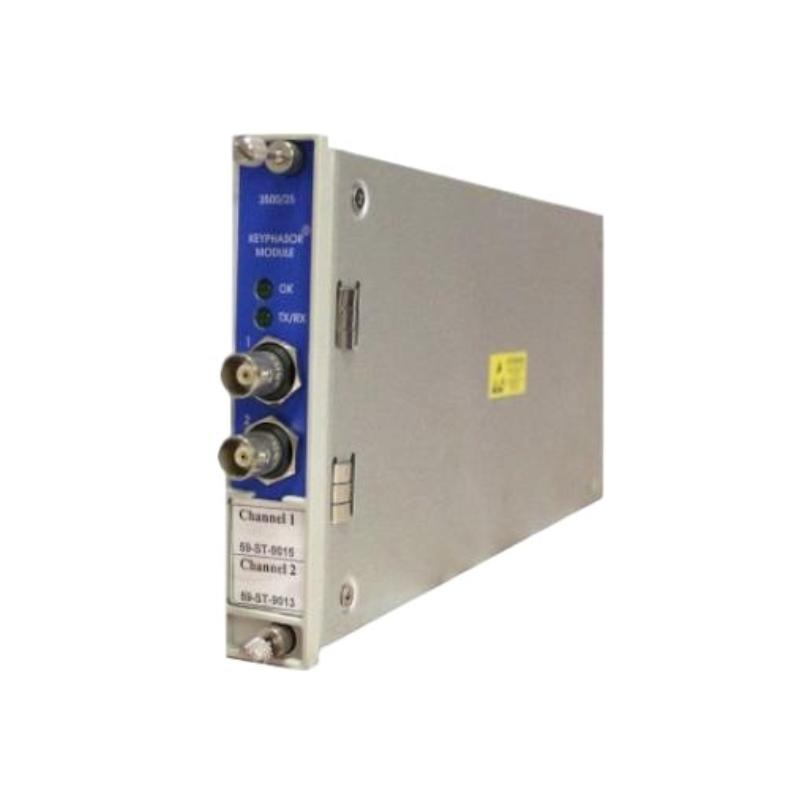

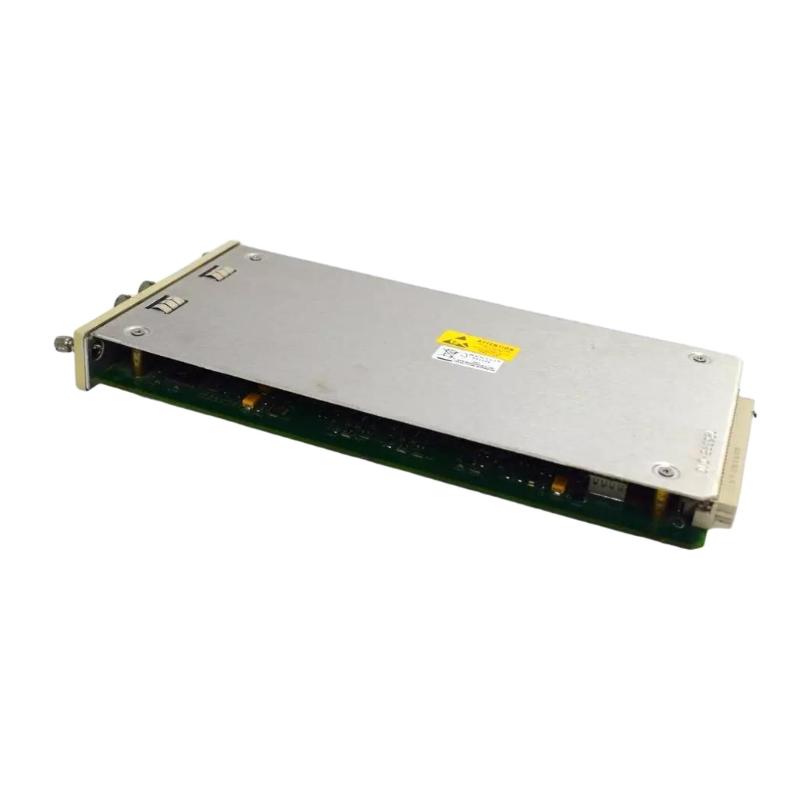

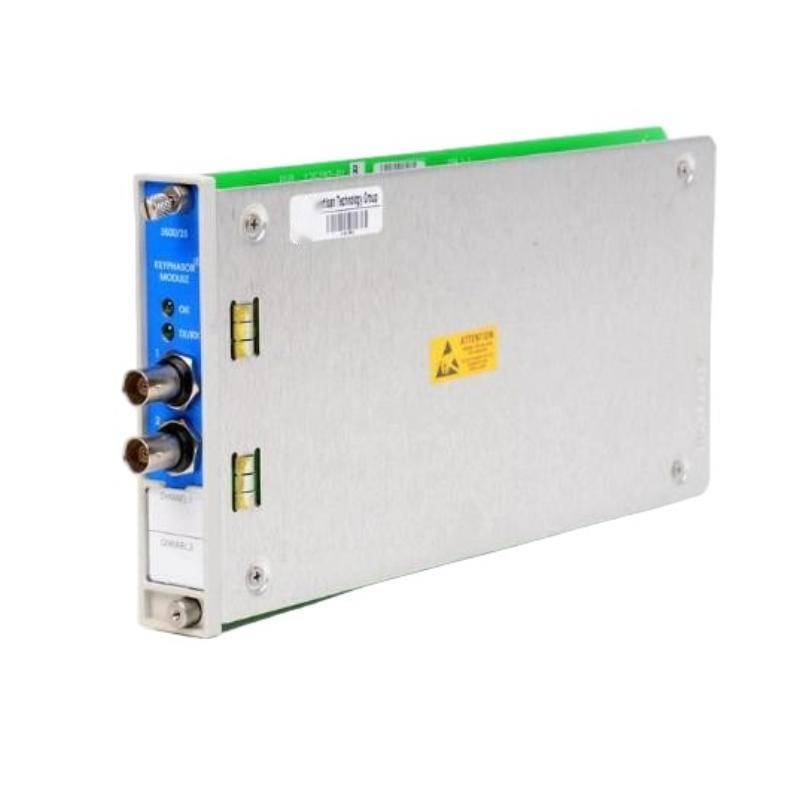

The Bently Nevada 3500/25-01-00 Enhanced Keyphasor Module is a high-performance two-channel monitoring module designed to provide accurate shaft speed and phase reference signals for the Bently Nevada 3500 Machinery Protection System. By receiving input signals from proximity probes or magnetic pickups, the module converts them into precise digital Keyphasor signals that synchronize vibration, phase, and rotational measurements across the entire monitoring system. It is an essential component for advanced condition monitoring and machinery diagnostics in critical industrial applications.
Designed as an upgraded version of the original 3500 Keyphasor Module, the Enhanced Keyphasor Module delivers expanded signal processing capabilities while maintaining full backward compatibility with existing 3500 installations. Its dependable performance, field-upgradable firmware, and flexible configuration make it an excellent choice for modern predictive maintenance programs.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model | 3500/25-01-00 |
| Product Type | Enhanced Keyphasor Module |
| Series | 3500 Machinery Protection System |
| Number of Channels | 2 Independent Channels |
| Module Size | Half-Height Module |
| Input Signals | Proximity Probes or Magnetic Pickups |
| Primary Function | Shaft Speed & Phase Reference |
| Signal Processing | Digital Keyphasor Signal Generation |
| Maximum System Capacity | Up to 4 Keyphasor Signals (8 in Paired Configuration) |
| Firmware | Field Upgradeable |
| Buffered Outputs | Front and Rear Buffered Outputs |
| Installation | 3500 Rack Half-Height Slot |
| Main Module Dimensions | 119.9 × 24.4 × 256.5 mm |
| Main Module Weight | Approximately 0.34 kg |
| I/O Module Dimensions | 241.3 × 24.4 × 103.1 mm |
| I/O Module Weight | Approximately 0.46 kg |
Industrial Applications
The 3500/25-01-00 Enhanced Keyphasor Module is widely used in rotating machinery monitoring systems where precise shaft speed and phase measurements are critical for machinery protection and diagnostics.
Typical applications include:
-
Steam turbine monitoring
-
Gas turbine protection
-
Centrifugal compressor diagnostics
-
Large industrial motors
-
Pumps and blowers
-
Gearbox condition monitoring
-
Power generation facilities
-
Oil and gas processing plants
-
Petrochemical refineries
-
Heavy industrial manufacturing
Product Advantages
The 3500/25-01-00 is engineered to provide stable and highly accurate rotational reference signals, enabling advanced machinery analysis and improving overall equipment reliability.
Key advantages include:
-
Two-channel high-precision Keyphasor monitoring
-
Accurate shaft speed and phase reference measurements
-
Supports both proximity probes and magnetic pickup sensors
-
Enhanced signal processing for improved diagnostic performance
-
Backward compatible with legacy 3500 systems
-
Field-upgradable firmware for future flexibility
-
Buffered outputs simplify external diagnostic connections
-
Compact half-height design saves valuable rack space
-
Reliable operation in harsh industrial environments
-
Supports predictive maintenance and asset reliability programs
Technical FAQs
1. What is the primary function of the 3500/25-01-00 Enhanced Keyphasor Module?
It converts signals from proximity probes or magnetic pickups into digital Keyphasor signals that provide accurate shaft speed and phase reference information for the 3500 Machinery Protection System.
2. How many monitoring channels does the module provide?
The module includes two independent Keyphasor input channels for monitoring rotating equipment.
3. Which sensors are compatible with this module?
It accepts input signals from both proximity probes and magnetic pickup sensors, depending on the selected I/O configuration.
4. What is a Keyphasor signal?
A Keyphasor signal is a once-per-turn or multiple-event-per-turn pulse generated from a rotating shaft or gear, providing the timing reference needed for vibration, speed, and phase measurements.
5. Can the module be used in Triple Modular Redundant (TMR) systems?
Yes. For TMR applications, two Enhanced Keyphasor Modules operate together to provide both primary and secondary Keyphasor signals.
6. Is the module compatible with older 3500 Keyphasor installations?
Yes. The Enhanced Keyphasor Module maintains complete backward compatibility in form, fit, and function with previous-generation 3500 Keyphasor modules.
7. Does the module support firmware upgrades?
Yes. The firmware is field upgradeable, allowing future feature enhancements and simplified maintenance.
8. What are the dimensions and weight?
The main module measures 119.9 × 24.4 × 256.5 mm and weighs approximately 0.34 kg. The associated I/O module measures 241.3 × 24.4 × 103.1 mm and weighs approximately 0.46 kg.
9. What are the benefits of using an Enhanced Keyphasor Module?
It provides highly accurate rotational reference signals, improves vibration analysis accuracy, enhances predictive maintenance capabilities, and supports more reliable machinery protection.
10. Why choose the Bently Nevada 3500/25-01-00 Enhanced Keyphasor Module?
Its advanced signal processing, dependable industrial performance, flexible sensor compatibility, and seamless integration with the 3500 Machinery Protection System make it an ideal solution for protecting critical rotating assets.
