Reliable Speed Reference Interface for Critical Rotating Machinery

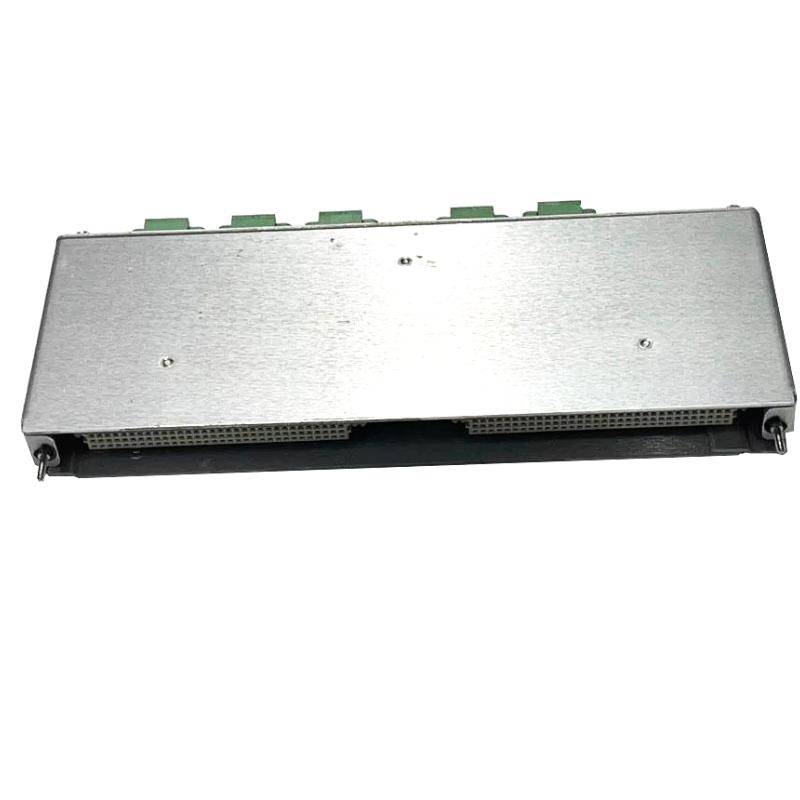

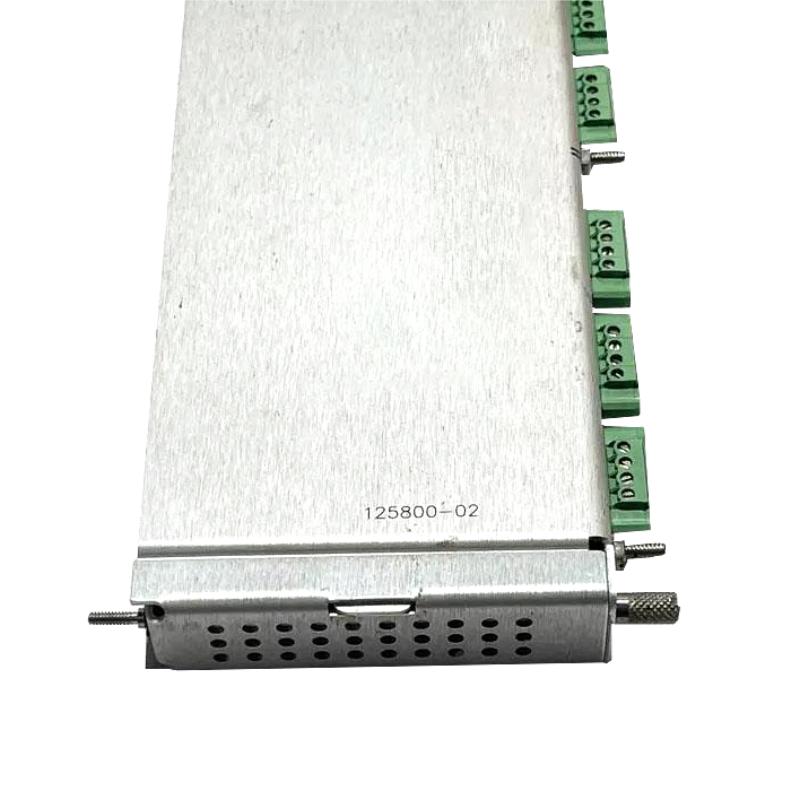

The Bently Nevada 3500/25 125800-02 Isolated Keyphasor I/O Module (Internal Terminations) is a specialized interface module developed for the 3500/25 Enhanced Keyphasor Module within the Bently Nevada 3500 Machinery Protection System. Designed with isolated circuitry and internal terminations, this module is optimized for applications utilizing magnetic pickup sensors, providing dependable signal isolation while delivering precise shaft speed and rotational reference information.
Its isolated design minimizes electrical interference between connected devices, making it particularly suitable for installations where Keyphasor signals are shared with control systems, protection systems, or diagnostic equipment. By ensuring stable signal transmission and accurate timing information, the 125800-02 module enhances the reliability of machinery protection and condition monitoring applications.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model | 3500/25 |
| Part Number | 125800-02 |
| Product Type | Isolated Keyphasor I/O Module |
| Termination Type | Internal Terminations |
| Isolation | Electrical Isolation for Keyphasor Signals |
| Compatible Monitor | Bently Nevada 3500/25 Enhanced Keyphasor Module |
| Primary Application | Magnetic Pickup Inputs |
| Compatible Sensors | Magnetic Pickups, Proximitor® Sensors (with external power supply) |
| Installation | Rear Rack I/O Module |
| Signal Function | Shaft Speed and Phase Reference |
| Main Module Dimensions | 119.9 × 24.4 × 256.5 mm |
| Main Module Weight | Approximately 0.34 kg |
| Operating Environment | Industrial Machinery Protection Systems |
Typical Applications
The 125800-02 Isolated Keyphasor I/O Module is widely used in machinery protection systems where accurate rotational reference signals and electrical isolation are essential.
Typical applications include:
-
Steam turbine monitoring
-
Gas turbine protection
-
Centrifugal compressor control
-
Industrial generator monitoring
-
Large motor speed measurement
-
Gearbox condition monitoring
-
Power generation facilities
-
Oil and gas processing plants
-
Petrochemical refineries
-
Heavy industrial rotating equipment
Key Advantages
Designed for demanding industrial environments, the 125800-02 provides dependable signal conditioning while improving overall system integrity.
Key benefits include:
-
Electrical isolation minimizes signal interference
-
Optimized for magnetic pickup applications
-
Accurate shaft speed and phase reference generation
-
Reliable signal distribution to multiple connected systems
-
Internal termination design simplifies rack installation
-
Fully compatible with the 3500/25 Enhanced Keyphasor Module
-
Stable long-term performance in continuous operation
-
Supports advanced machinery diagnostics
-
Rugged industrial construction for maximum reliability
-
Helps improve machinery protection accuracy and operational efficiency
Technical FAQs
1. What is the primary function of the 125800-02 I/O Module?
It provides isolated signal interfacing for the 3500/25 Enhanced Keyphasor Module, delivering accurate shaft speed and rotational reference signals for machinery monitoring systems.
2. What makes the 125800-02 different from the standard Keyphasor I/O Module?
Unlike the standard version, the 125800-02 features electrical isolation, making it ideal for applications where Keyphasor signals are connected to multiple systems or where electrical noise must be minimized.
3. Which sensors is this module designed for?
It is primarily designed for magnetic pickup sensors but can also support Proximitor® transducers when an external power supply is provided.
4. What does "Internal Terminations" mean?
Internal terminations allow field wiring to connect directly to the rear I/O module inside the rack without requiring an external termination block.
5. Is the module compatible with all 3500/25 Keyphasor configurations?
It is compatible with the 3500/25 Enhanced Keyphasor Module when the isolated internal termination option is specified.
6. Can the module provide shaft phase information?
Yes. It supports shaft phase measurements, although isolated I/O modules introduce slightly more phase shift than non-isolated versions due to their isolation circuitry.
7. Why is electrical isolation important?
Electrical isolation protects connected equipment from ground loops and electrical interference while improving signal stability in complex industrial control systems.
8. What are the module dimensions and weight?
The associated 3500/25 Keyphasor monitor measures approximately 119.9 × 24.4 × 256.5 mm and weighs about 0.34 kg. The I/O module occupies one full-height rear rack slot.
9. Which industries commonly use this module?
It is widely used in power generation, oil and gas, petrochemical, mining, marine, and other industries that rely on continuous monitoring of critical rotating machinery.
10. Why choose the Bently Nevada 125800-02 Isolated Keyphasor I/O Module?
Its combination of electrical isolation, precise rotational reference capability, seamless integration with the 3500 platform, and proven industrial reliability makes it an excellent choice for advanced machinery protection applications.
