Flexible, Accurate Analog Output for Modern Control Systems

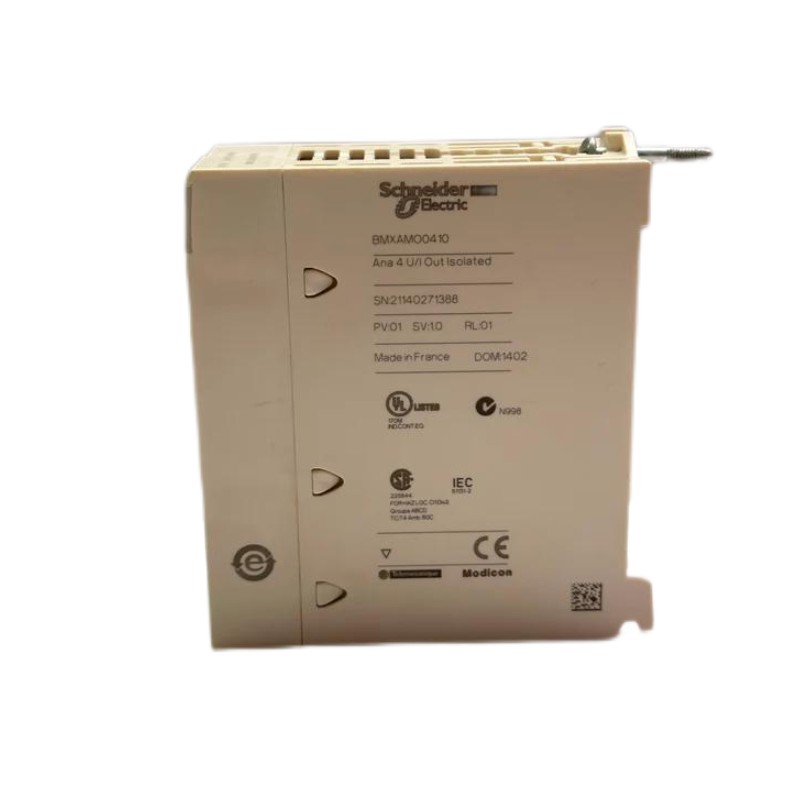

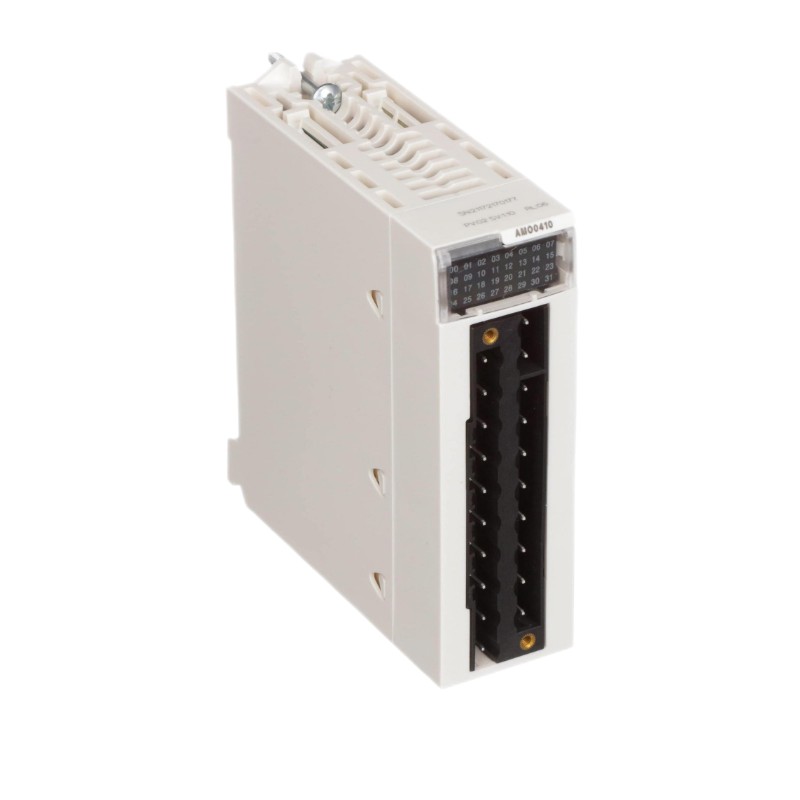

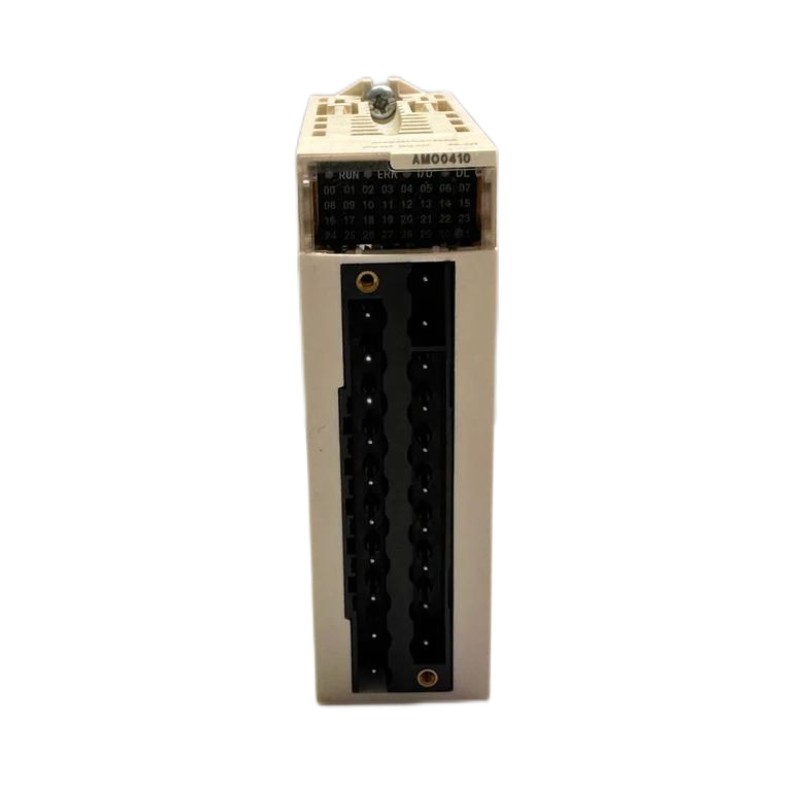

The Schneider BMXAMO0410 Analog Isolated High Level Output Module is a precision‑designed interface for industrial automation applications that require clean, isolated analog signals. Built as part of the Modicon BMX I/O family, this module delivers reliable voltage and current outputs with galvanic isolation, helping protect system integrity and reduce electrical noise. Its robust design ensures dependable performance in harsh environments, while its flexible output options support a wide range of control and actuation requirements.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Analog Output Module (High Level, Isolated) |
| Model Number | BMXAMO0410 |
| Module Family | Modicon BMX Series |
| Output Channels | 4 isolated analog outputs |
| Output Signal Types | 0–10 V, 0–20 mA, 4–20 mA |
| Isolation | Channel‑to‑system galvanic isolation |
| Resolution | High‑resolution DAC per channel |
| Accuracy | ±0.1 % typical |
| Response Time | Optimized for control loop performance |
| Load Impedance | Compatible with standard industrial loads |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | ‑40°C to 85°C |
| Humidity | 5 % – 95 % (non‑condensing) |
| Mounting | DIN rail or panel via carrier rack |
| Communication | Backplane connection to controller |
