Trusted Vibration Monitoring for High-Value Rotating Assets

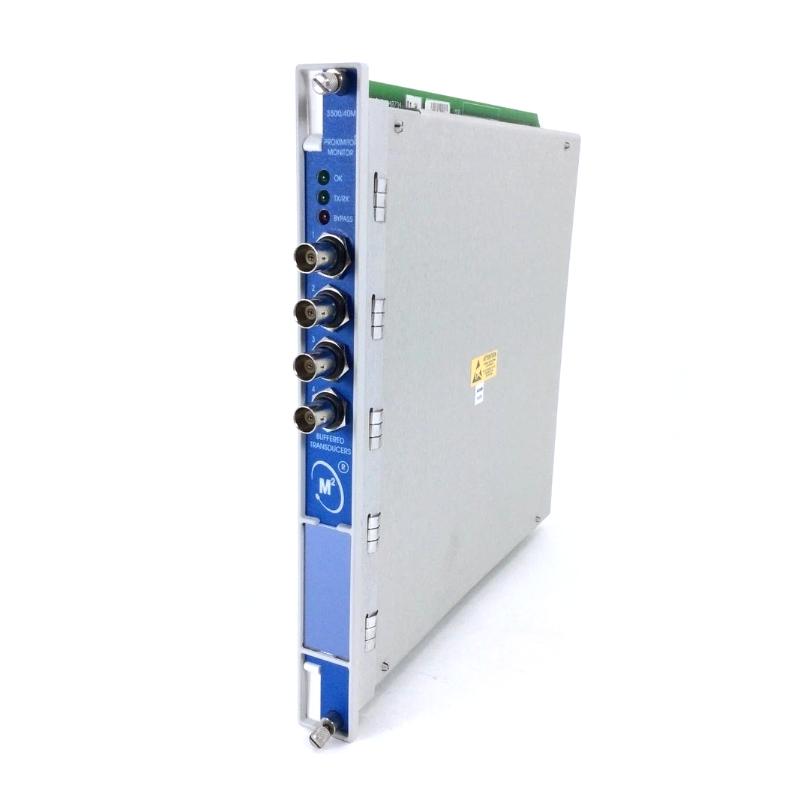

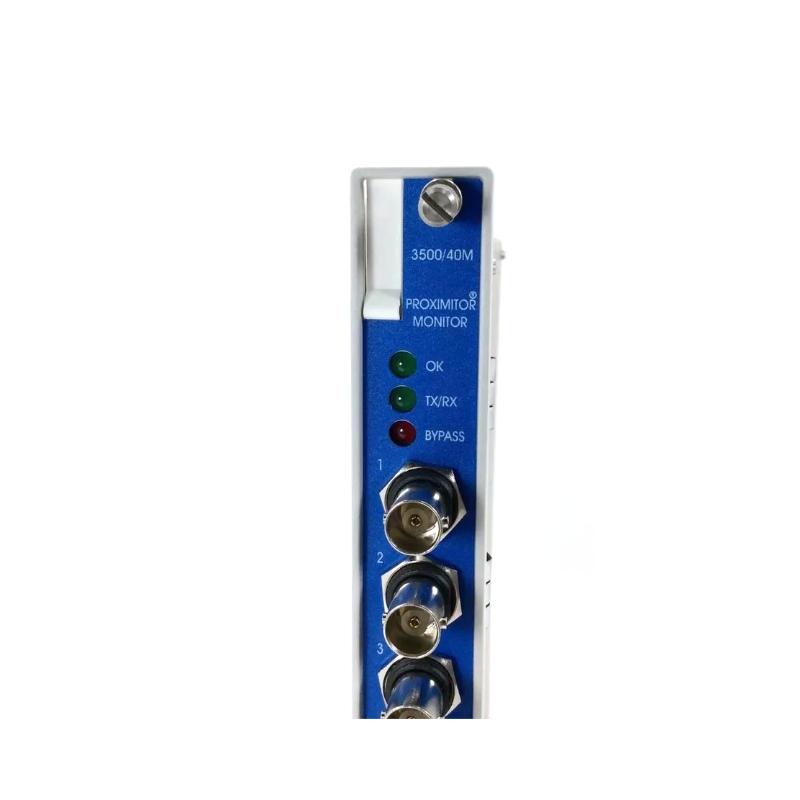

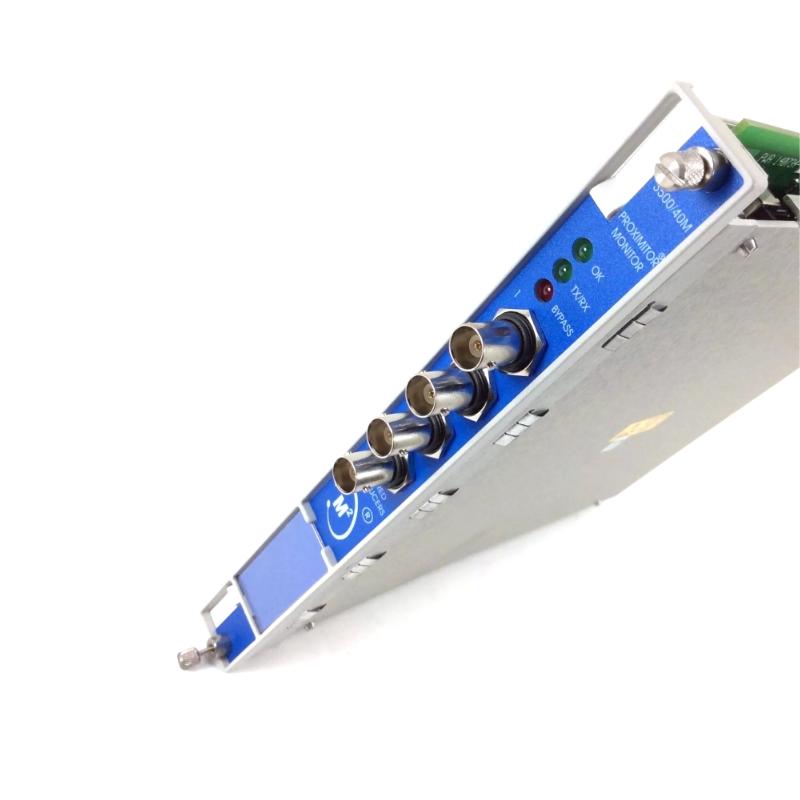

The Bently Nevada 3500/40M-01-00 140734-01 3500/40M Proximitor Monitor is a sophisticated four-channel monitoring module designed to deliver continuous vibration and shaft position monitoring for critical rotating machinery. As part of the industry-proven 3500 Machinery Protection System, this monitor conditions signals from Bently Nevada proximity transducers and converts them into precise machinery condition data for protection, diagnostics, and predictive maintenance.
Designed to meet the rigorous demands of industrial environments, the 140734-01 monitor helps operators identify mechanical abnormalities before they develop into costly equipment failures. Its flexible configuration, dependable alarm functions, and high measurement accuracy make it an excellent investment for facilities seeking to improve equipment reliability and reduce maintenance costs.
Engineering Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model | 3500/40M-01-00 |
| Spare Part Number | 140734-01 |
| Product Type | Proximitor Monitor |
| Series | 3500 Machinery Protection System |
| Monitoring Channels | 4 Independent Channels |
| Input Signals | Bently Nevada Proximity Transducers |
| Measurement Capabilities | Radial Vibration, Thrust Position, Differential Expansion, Eccentricity, REBAM |
| Alarm Functions | User-Programmable Alert & Danger Setpoints |
| Power Consumption | Typical 7.7 W |
| Installation | Full-Height Rack Module |
| Compatible Rack | Bently Nevada 3500 System |
| Main Module Dimensions | 241.3 × 24.4 × 241.8 mm |
| Main Module Weight | Approximately 0.91 kg |
| I/O Module Dimensions | 241.3 × 24.4 × 99.1 mm |
| I/O Module Weight | Approximately 0.20 kg |
Common Industrial Applications
The 3500/40M-01-00 is designed for continuous machinery protection in facilities where equipment reliability directly impacts productivity and safety. Its high-precision monitoring capabilities help maintenance teams implement predictive maintenance strategies and minimize unplanned downtime.
Typical applications include:
-
Steam turbine monitoring
-
Gas turbine protection
-
Centrifugal compressor monitoring
-
Industrial pumps and fans
-
Large electric motors
-
Power generation stations
-
Oil and gas production facilities
-
Petrochemical and refining plants
-
Mining operations
-
Chemical processing industries
Why This Monitor Stands Out
The 3500/40M-01-00 combines proven measurement technology with exceptional operational reliability, making it a preferred choice for industrial machinery protection.
Key advantages include:
-
Four independent high-precision monitoring channels
-
Continuous real-time vibration and shaft position analysis
-
Flexible configuration for multiple monitoring applications
-
Programmable Alert and Danger alarm thresholds
-
Excellent compatibility with Bently Nevada proximity probe systems
-
Fast response to changing machine conditions
-
Reliable long-term operation in demanding industrial environments
-
Modular design for straightforward installation and maintenance
-
Supports predictive maintenance programs
-
Helps maximize equipment uptime and operational efficiency
Technical FAQs
1. What is the primary purpose of the 3500/40M-01-00 Proximitor Monitor?
It continuously monitors vibration and shaft position by processing signals from proximity transducers, providing early warning of developing machinery faults.
2. How many monitoring channels are available?
The monitor features four independent channels that can be configured for different machinery protection functions.
3. Which machinery measurements are supported?
It supports radial vibration, thrust position, differential expansion, eccentricity, and REBAM measurements depending on the selected application.
4. What does part number 140734-01 represent?
140734-01 identifies the spare monitor assembly for the 3500/40M Proximitor Monitor, making replacement and maintenance straightforward.
5. Can alarm settings be customized?
Yes. Both Alert and Danger alarm setpoints are fully programmable using the 3500 Rack Configuration Software, allowing the monitor to match specific machinery protection requirements.
6. Which sensors work with this monitor?
The module is designed to interface with compatible Bently Nevada proximity transducers, including the widely used 3300 XL series.
7. Is the monitor suitable for continuous industrial service?
Yes. It is engineered for 24/7 operation in demanding industrial environments where uninterrupted machinery protection is essential.
8. What are the module dimensions and weight?
The main monitor measures 241.3 × 24.4 × 241.8 mm and weighs approximately 0.91 kg. The standard I/O module measures 241.3 × 24.4 × 99.1 mm and weighs approximately 0.20 kg.
9. How does continuous condition monitoring benefit industrial operations?
Continuous monitoring enables early fault detection, improves maintenance scheduling, reduces unexpected shutdowns, and extends the operating life of valuable rotating equipment.
10. Why choose the Bently Nevada 3500/40M-01-00 140734-01?
Its precise monitoring capabilities, proven reliability, flexible configuration, and seamless integration with the 3500 Machinery Protection System make it an outstanding solution for protecting critical industrial assets.
