Reliable Vibration Monitoring for Industrial Rotating Machinery

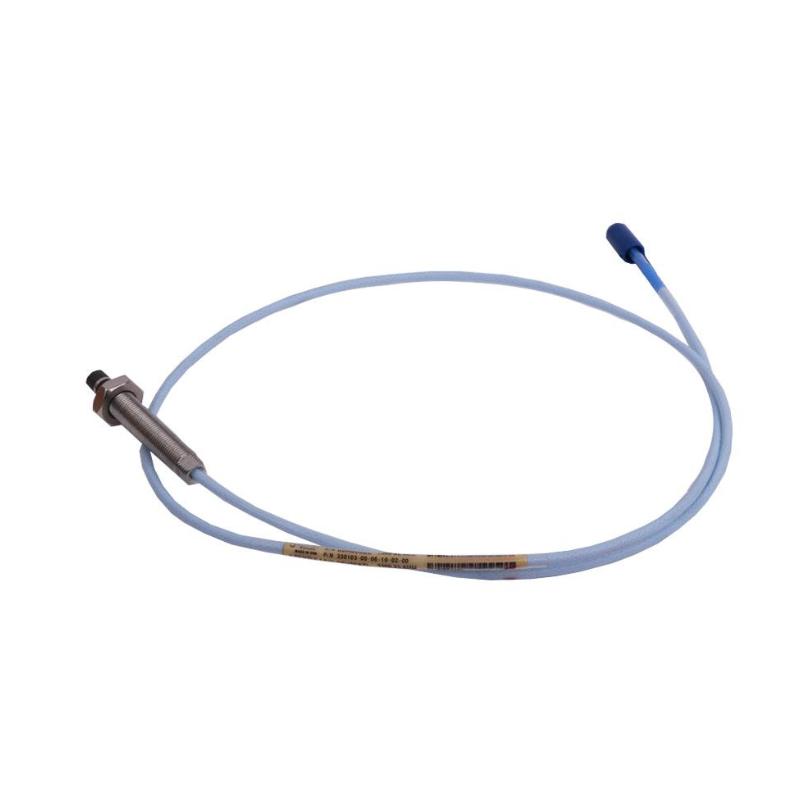

The Bently Nevada 330103-00-16-10-12-05 3300 XL 8 mm Proximity Probe is a premium non-contact sensor designed for precise shaft vibration and displacement measurement in critical rotating equipment. Built as part of the industry-proven 3300 XL Series, this proximity probe delivers exceptional measurement accuracy, outstanding environmental durability, and dependable long-term performance for machinery protection systems.
This configuration features an M10 × 1 fully threaded probe, 160 mm case length, 1.0 m total cable length, and a Miniature ClickLoc® connector with FluidLoc cable, making it well suited for applications where enhanced cable sealing and reliable signal transmission are required in demanding industrial environments.
Technical Profile
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model | 330103-00-16-10-12-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 Metric |
| Unthreaded Length | 0 mm |
| Overall Case Length | 160 mm |
| Total Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature Coaxial ClickLoc® Connector |
| Cable Type | FluidLoc Cable |
| Probe Case Material | Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Operating Temperature | -52°C to +177°C |
| Storage Temperature | -52°C to +177°C |
| Dimensions | Probe Case Length: 160 mm; Total Assembly Length: 1.0 m |
| Approximate Weight | Approximately 0.33 kg |
Ideal Applications
Designed for continuous machinery condition monitoring, the 330103-00-16-10-12-05 is widely used in industries where equipment reliability is essential.
Typical application areas include:
-
Steam turbines
-
Gas turbines
-
Centrifugal compressors
-
Industrial pumps
-
High-speed electric motors
-
Gearboxes
-
Power generation plants
-
Oil and gas production facilities
-
Petrochemical processing units
-
Chemical manufacturing plants
-
Mining machinery
-
Marine propulsion systems
Product Advantages
The 330103-00-16-10-12-05 combines precision engineering with rugged industrial construction to maximize equipment availability.
-
High-resolution non-contact shaft vibration measurement
-
Excellent long-term signal stability
-
Durable stainless-steel probe body for harsh environments
-
FluidLoc cable provides enhanced resistance to fluid ingress
-
Wide operating temperature range for demanding applications
-
Quick installation with M10 × 1 threaded design
-
Compatible with 3300 XL proximity transducer systems
-
Supports predictive maintenance and machinery protection programs
-
Helps reduce unexpected equipment failures
-
Designed for reliable continuous industrial operation
Technical FAQs
1. What is the primary function of this proximity probe?
It continuously measures shaft vibration and displacement without physical contact, supporting machinery protection and condition monitoring.
2. What thread size does this model use?
The probe features an M10 × 1 fully threaded metric housing.
3. What is the overall probe case length?
The probe case length is 160 mm.
4. How long is the integrated cable?
This configuration includes a total cable length of 1.0 meter (3.3 feet).
5. What makes the FluidLoc cable different?
The FluidLoc cable is designed to improve resistance against fluid migration, helping maintain signal integrity in demanding industrial environments.
6. What connector does this probe use?
It is equipped with a miniature coaxial ClickLoc® connector for secure and reliable electrical connections.
7. Which machinery is this probe commonly installed on?
It is frequently used on turbines, compressors, pumps, motors, and other high-value rotating equipment.
8. Is the probe suitable for continuous monitoring?
Yes. It is engineered for permanent installation in machinery protection and predictive maintenance systems.
9. What materials are used in the probe construction?
The housing is manufactured from stainless steel, while the sensing tip is constructed from durable PPS material for long service life.
10. Why choose the 3300 XL Series?
The 3300 XL Series is recognized worldwide for its measurement accuracy, exceptional reliability, robust industrial design, and compatibility with advanced vibration monitoring systems.
