Extended-Body Metric Probe for High-Precision Machinery Monitoring

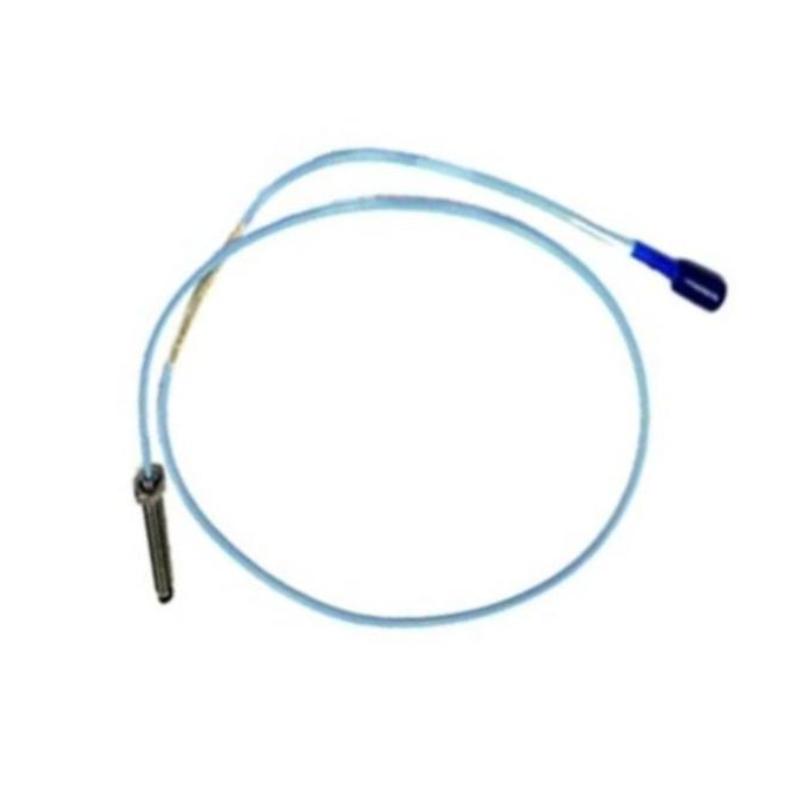

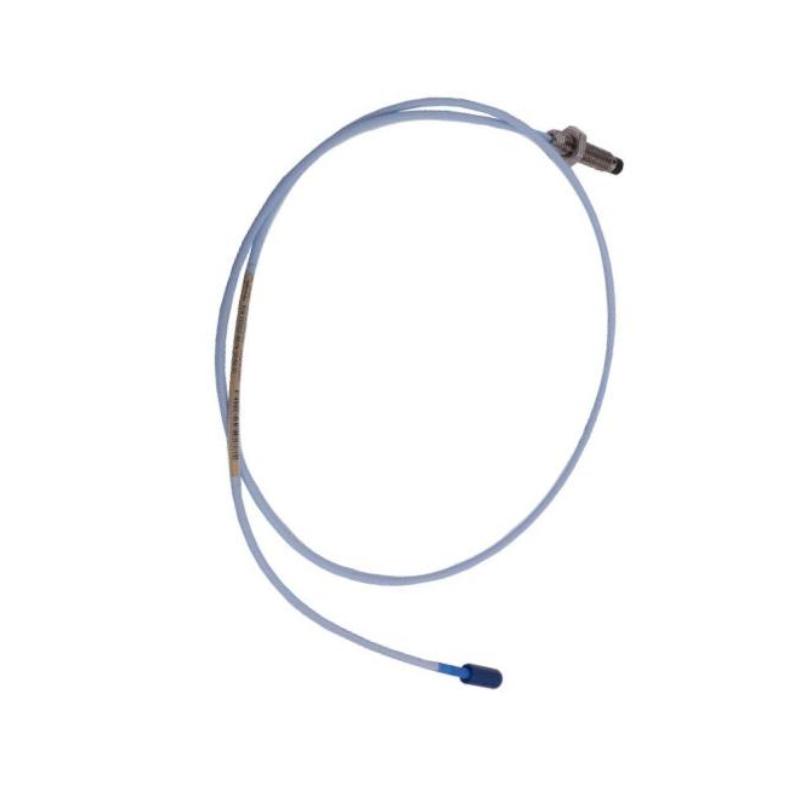

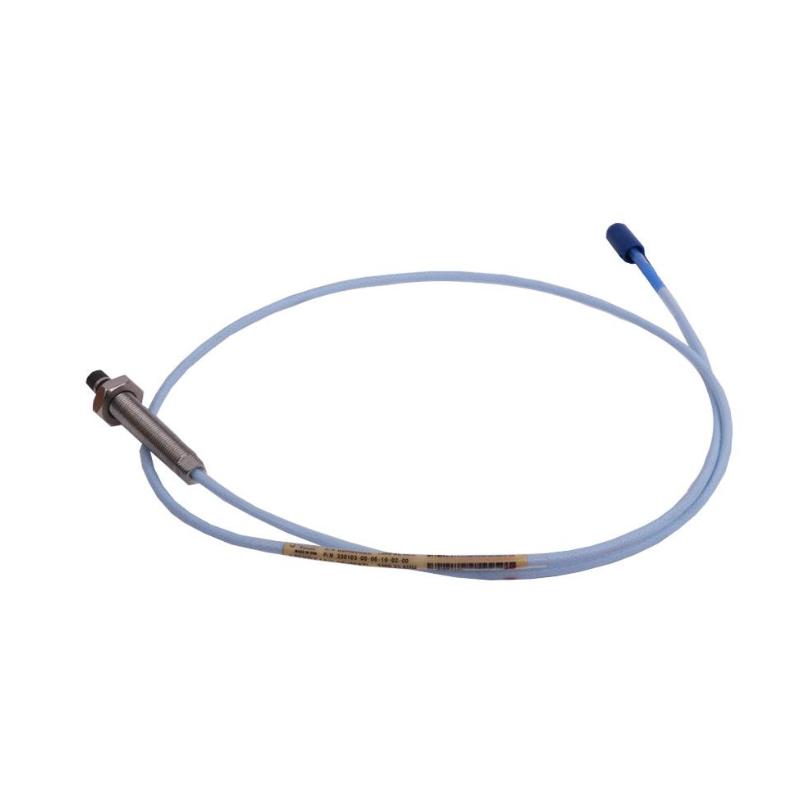

The Bently Nevada 330103-00-14-10-01-00 3300 XL 8 mm Proximity Probe is a precision non-contact eddy-current sensor designed to provide accurate shaft vibration, radial displacement, and axial position measurements on critical rotating equipment. As part of the proven 3300 XL 8 mm Proximity Transducer System, this probe delivers dependable signal stability, excellent repeatability, and long service life in demanding industrial environments.
Designed with an M10 × 1 metric thread, 140 mm overall case length, 1.0 m total length configuration, and standard coaxial ClickLoc connector, the 330103-00-14-10-01-00 provides installation flexibility for machinery requiring an extended probe body. It is commonly integrated with a compatible 3300 XL extension cable and Proximitor Sensor to create a complete vibration and position monitoring solution.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330103-00-14-10-01-00 |
| Product Series | 3300 XL 8 mm |
| Product Type | Proximity Probe |
| Measurement Technology | Eddy Current Non-Contact Sensing |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 Metric |
| Probe Style | Standard Mount, Non-Armored |
| Unthreaded Length | 0 mm |
| Overall Case Length | 140 mm |
| Total Probe Length Option | 1.0 m (3.3 ft) |
| Connector Type | Miniature Coaxial ClickLoc Connector |
| Cable Type | Standard Cable |
| Approval Option | 00 – No Agency Approval Required |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Housing Material | Stainless Steel |
| Linear Measurement Range | Approximately 2 mm (80 mils) |
| Compatible Components | 3300 XL Extension Cable and Proximitor Sensor |
| Measurement Applications | Shaft Vibration, Radial Displacement, Axial Position, Speed Reference |
| Dimensions | 8 mm probe tip diameter × 140 mm case length; 1.0 m cable length |
| Weight | Approximately 0.32 kg (0.71 lb) |
Industrial Applications
The 330103-00-14-10-01-00 is designed for continuous monitoring of rotating assets where precise shaft measurement and reliable machine protection are required.
Typical applications include:
-
Steam turbines
-
Gas turbines
-
Centrifugal compressors
-
Generator sets
-
Industrial pumps
-
Electric motors
-
Turbo expanders
-
Gearboxes
-
Refinery rotating equipment
-
Petrochemical processing machinery
-
Power generation systems
-
Heavy industrial production equipment
Product Advantages
The 330103-00-14-10-01-00 combines the proven reliability of the 3300 XL platform with an extended mechanical design suitable for challenging installation conditions.
Key advantages include:
-
High-accuracy non-contact shaft vibration measurement
-
Extended 140 mm probe body for deeper mounting positions
-
Stable eddy-current sensing performance
-
Excellent signal repeatability and long-term reliability
-
M10 × 1 metric thread for convenient equipment integration
-
Standard cable configuration for flexible system installation
-
ClickLoc connector design improves connection security
-
Stainless-steel construction supports harsh industrial environments
-
Compatible with existing 3300 XL monitoring infrastructure
-
Supports predictive maintenance programs and early detection of rotating equipment faults
-
Helps improve asset reliability and reduce unexpected equipment shutdowns
Technical FAQs
1. What is the main purpose of the 330103-00-14-10-01-00?
The probe measures shaft movement without physical contact and provides vibration and position signals for machinery monitoring systems.
2. What sensing technology does this probe use?
It uses eddy-current sensing technology, which detects changes in distance between the probe tip and the conductive shaft surface.
3. What type of probe is the 330103-00-14-10-01-00?
It is a 3300 XL 8 mm standard metric proximity probe with an M10 × 1 thread and non-armored construction.
4. What is the probe diameter?
The sensing tip diameter is 8 mm, which provides a standard measurement range suitable for many fluid-film bearing machines.
5. What is the overall case length?
This model features a 140 mm overall case length, making it suitable for installations requiring additional probe reach.
6. What cable length does this configuration provide?
The model includes a 1.0 m total length option, allowing flexible connection arrangements in machinery monitoring installations.
7. Is this probe suitable for hazardous-area applications?
This specific -00 approval option does not include agency hazardous-area certification. For certified installations, users should select an appropriate approved configuration.
8. Which systems can use this probe?
It is designed for use with compatible 3300 XL extension cables and 3300 XL Proximitor Sensors as part of a complete transducer system.
9. What machinery can this probe monitor?
It is commonly used on turbines, compressors, pumps, motors, generators, and other rotating equipment requiring continuous condition monitoring.
10. Why choose the Bently Nevada 330103-00-14-10-01-00?
Its extended probe design, accurate non-contact measurement capability, and compatibility with the established 3300 XL platform make it a reliable solution for protecting valuable rotating machinery.
