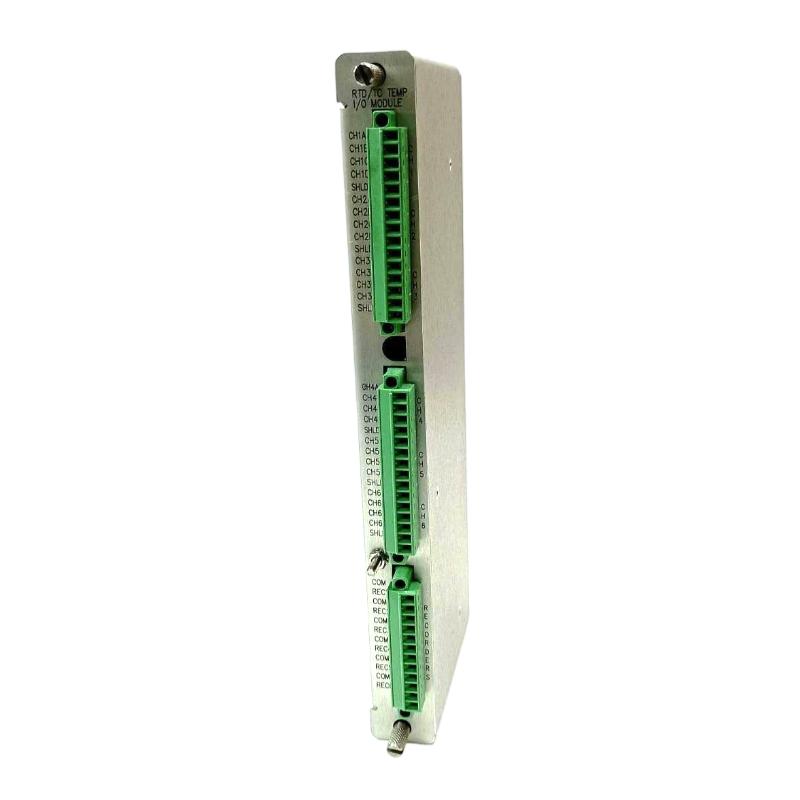

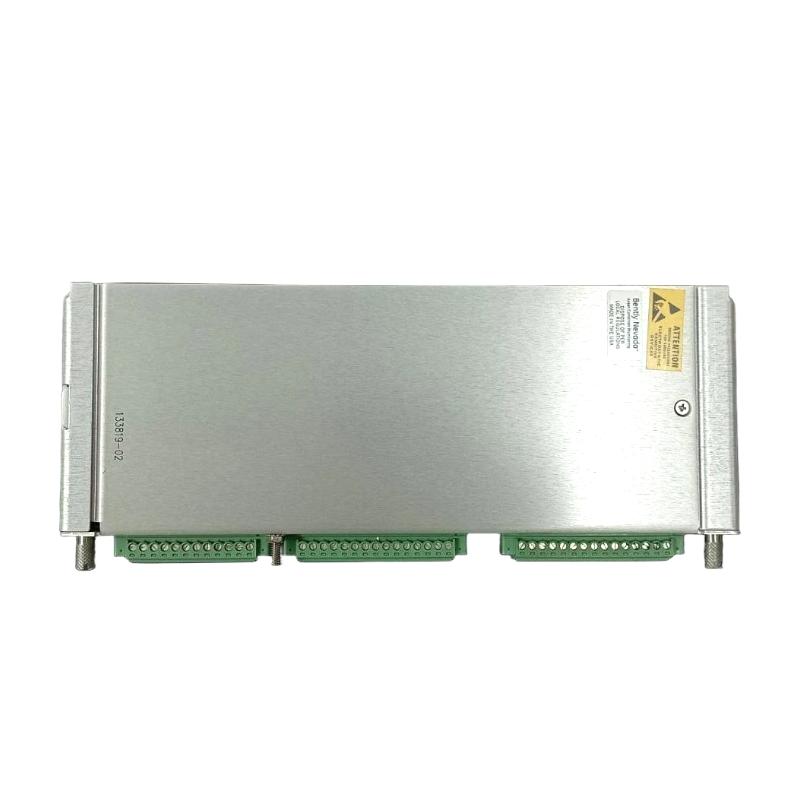

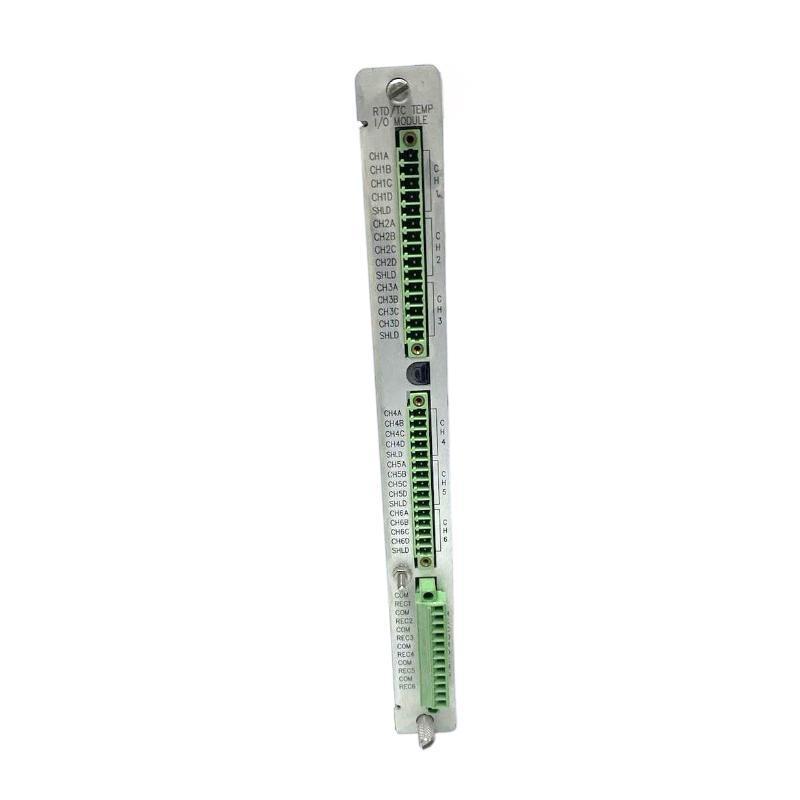

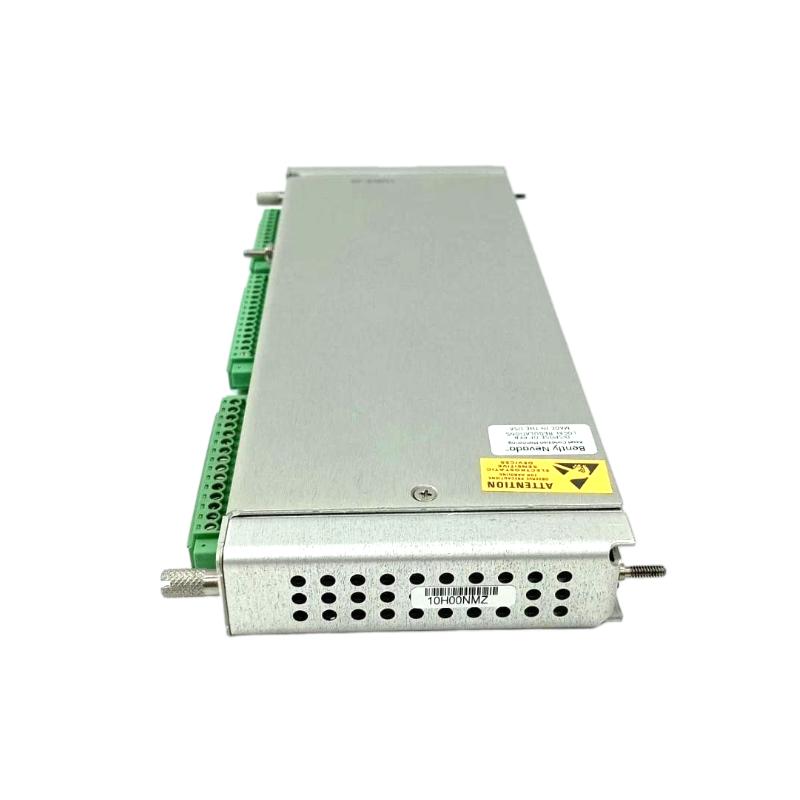

Bently Nevada 3500/61-01-00 133819-02 RTD/TC Non-Isolated Input/Output Module Internal Terminal

Brand:Bently Nevada PLC
Item No.:3500/61-01-00
Product Origin:USA
Product Dimensions:241.3 x 24.4 x 99.1 mm
Product Weight:0.45 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction

The Bently Nevada 3500/61-01-00 133819-02 RTD/TC Non-Isolated Input/Output Module Internal Terminal is a key component in Bently Nevada’s 3500 Series Machinery Protection and Monitoring Systems. This module is designed for interfacing with RTD (Resistance Temperature Detector) and thermocouple (TC) sensors, providing direct input/output channels without electrical isolation. Ideal for environments where high accuracy and signal integrity are essential, the 3500/61-01-00 enables precise temperature monitoring and feedback in machinery and equipment. This module is used in industries like power generation, oil & gas, and manufacturing, where temperature control is critical to the proper functioning of machinery.

Technical Specifications

SpecificationDetails
Model Number3500/61-01-00 133819-02
Module TypeNon-Isolated Input/Output Module (RTD/TC)
Dimensions241.3 x 24.4 x 99.1 mm
Weight0.45 kg
Input Power24V DC
Communication ProtocolBently Nevada 3500 Series Communication
Number of Channels4 (RTD/TC Inputs)
Operating Temp-40°C to +70°C
Storage Temp-40°C to +85°C


Applications

  • Temperature Sensing: Primarily used for interfacing with RTD and thermocouple sensors to provide accurate temperature readings in industrial machinery.

  • Power Generation: Commonly used in power plants for monitoring temperature in key equipment like turbines, motors, and generators.

  • Oil & Gas: Essential in high-temperature, high-pressure environments where real-time temperature monitoring is crucial for operational safety.

  • Industrial Automation: Enables precise temperature control and monitoring in automated manufacturing systems to ensure optimal performance of critical equipment.


Advantages

  • Non-Isolated Input/Output: Provides direct connection between sensors and the monitoring system, allowing for fast data acquisition with minimal complexity.

  • Multiple Channel Support: Supports up to 4 input channels, allowing monitoring of multiple sensors for comprehensive temperature data across different machinery components.

  • Compact Design: The module’s compact form factor makes it easy to integrate into existing machinery protection and control systems without taking up excessive space.

  • Wide Temperature Range: With an operating temperature range of -40°C to +70°C, it is suitable for a broad range of industrial environments, including extreme conditions.


Technical FAQs

  1. What is the primary function of the 3500/61-01-00 module?
    The unit interfaces with RTD and thermocouple (TC) sensors to provide non-isolated input/output for real-time temperature monitoring.

  2. How many channels does the 3500/61-01-00 support?
    The module supports up to 4 RTD/TC input channels, allowing for temperature monitoring across multiple components.

  3. What power supply does the 3500/61-01-00 require?
    The unit operates on a 24V DC power supply.

  4. Can the 3500/61-01-00 be used in hazardous environments?
    The unit is designed for use in standard industrial environments and may require appropriate certifications for hazardous locations.

  5. What is the operating temperature range of the 3500/61-01-00?
    The operating temperature range is -40°C to +70°C.

  6. How does the 3500/61-01-00 handle signal isolation?
    This module does not provide electrical isolation; it allows direct communication between sensors and the control system, making it ideal for non-critical applications where isolation is not required.

  7. What types of sensors is the 3500/61-01-00 compatible with?
    The module is compatible with RTD (Resistance Temperature Detectors) and thermocouple (TC) temperature sensors.

  8. Does the 3500/61-01-00 support redundancy in communication?
    Yes, it supports redundant communication for improved reliability and operational continuity.

  9. Is the 3500/61-01-00 compatible with other Bently Nevada systems?
    Yes, it integrates seamlessly with other components of the 3500 Series Machinery Protection and Monitoring Systems.

  10. How does the 3500/61-01-00 protect against electrical surges?
    The unit is designed with built-in surge protection to safeguard against voltage spikes and transient electrical events.
