Product Highlights

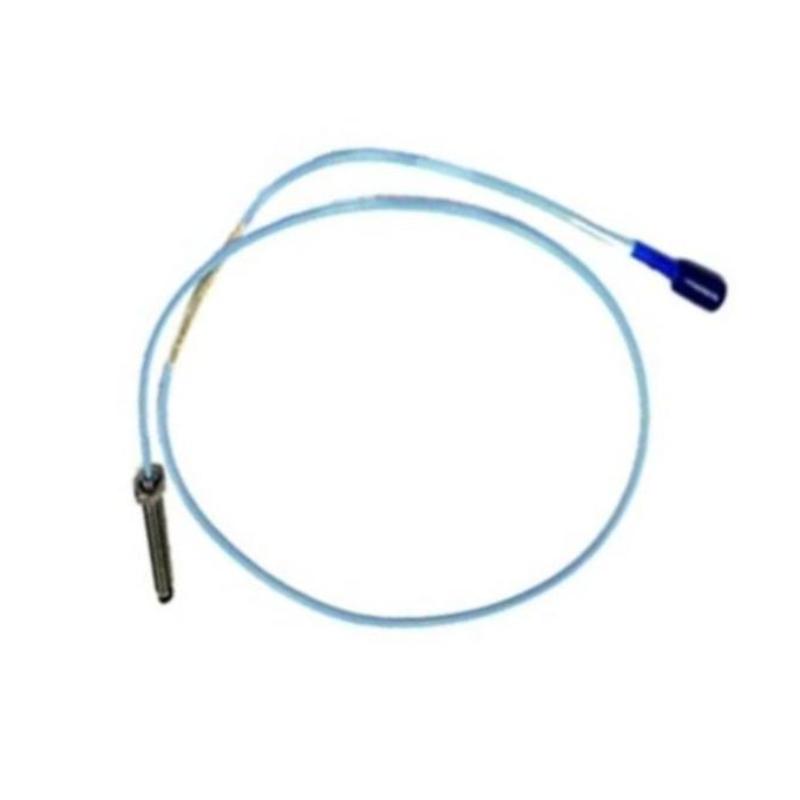

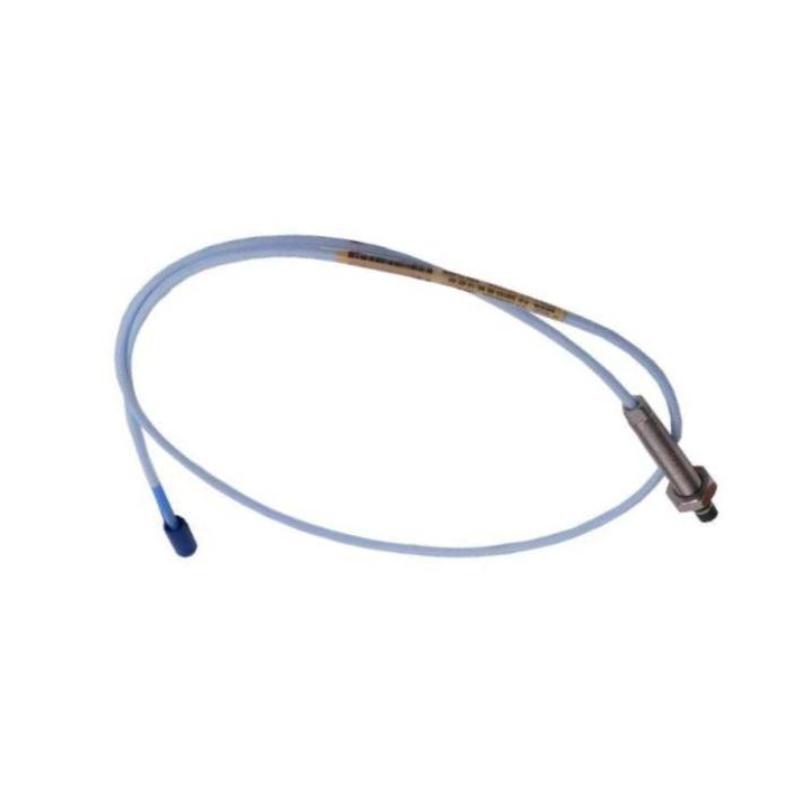

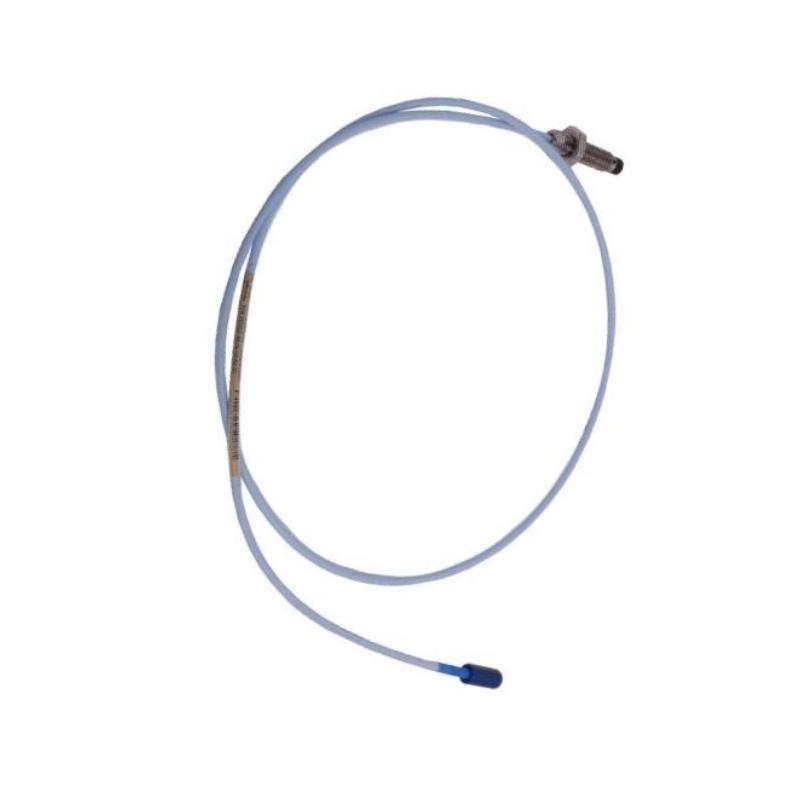

The Bently Nevada 330103-00-16-10-01-00 3300 XL 8 mm Proximity Probe is engineered for high-precision, non-contact shaft vibration and displacement measurement in rotating machinery. As part of the trusted 3300 XL Series, this proximity probe delivers excellent measurement stability, dependable long-term performance, and outstanding resistance to harsh industrial environments.
Designed with an M10 × 1 threaded probe body, 160 mm case length, and 1.0 m standard cable, this model integrates seamlessly with compatible proximity transducer systems for continuous machinery condition monitoring. Its robust construction and consistent signal quality make it a preferred solution for predictive maintenance programs across critical industrial facilities.
Engineering Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model | 330103-00-16-10-01-00 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 |
| Unthreaded Length | 0 mm |
| Overall Case Length | 160 mm |
| Total Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature Coaxial ClickLoc Connector with Connector Protector |
| Cable Type | Standard Cable |
| Probe Case Material | Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Operating Temperature | -52°C to +177°C |
| Storage Temperature | -52°C to +177°C |
| Dimensions | Probe Case Length: 160 mm; Total Assembly Length: 1.0 m |
| Weight | Approximately 0.323 kg |
Typical Industrial Applications
The 330103-00-16-10-01-00 proximity probe is designed for continuous machinery monitoring where precision and reliability are essential. It is widely deployed in industries that depend on high-value rotating equipment.
Typical applications include:
-
Steam and gas turbines
-
Centrifugal compressors
-
Industrial pumps
-
Electric motors
-
Gearboxes
-
Power generation facilities
-
Oil and gas processing plants
-
Petrochemical production
-
Chemical processing
-
Heavy manufacturing equipment
Performance Benefits
Selecting the 330103-00-16-10-01-00 provides measurable advantages for industrial maintenance and asset protection.
-
High-accuracy non-contact shaft position measurement
-
Excellent vibration monitoring performance
-
Durable stainless-steel construction for demanding environments
-
Stable operation across a wide temperature range
-
Fast integration with compatible 3300 XL monitoring systems
-
Reliable signal transmission through the ClickLoc connector
-
Reduced maintenance requirements and improved equipment uptime
-
Designed for continuous operation in mission-critical applications
-
Supports predictive maintenance strategies
-
Trusted performance for long-term industrial use
Technical Questions & Answers
1. What is the primary function of this proximity probe?
It measures shaft vibration and displacement without physical contact, enabling continuous machine condition monitoring.
2. Which thread specification does this probe use?
This model features an M10 × 1 threaded probe body.
3. What is the probe case length?
The overall case length is 160 mm.
4. How long is the cable?
The integrated cable length is 1.0 meter (3.3 feet).
5. What connector is supplied?
It is equipped with a miniature coaxial ClickLoc connector with connector protector.
6. What material is used for the probe housing?
The housing is manufactured from corrosion-resistant stainless steel.
7. Can the probe operate in high-temperature environments?
Yes. It is designed for reliable operation from -52°C to +177°C.
8. Which industries commonly use this probe?
Power generation, oil and gas, petrochemical, mining, water treatment, and general industrial automation.
9. Is this probe suitable for continuous monitoring systems?
Yes. It is specifically designed for permanent machinery protection and condition monitoring installations.
10. What are the main advantages of the 3300 XL Series?
The series is recognized for high measurement accuracy, dependable long-term stability, excellent environmental resistance, and easy integration with compatible monitoring systems.
