Enhanced Drive Control Platform for Demanding Industrial Applications

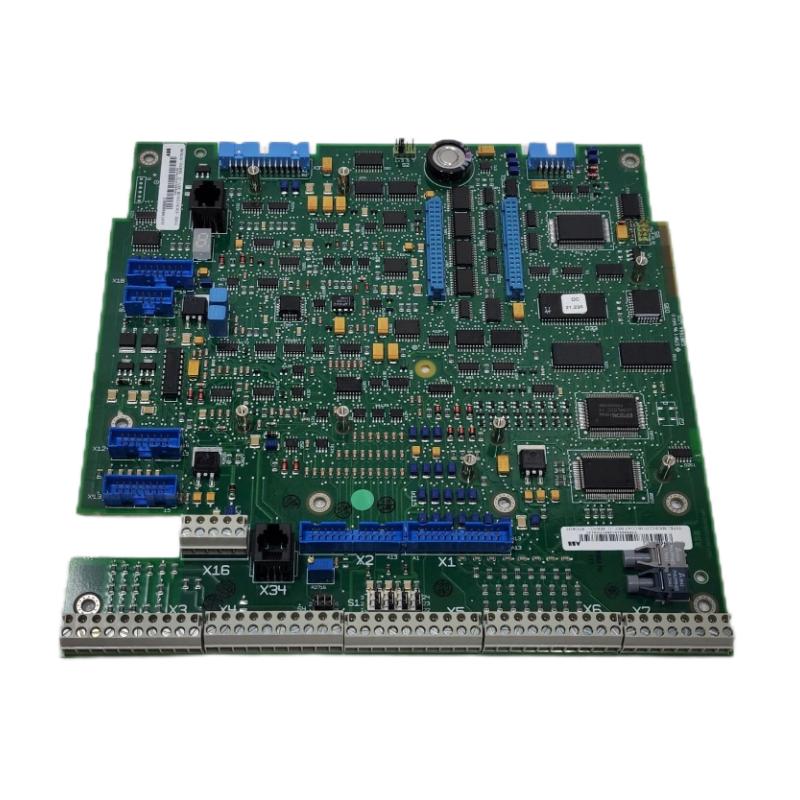

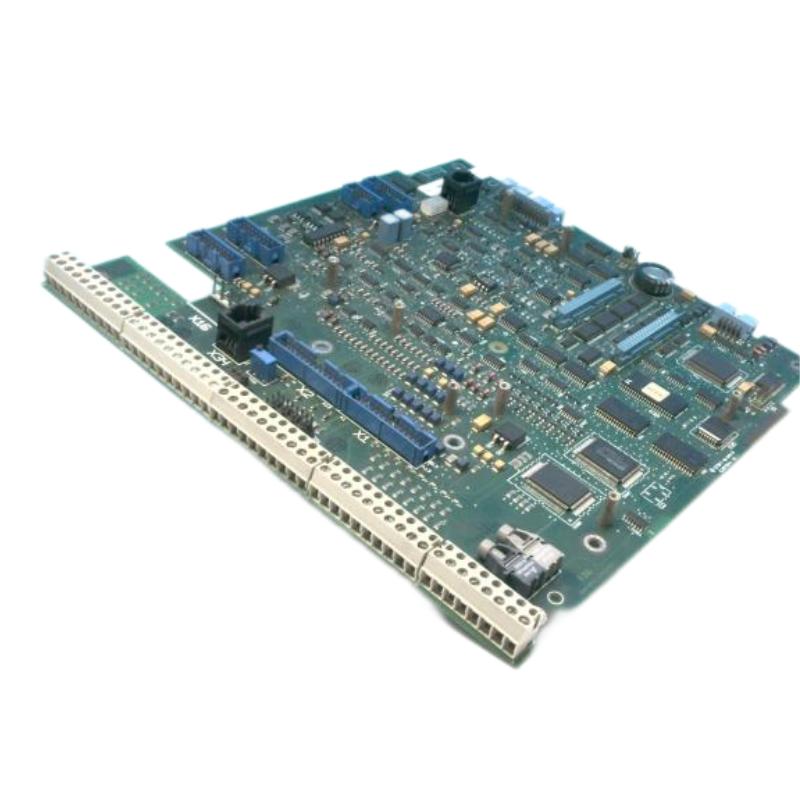

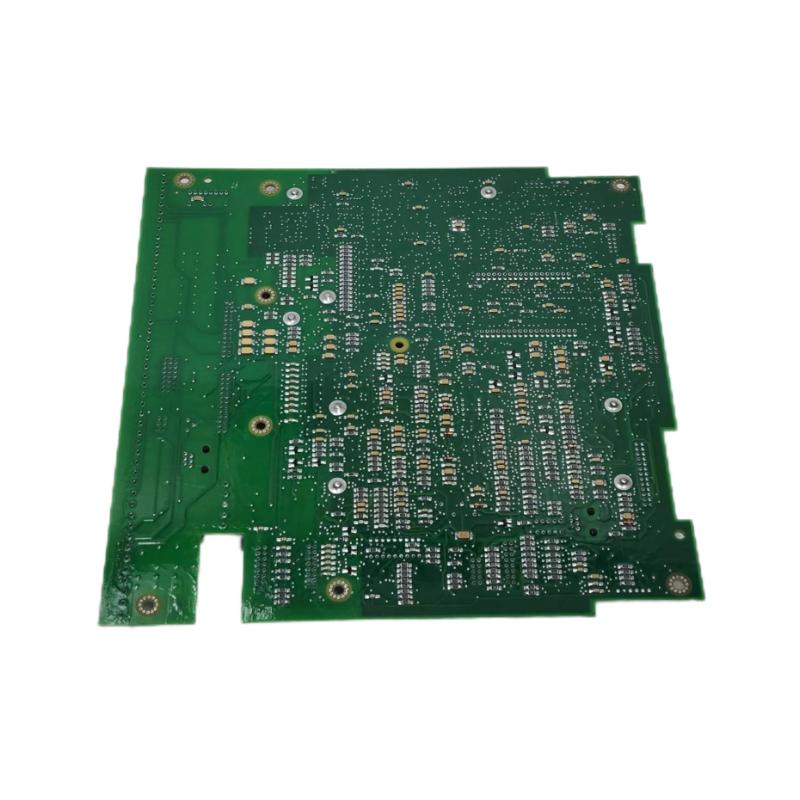

The ABB SDCS-CON-2B 3ADT309600R1012 Control Board is an advanced control unit designed to manage and optimize the performance of ABB DCS drive systems. Acting as the core processing module, it handles real-time control algorithms, signal coordination, and system diagnostics to ensure precise and stable drive operation.
With improved processing capability and system integration features, this board is well-suited for complex industrial environments where accuracy, responsiveness, and reliability are critical to operational success.
Technical Specifications
| Parameter | Details |
|---|
| Manufacturer | ABB |
| Model | SDCS-CON-2B |
| Part Number | 3ADT309600R1012 |
| Module Type | Control Board |
| Function | Real-time drive control and system management |
| Processor Type | Embedded industrial-grade processor |
| Communication Interfaces | Internal bus, serial interfaces |
| Analog Signal Support | Yes (system dependent) |
| Digital I/O Support | Yes (via expansion modules) |
| Control Capability | High-speed real-time processing |
| Diagnostic Functions | Integrated monitoring and fault detection |
| Power Supply | Internal system supply |
| Operating Temperature | -10°C to +70°C |
| Storage Temperature | -25°C to +85°C |
| Insulation Voltage | Up to 2000 V |
| Mounting Type | Plug-in / drive-integrated |
| Dimensions (L×W×D) | Approx. 200 × 120 × 40 mm |
| Weight | Approx. 0.35 – 0.65 kg |
Application Areas
The SDCS-CON-2B is widely used in industrial sectors where precise motor control and system reliability are essential. Typical applications include:
-
ABB DCS800 DC drive systems
-
Steel and metal processing plants
-
Power generation and energy systems
-
Mining, cement, and heavy industrial operations
-
Conveyor systems and material handling
It plays a central role in coordinating drive behavior, ensuring accurate speed and torque control across demanding processes.
Key Advantages and System Value
This control board offers enhanced processing performance, enabling faster response times and improved control accuracy in complex applications. Its integrated diagnostic functions help detect faults early, reducing downtime and improving maintenance efficiency.
The module supports seamless integration with ABB communication and I/O boards, allowing flexible system expansion. Its rugged design ensures reliable operation under harsh environmental conditions, while the plug-in structure simplifies installation and servicing.
Overall, it provides a strong combination of control precision, system reliability, and operational efficiency.
Technical FAQs
-
What is the main role of the SDCS-CON-2B?
It serves as the central control unit for ABB drive systems.
-
Is it compatible with DCS800 drives?
Yes, it is designed for ABB DCS drive platforms including DCS800.
-
Does it support real-time processing?
Yes, it handles high-speed real-time control operations.
-
What types of signals can it process?
Both analog and digital signals via system configuration.
-
Does it include diagnostic features?
Yes, it supports system monitoring and fault detection.
-
How is it installed?
As a plug-in board within the drive system.
-
What power supply does it require?
It uses internal system power.
-
Is it suitable for harsh environments?
Yes, it operates reliably within a wide temperature range.
-
Can it integrate with other ABB modules?
Yes, it works with communication and I/O boards.
-
What industries commonly use this module?
Heavy industry, energy, and large-scale automation systems.
