Product Overview

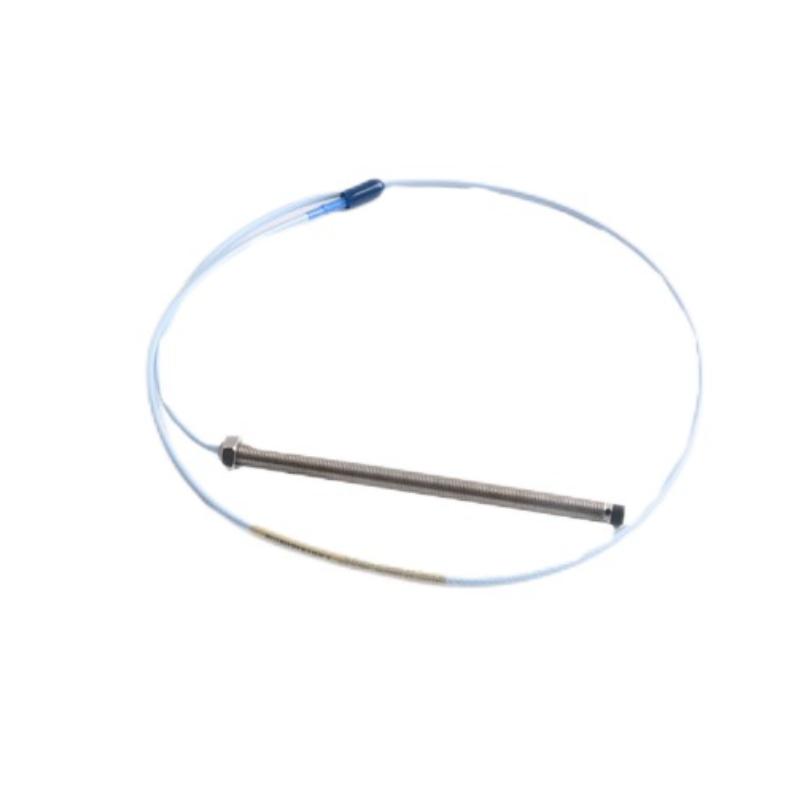

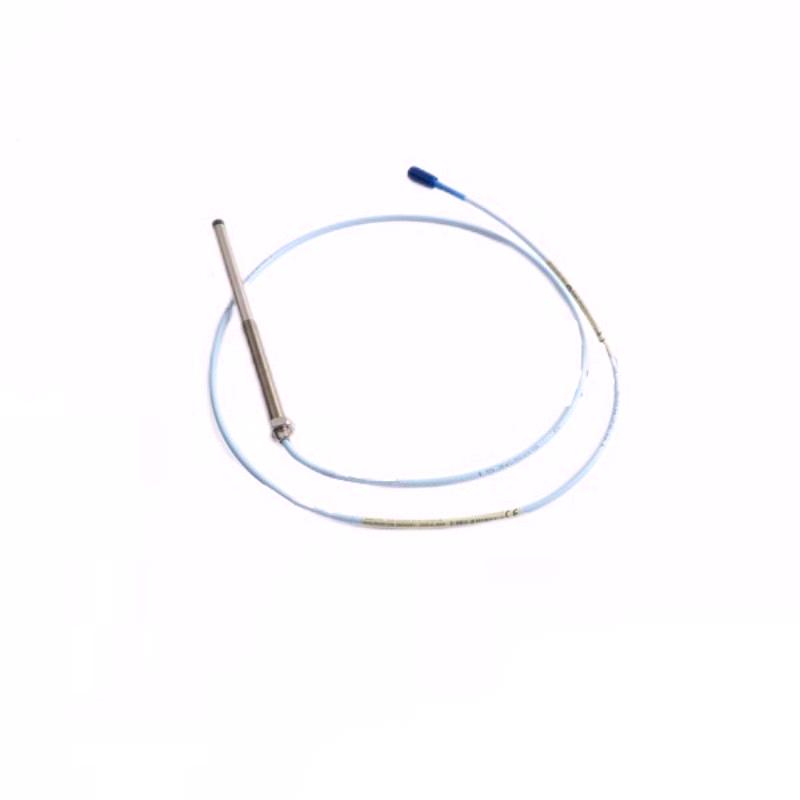

The Bently Nevada 330910-09-17-10-02-CN 3300 NSv Proximity Probe is a compact, armored eddy-current proximity probe designed for the 3300 XL NSv Proximity Transducer System. Its slim M10 × 1 threaded construction makes it suitable for installations where available mounting space is limited while maintaining accurate non-contact shaft displacement measurement. When combined with a compatible 3300 XL NSv Proximitor Sensor and 3300 NSv Extension Cable, it forms a complete measurement solution for rotating machinery.

This configuration includes a 90 mm unthreaded length, 170 mm overall case length, 1.0 m integral cable, a Miniature ClickLoc connector (standard cable), and the CN approval option. The probe is factory configured to ensure compatibility throughout the complete 3300 XL NSv transducer system.

Technical Specifications

Technical FAQs

1. What is the 330910-09-17-10-02-CN?
It is a 3300 NSv Proximity Probe designed for the 3300 XL NSv Proximity Transducer System.

2. What thread size does this probe use?
The probe features an M10 × 1 threaded armored body.

3. What does the "09" option represent?
It specifies a 90 mm unthreaded probe length.

4. What does the "17" option indicate?
It identifies an overall probe case length of 170 mm.

5. What cable length is supplied?
This model includes a 1.0 m (39 in) integral cable.

6. Which connector configuration is used?
It is equipped with a Miniature Coaxial ClickLoc connector with standard cable (Option 02).

7. Which components are compatible with this probe?
It is designed for use with compatible 3300 XL NSv Proximitor Sensors and 3300 NSv Extension Cables.

8. What is the operating temperature range?
The probe operates from -52°C to +177°C (-62°F to +351°F).

9. What is the approximate product weight?
The probe weighs approximately 0.16 kg, with a typical shipping weight of 0.35 kg.

10. What does the "CN" suffix indicate?
The CN suffix designates the China approval configuration for applicable certified installations.
