Product Overview

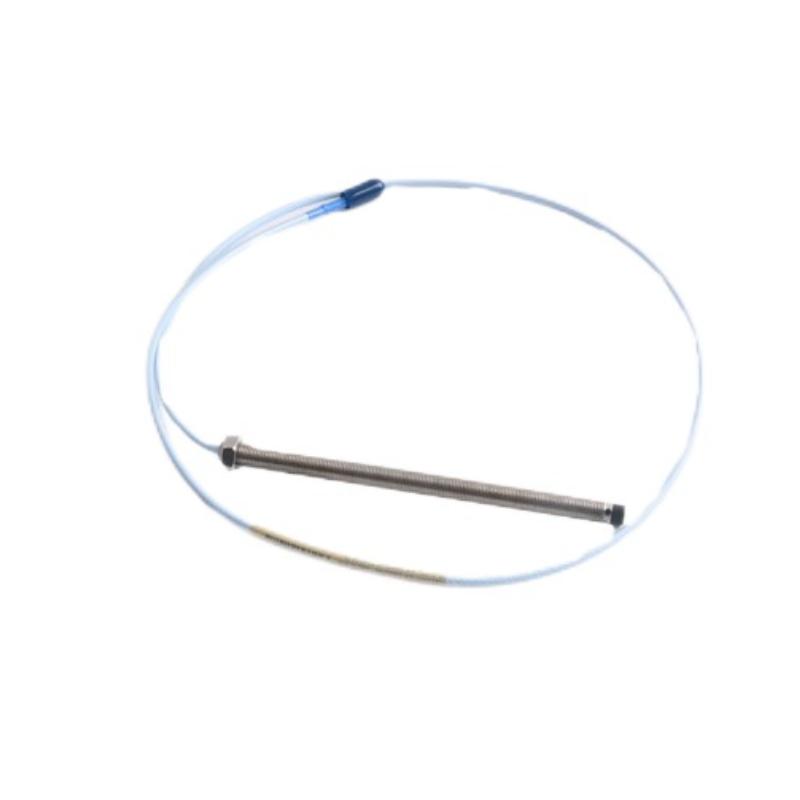

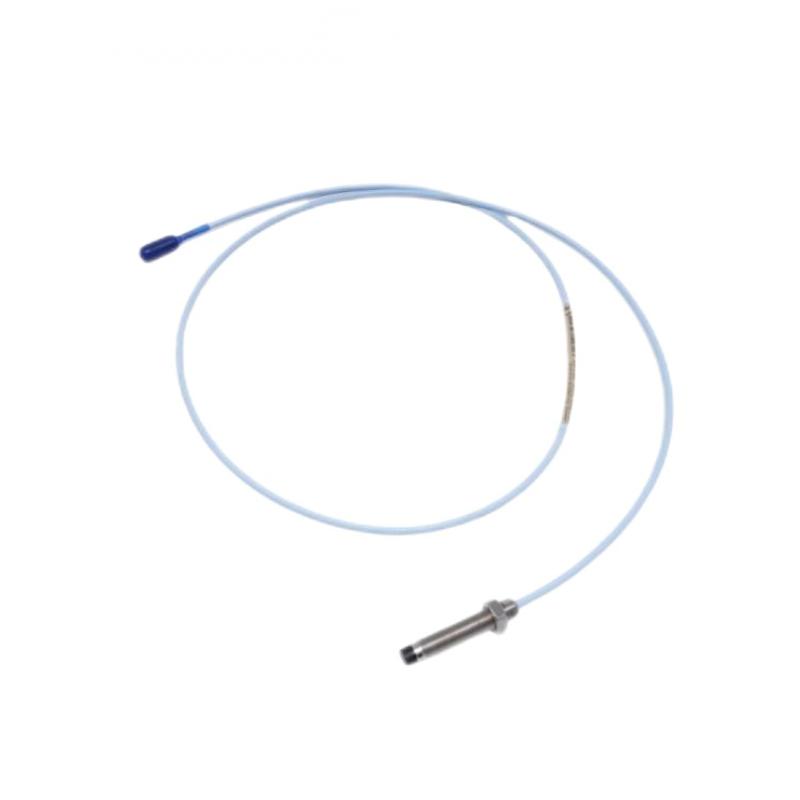

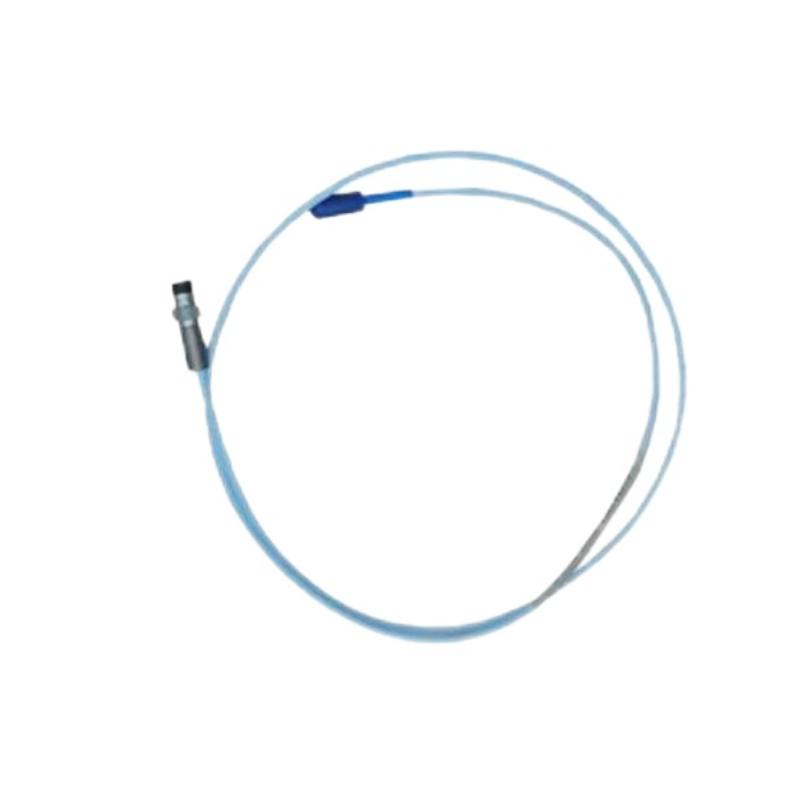

The Bently Nevada 330910-05-21-10-02-00 3300 NSv Proximity Probe is a compact non-contact probe engineered for the 3300 XL NSv Proximity Transducer System. Designed for installations with restricted mounting space, it provides dependable displacement measurement when paired with a compatible 3300 XL NSv Proximitor Sensor and 3300 NSv Extension Cable. Its M10 × 1 threaded body and armored cable construction make it suitable for demanding machinery monitoring applications while maintaining installation flexibility.
This configuration features a 50 mm unthreaded length, 210 mm overall case length, 1.0 m total probe length, Miniature ClickLoc connector with standard cable, and Agency Approval Option 00 (Not Required). The factory-defined configuration ensures full compatibility within the 3300 XL NSv transducer system.
Technical Specifications
| Specification | Description |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330910-05-21-10-02-00 |
| Product Type | 3300 NSv Proximity Probe |
| Product Family | 3300 XL NSv |
| Thread Size | M10 × 1 |
| Probe Construction | Armored |
| Unthreaded Length | 50 mm |
| Overall Case Length | 210 mm |
| Total Probe Length | 1.0 m (39 in) |
| Connector Type | Miniature Coaxial ClickLoc Connector |
| Cable Type | Standard Cable |
| Agency Approval | 00 – Not Required |
| Compatible Extension Cable | 3300 NSv Extension Cable |
| Compatible Sensor | 3300 XL NSv Proximitor Sensor |
| Measurement Principle | Eddy-current non-contact measurement |
| Probe Tip Diameter | 5 mm |
| Operating Temperature | -52°C to +177°C (-62°F to +351°F) |
| Cable Jacket Material | FEP |
| Dimensions | Probe Case Length: 210 mm; Total Cable Length: 1.0 m |
| Product Weight | Approx. 0.15 kg |
| Shipping Weight | Approx. 1.5 kg |
| Country of Origin | USA |
