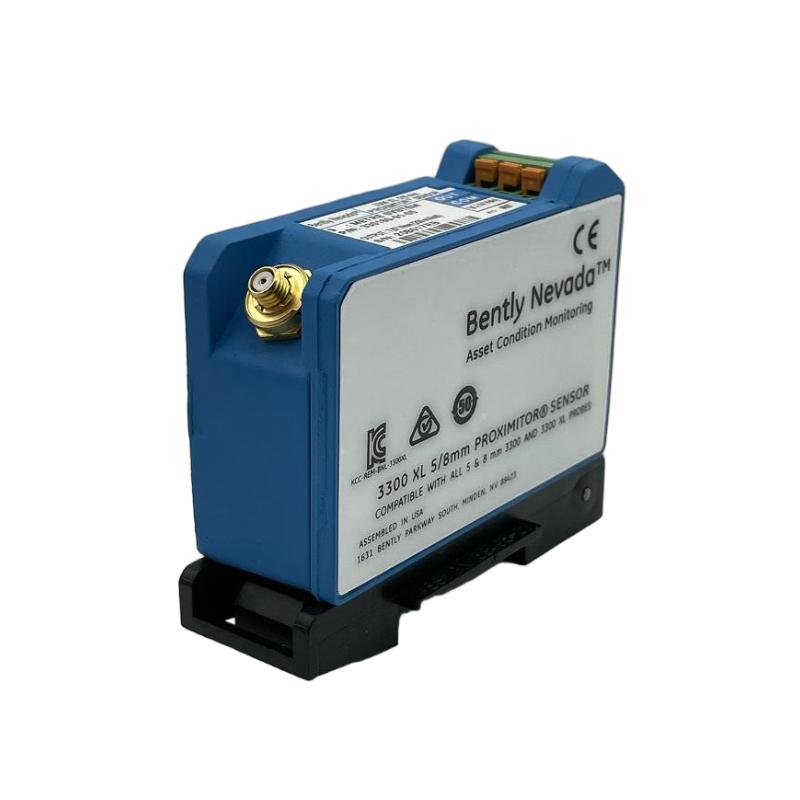

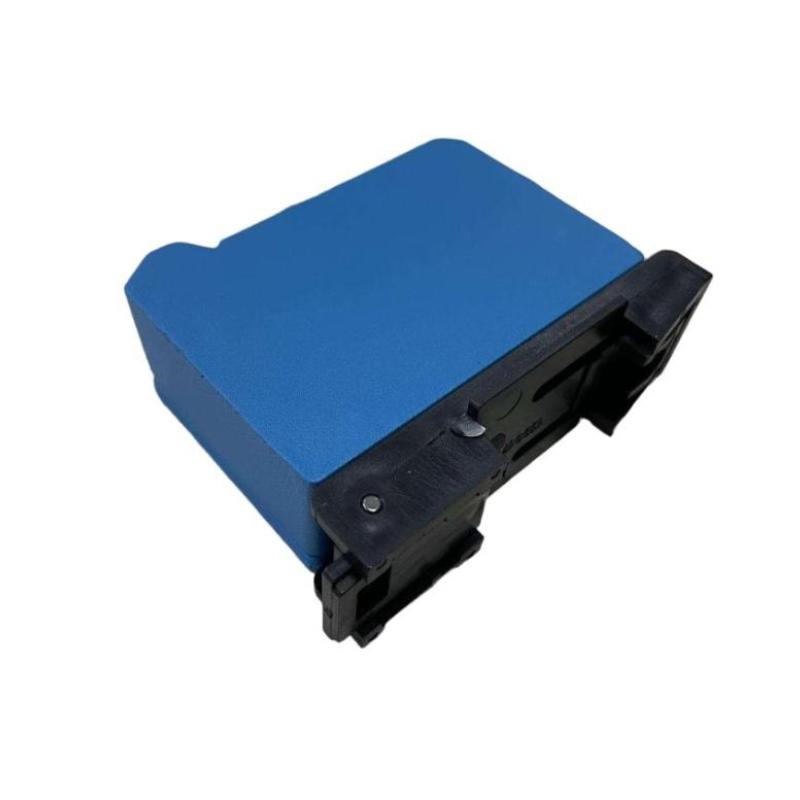

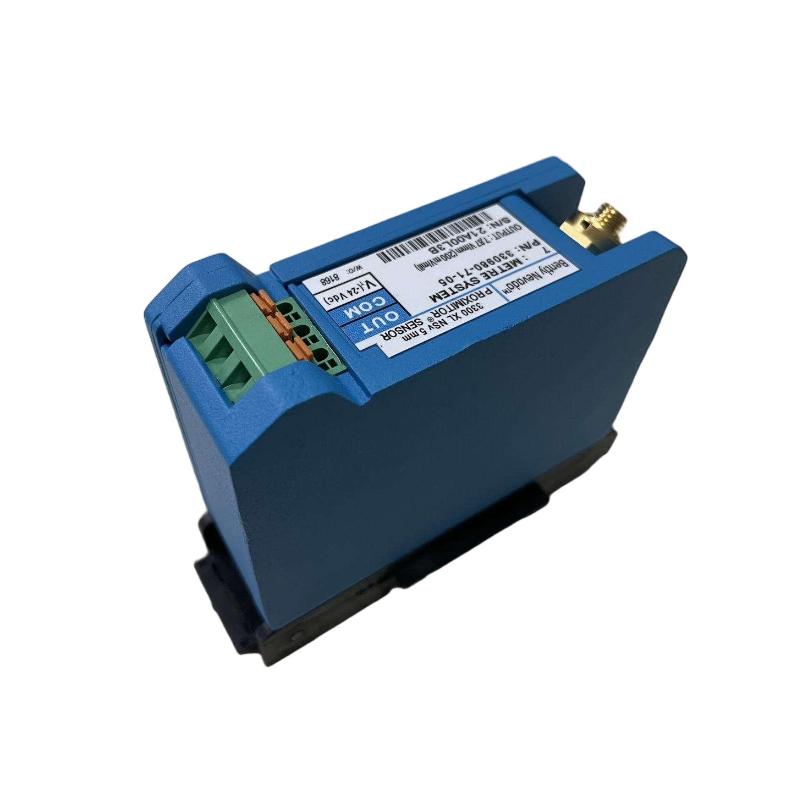

Bently Nevada 330980-71-05 3300 XL NSv Front Sensor

Name: Bently Nevada 330980-71-05 3300 XL NSv Front Sensor
Brand: Bently Nevada PLC
SKU: 9527
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Bently Nevada PLC
Item No.:330980-71-05
Product Origin:USA
Product Dimensions:102 × 72 × 35 mm
Product Weight:1.5kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Product Overview

The Bently Nevada 330980-71-05 3300 XL NSv Proximitor Sensor is a compact eddy-current sensor engineered for the 3300 XL NSv Proximity Transducer System. Designed for machinery with restricted installation space, it operates with compatible 3300 NSv Proximity Probes and 3300 NSv Extension Cables to provide accurate non-contact shaft displacement and vibration measurements.

This configuration features a 7.0 m (23.0 ft) system length, DIN-rail mounting, and the Multiple Approvals (05) option. Its compact housing, SpringLoc terminals, and enhanced immunity to electromagnetic interference make it an excellent choice for equipment upgrades, maintenance projects, and new installations.

Technical Specifications

Specification	Description
Manufacturer	Bently Nevada
Model Number	330980-71-05
Product Type	3300 XL NSv Proximitor Sensor
Product Family	3300 XL NSv
System Length Option	71 – 7.0 m (23.0 ft) System, DIN Mount
Mounting Style	DIN Rail Mount
Agency Approval	05 – Multiple Approvals
Compatible Probe	3300 NSv Proximity Probe
Compatible Extension Cable	3300 NSv Extension Cable
Measurement Principle	Eddy-current non-contact measurement
Average Scale Factor	7.87 V/mm (200 mV/mil)
Linear Measurement Range	1.5 mm (60 mil)
Frequency Response	DC to 10 kHz (typical)
Supply Voltage	-17.5 to -26 VDC
Maximum Current Consumption	12 mA
Output Resistance	50 Ω
Maximum Field Wiring Distance	Up to 305 m (1,000 ft)
Operating Temperature	-52°C to +100°C (-62°F to +212°F)
Housing Material	Cast aluminum
Dimensions	Approx. 102 × 72 × 35 mm (4.02 × 2.83 × 1.38 in)
Product Weight	Approx. 255 g (9 oz)
Shipping Weight	Approx. 1.5 kg
Country of Origin	USA

Typical Applications

The 330980-71-05 is well suited for installations where DIN-rail mounting and compact dimensions are preferred.

Typical applications include:

Centrifugal compressors
Refrigeration compressors
Process gas compressors
Steam turbines
Pumps
Gearboxes
High-speed rotating machinery
Equipment modernization and replacement projects

Its DIN-mount design simplifies cabinet installation while maintaining the measurement performance expected from the 3300 XL NSv product family.

Product Advantages

Genuine Bently Nevada 3300 XL NSv series component.
DIN-rail mounting for fast and convenient installation.
7.0 m total system length configuration.
Multiple Approvals option for international applications.
Compact design for space-limited control cabinets.
Excellent resistance to EMI and RFI interference.
SpringLoc terminals simplify field wiring.
Factory calibrated for dependable measurement accuracy.
Suitable for maintenance, replacement, and spare inventory management.

Technical FAQs

1. What is the Bently Nevada 330980-71-05?
It is a 3300 XL NSv Proximitor Sensor designed for use with compatible 3300 NSv probes and extension cables.

2. What does the "71" option indicate?
The 71 option specifies a 7.0 m (23.0 ft) system length with DIN-rail mounting.

3. What does the "05" suffix represent?
The 05 suffix identifies the Multiple Approvals configuration.

4. Which probes are compatible with this sensor?
It is designed for compatible 3300 NSv Proximity Probes used with matching NSv extension cables.

5. What is the average scale factor?
The average scale factor is 7.87 V/mm (200 mV/mil).

6. What is the linear measurement range?
The sensor provides a 1.5 mm (60 mil) linear measurement range.

7. What supply voltage is required?
The operating voltage is -17.5 to -26 VDC, with a maximum current consumption of 12 mA.

8. What is the operating temperature range?
The specified operating temperature is -52°C to +100°C (-62°F to +212°F).

9. What is the approximate product weight?
The sensor weighs approximately 255 g (9 oz), with a typical shipping weight of 1.5 kg.

10. Why choose the DIN-mount version?
The DIN-mount configuration allows convenient installation inside standard electrical cabinets while delivering the same measurement performance as other 3300 XL NSv Proximitor Sensor configurations.
