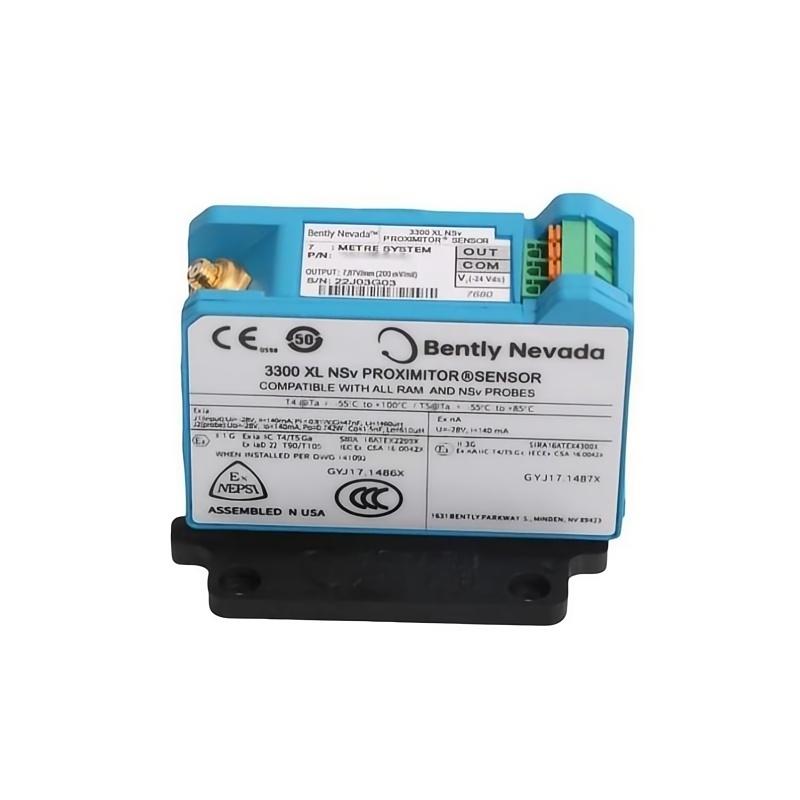

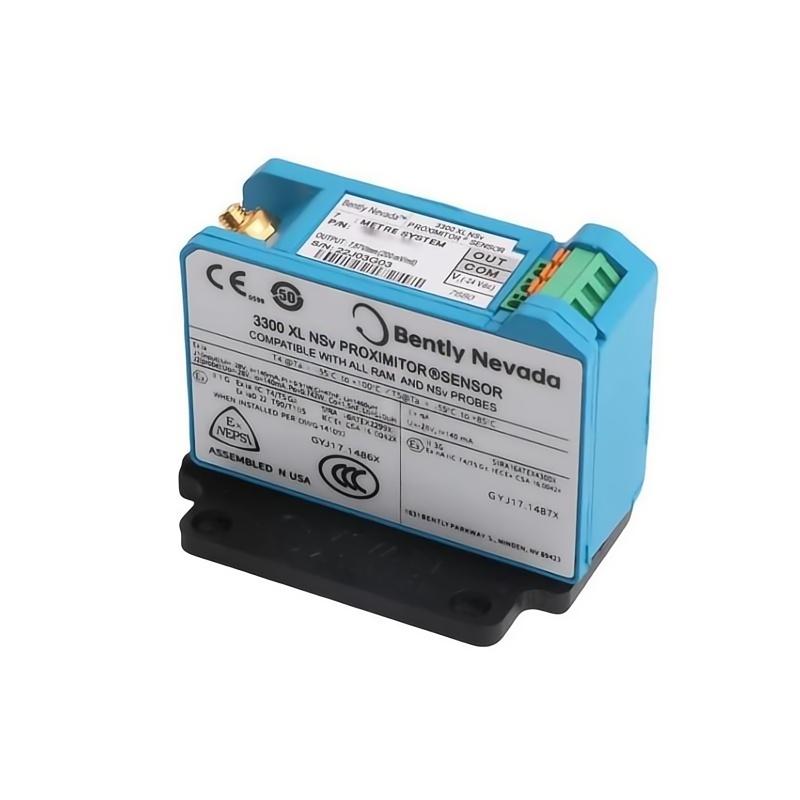

Bently Nevada 330980-91-05 3300 XL NSv Proximitor Sensor

Brand:Bently Nevada PLC
Item No.:330980-91-05
Product Origin:USA
Product Dimensions:102 × 72 × 35 mm
Product Weight:1.5kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

330980-70-CN 2330980-70-CN 4330980-70-CN 1330980-70-CN 3

Product Features

The Bently Nevada 330980-91-05 3300 XL NSv Proximitor Sensor is a compact eddy-current sensor developed for the 3300 XL NSv Proximity Transducer System. It is designed for applications where installation space is limited while maintaining precise non-contact displacement measurement. Working together with compatible 3300 NSv Proximity Probes and 3300 NSv Extension Cables, the sensor forms a complete transducer system suitable for a wide range of rotating equipment. The slim housing supports DIN-rail installation, providing flexible mounting options and simplified panel integration.

This configuration features a 9.0 m (29.5 ft) system length, DIN-rail mounting (Option 91), and the Multiple Approvals (05) certification option. Factory calibration, improved EMI/RFI immunity, and robust electrical characteristics help ensure dependable long-term performance.

Technical Specifications

SpecificationDescription
ManufacturerBently Nevada
Model Number330980-91-05
Product Type3300 XL NSv Proximitor Sensor
Product Family3300 XL NSv
System Length Option91 – 9.0 m (29.5 ft) System
Mounting StyleDIN Rail Mount
Agency Approval05 – Multiple Approvals
Compatible Probe3300 NSv Proximity Probe
Compatible Extension Cable3300 NSv Extension Cable
Measurement PrincipleEddy-current non-contact measurement
Average Scale Factor7.87 V/mm (200 mV/mil)
Linear Measurement Range1.5 mm (60 mil)
Frequency ResponseDC to 10 kHz (typical)
Supply Voltage-17.5 to -26 VDC
Maximum Current Consumption12 mA
Output Resistance50 Ω
Maximum Field Wiring DistanceUp to 305 m (1,000 ft)
Operating Temperature-52°C to +100°C (-62°F to +212°F)
Housing MaterialCast Aluminum
DimensionsApprox. 102 × 72 × 35 mm (4.02 × 2.83 × 1.38 in)
Product WeightApprox. 0.26 kg
Shipping WeightApprox. 1.5 kg
Country of OriginUSA


Typical Applications

The 330980-91-05 is suitable for installations requiring a longer system length and DIN-rail mounting configuration.

Typical applications include:

  • Centrifugal compressors
  • Refrigeration compressors
  • Steam turbines
  • Pumps
  • Gearboxes
  • High-speed rotating equipment
  • Equipment modernization projects
  • Spare parts and replacement programs

Its compact design allows installation in confined equipment cabinets while maintaining reliable measurement performance.


Product Advantages

  • Genuine Bently Nevada 3300 XL NSv series component.
  • 9.0 m total system configuration for extended installation flexibility.

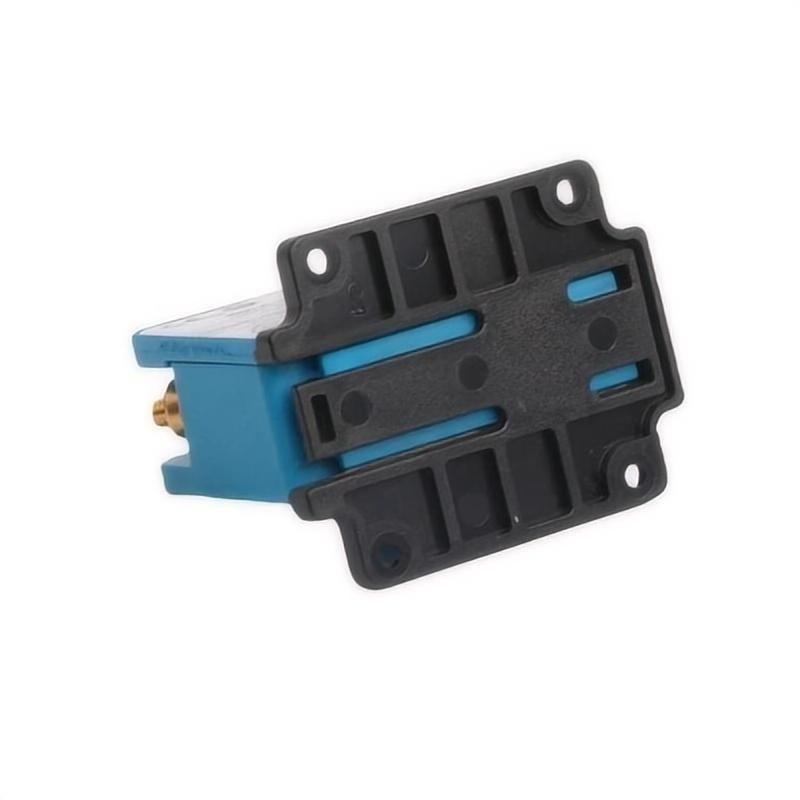

  • DIN-rail mounting simplifies cabinet installation.
  • Multiple Approvals option supports international applications.
  • Compact housing for space-constrained environments.
  • Excellent resistance to electromagnetic interference.
  • SpringLoc terminal design enables fast field wiring.
  • Factory calibrated for consistent measurement accuracy.
  • Ideal for maintenance, replacement, and spare inventory planning.


Technical FAQs

1. What is the Bently Nevada 330980-91-05?
It is a 3300 XL NSv Proximitor Sensor designed for use with compatible 3300 NSv probes and extension cables.

2. What does the "91" option indicate?
The 91 option specifies a 9.0 m (29.5 ft) system length with a DIN-rail mounting configuration.

3. What does the "05" suffix represent?
The 05 suffix identifies the Multiple Approvals configuration.

4. Which probes are compatible with this sensor?
It is designed for compatible 3300 NSv Proximity Probes used with matching NSv extension cables.

5. What is the average scale factor?
The average scale factor is 7.87 V/mm (200 mV/mil).

6. What is the linear measurement range?
The sensor provides a 1.5 mm (60 mil) linear measurement range.

7. What operating voltage is required?
The recommended operating voltage is -17.5 VDC to -26 VDC, with a maximum current consumption of 12 mA.

8. What is the operating temperature range?
The operating temperature range is -52°C to +100°C (-62°F to +212°F).

9. What is the approximate weight of the sensor?
The product weighs approximately 0.26 kg, with a typical shipping weight of 1.5 kg.

10. Why choose the 330980-91-05?
Its compact DIN-mount design, extended system length, factory calibration, and stable electrical performance make it an excellent solution for professional machinery monitoring installations.
