Product Introduction

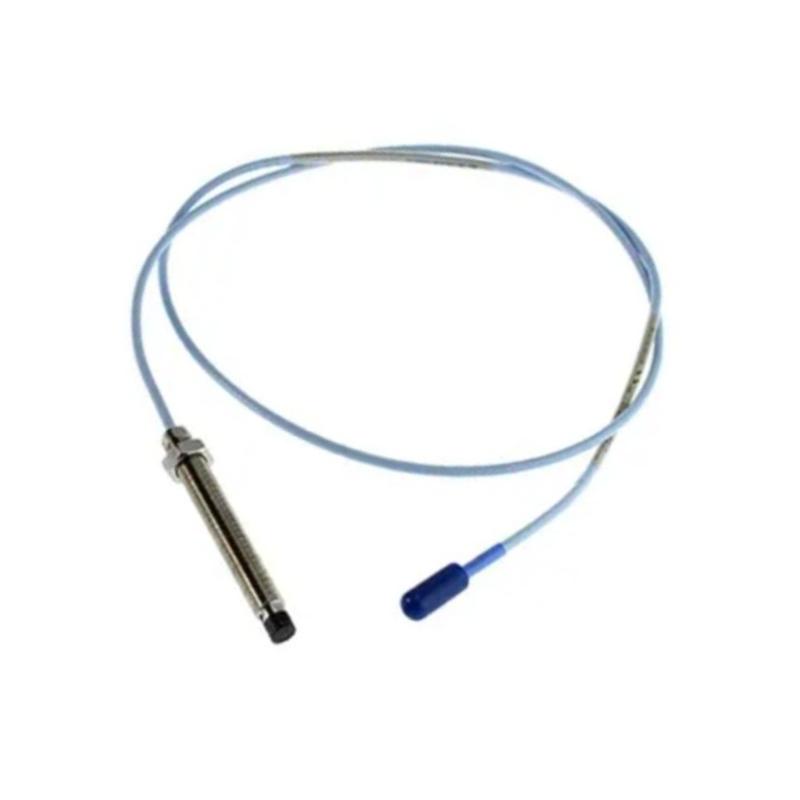

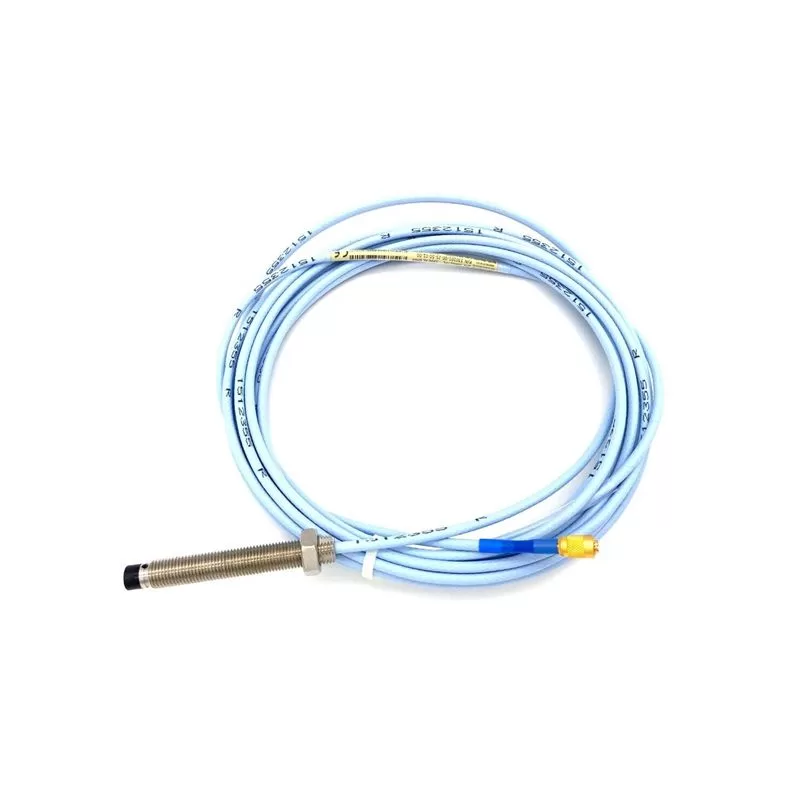

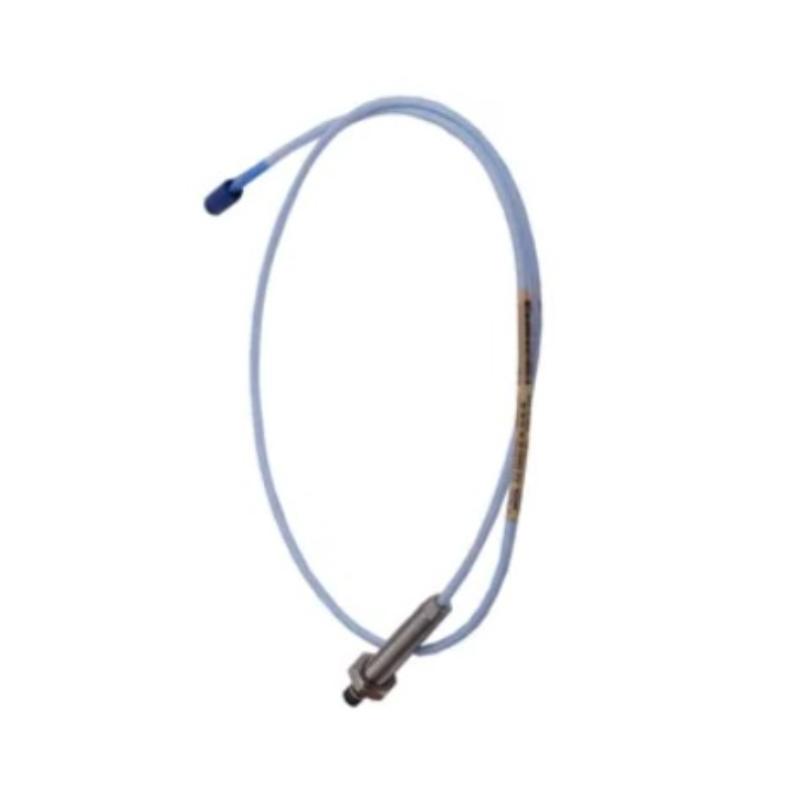

The Bently Nevada 330910-06-13-10-01-CN 3300 NSv Proximity Probe is a compact, armored eddy-current probe designed for the 3300 XL NSv Proximity Transducer System. Its slim sensing tip and M10 × 1 threaded body make it well suited for installations where available mounting space is limited. When used with a compatible 3300 XL NSv Proximitor Sensor and 3300 NSv Extension Cable, it delivers stable, high-accuracy non-contact shaft displacement measurements.
This configuration includes a 60 mm unthreaded length, 130 mm overall case length, 1.0 m integral cable, Miniature ClickLoc connector with connector protector, and the CN approval option for China-certified installations.
Technical Specifications
| Specification | Description |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330910-06-13-10-01-CN |
| Product Type | 3300 NSv Proximity Probe |
| Product Family | 3300 XL NSv |
| Thread Size | M10 × 1 |
| Probe Construction | Armored |
| Unthreaded Length | 60 mm |
| Overall Case Length | 130 mm |
| Total Probe Length | 1.0 m (39 in) |
| Connector Type | Miniature Coaxial ClickLoc Connector with Connector Protector |
| Cable Type | Standard Cable |
| Approval Option | CN |
| Compatible Extension Cable | 3300 NSv Extension Cable |
| Compatible Sensor | 3300 XL NSv Proximitor Sensor |
| Measurement Principle | Eddy-current non-contact measurement |
| Probe Tip Diameter | 5 mm |
| Average Scale Factor | 7.87 V/mm (200 mV/mil) |
| Linear Range | 1.5 mm (60 mil) |
| Operating Temperature | -52°C to +177°C (-62°F to +351°F) |
| Probe Case Material | AISI 304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Cable Jacket | FEP |
| Dimensions | Case Length: 130 mm; Total Cable Length: 1.0 m |
| Product Weight | Approx. 0.15 kg |
| Shipping Weight | Approx. 0.32 kg |
| Country of Origin | USA |
