Product Overview

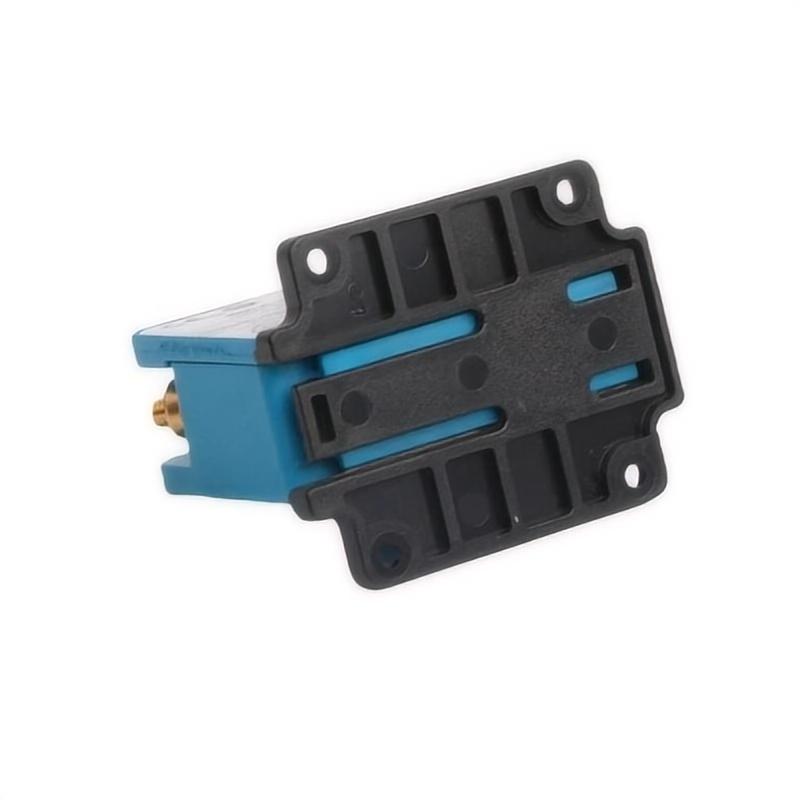

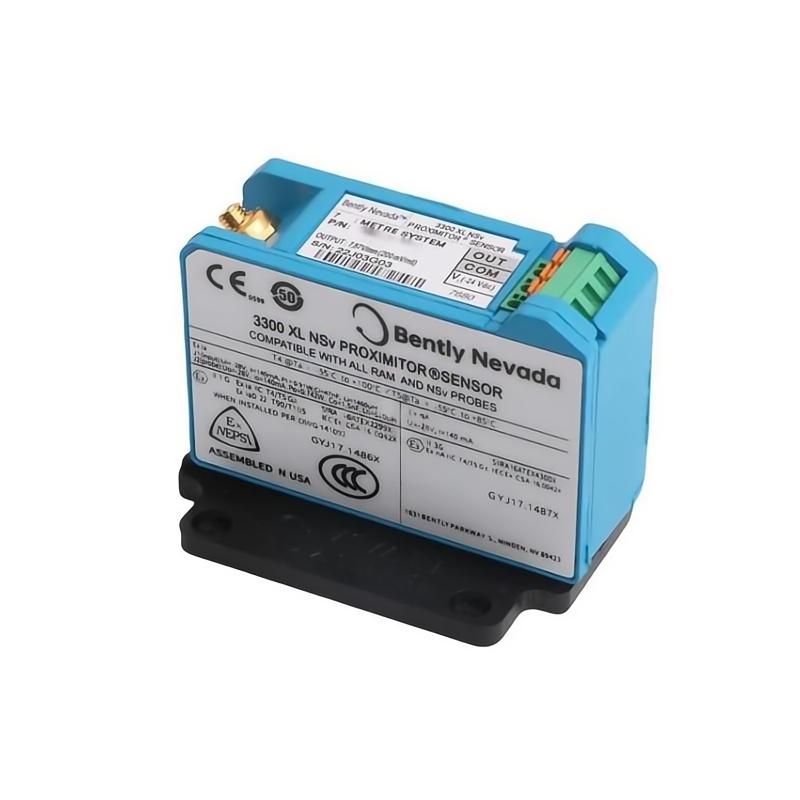

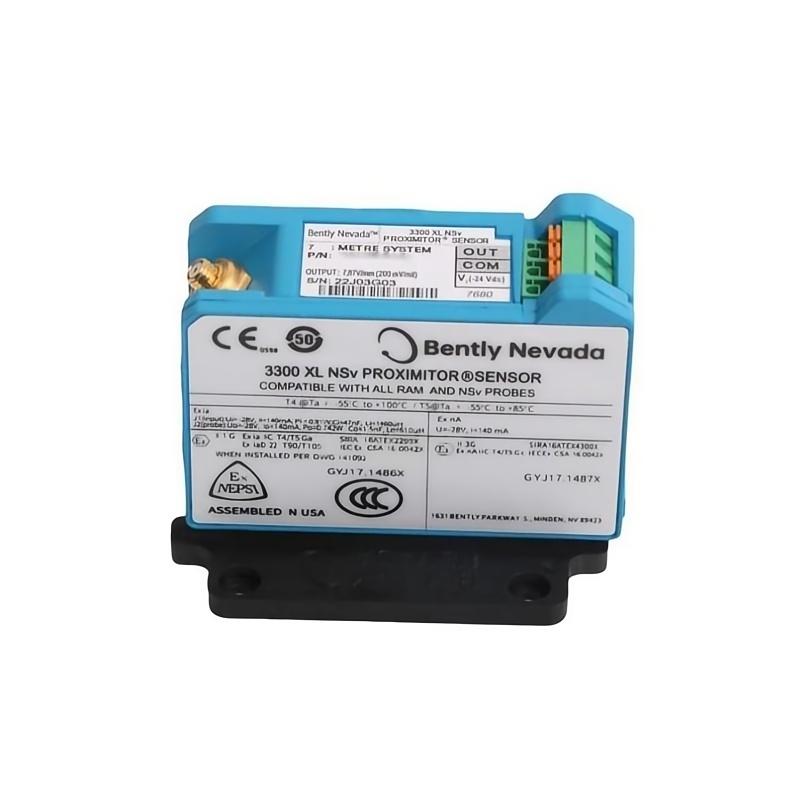

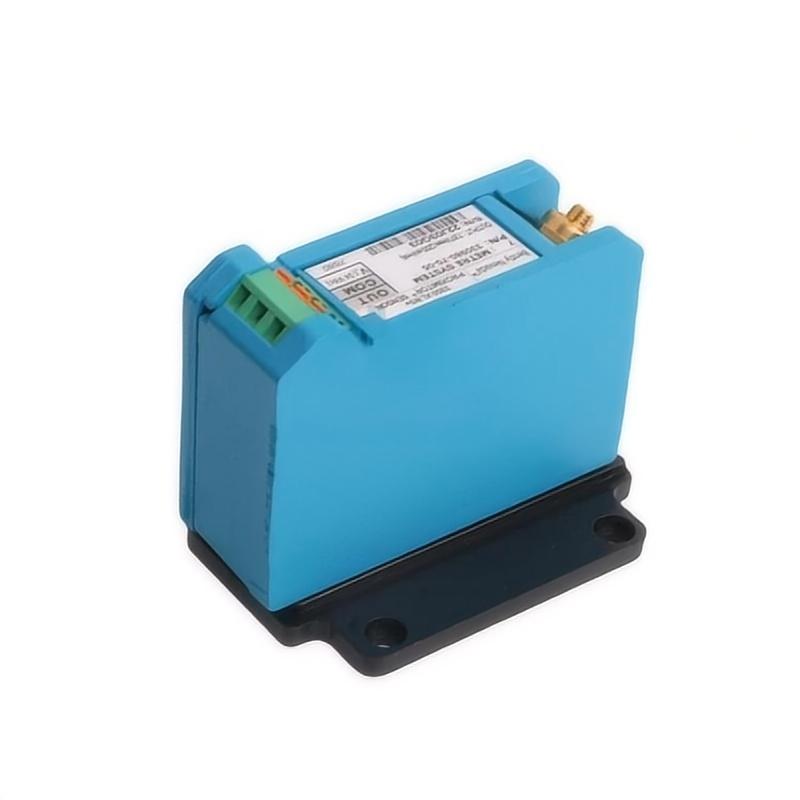

The Bently Nevada 330980-70-00 3300 XL NSv Proximitor Sensor is a compact non-contact sensor designed for the 3300 XL NSv Proximity Transducer System. Engineered for installations with limited mounting space, it works together with compatible 3300 NSv probes and 3300 NSv extension cables to provide accurate displacement measurement within the complete transducer system. The slim housing supports both panel mounting and DIN-rail installation, making it suitable for new installations as well as replacement projects.
Configured with a 7.0-meter system length, panel-mount housing (Option 70), and Agency Approval Option 00 (Not Required), this model delivers dependable performance, excellent electromagnetic immunity, and simplified installation for demanding equipment monitoring applications.
Technical Specifications
| Specification | Description |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330980-70-00 |
| Product Type | 3300 XL NSv Proximitor Sensor |
| Product Family | 3300 XL NSv |
| System Length Option | 70 – 7.0 m (23.0 ft) System |
| Mounting Configuration | Panel Mount |
| Agency Approval | 00 – Not Required |
| Compatible Probe | 3300 NSv Proximity Probe |
| Compatible Extension Cable | 3300 NSv Extension Cable |
| Measurement Principle | Eddy-current displacement measurement |
| Average Scale Factor | 7.87 V/mm (200 mV/mil) |
| Linear Range | 1.5 mm (60 mil) |
| Frequency Response | DC to 10 kHz (typical) |
| Supply Voltage | -17.5 to -26 VDC |
| Maximum Current Consumption | 12 mA |
| Output Resistance | 50 Ω |
| Operating Temperature | -51°C to +100°C (-60°F to +212°F) |
| Housing Material | Cast aluminum |
| Dimensions (Panel Mount) | Approx. 89.4 × 70.8 × 31.7 mm (3.52 × 2.79 × 1.25 in) |
| Product Weight | Approx. 255 g (9 oz) |
| Shipping Weight | Approx. 1.3 kg |
| Country of Origin | USA |
