Overview — Flexible Reverse-Mount Solution for Complex Machinery Installations

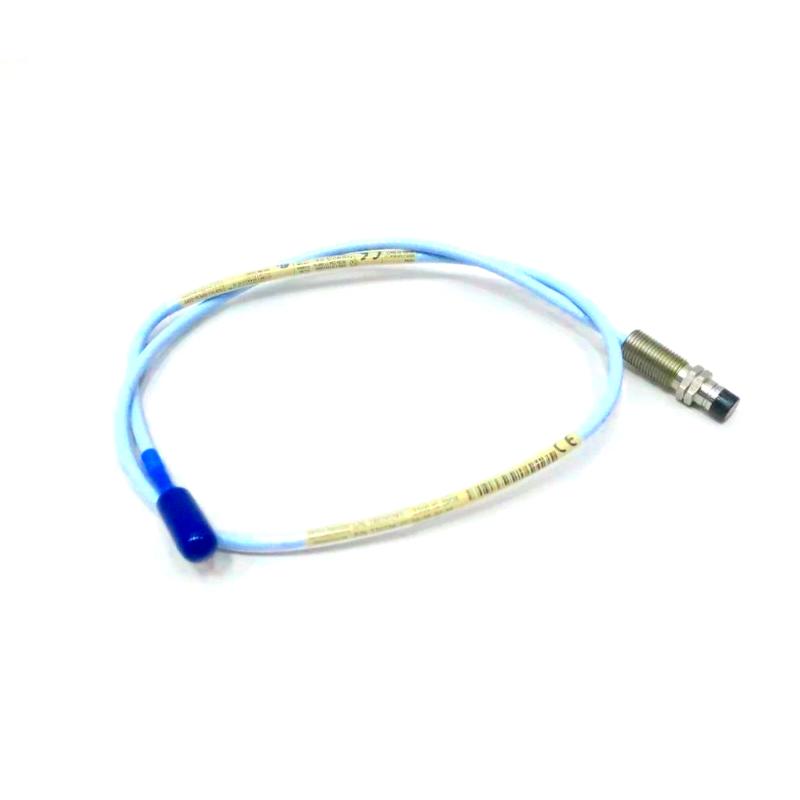

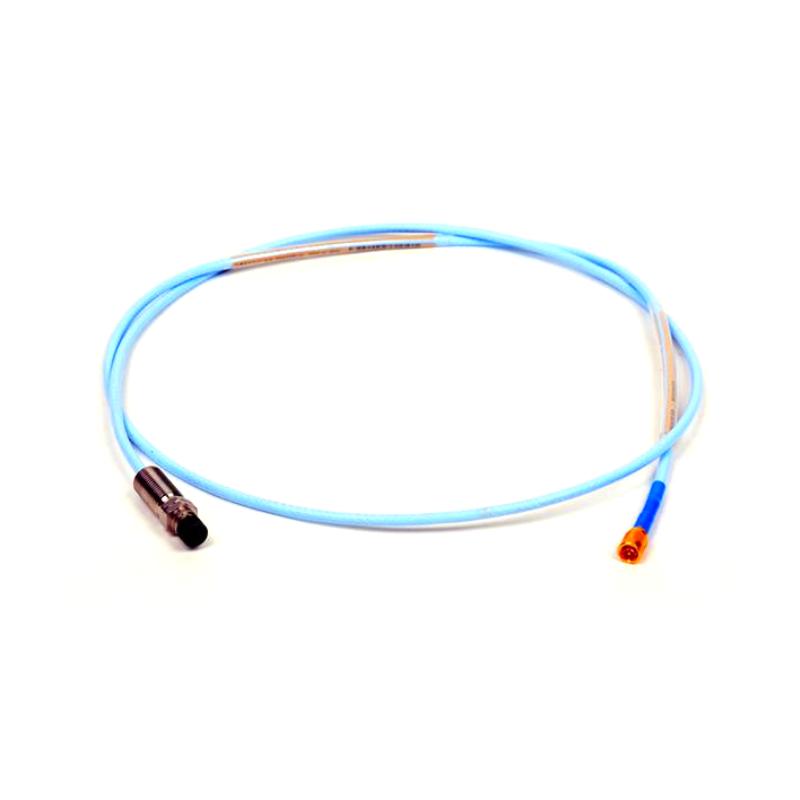

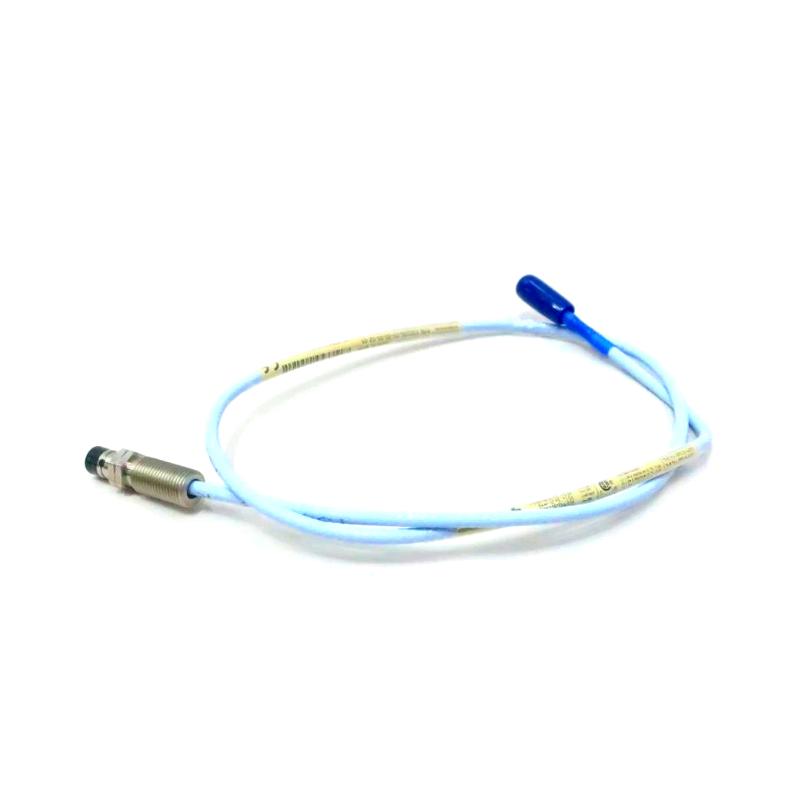

The Bently Nevada 330106-05-30-10-12-00 3300 XL Reverse Mount Probe is a precision eddy-current proximity probe engineered for continuous vibration, shaft position, and displacement monitoring in critical rotating equipment.
Designed as part of the 3300 XL 8 mm Proximity Transducer System, this reverse mount configuration is ideal for applications with restricted mounting access where conventional probe installation is impractical. The model features M10 × 1 metric threads, a 1.0 m total length, and a FluidLoc cable connector configuration, delivering reliable long-term performance in demanding industrial environments.
The 3300 XL platform supports complete interchangeability between probes, extension cables, and Proximitor® sensors without requiring individual component matching or bench calibration.
Technical Specifications — Mechanical & System Data
| Parameter | Details |
|---|---|
| Product Type | 3300 XL 8 mm Reverse Mount Probe |
| Model Number | 330106-05-30-10-12-00 |
| Measurement Technology | Eddy-current non-contact sensing |
| Probe Diameter | 8 mm |
| Mounting Type | Reverse mount |
| Thread Type | M10 × 1 metric thread |
| Total Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature ClickLoc® coaxial connector with FluidLoc cable option |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 303/304 stainless steel |
| Operating Temperature | -51°C to +177°C |
| System Compatibility | 3300 XL Proximitor® Sensor and Extension Cable |
| Approximate Dimensions | 100 × 1 × 1 cm |
| Approximate Weight | 0.45–0.70 kg |
