Product Introduction

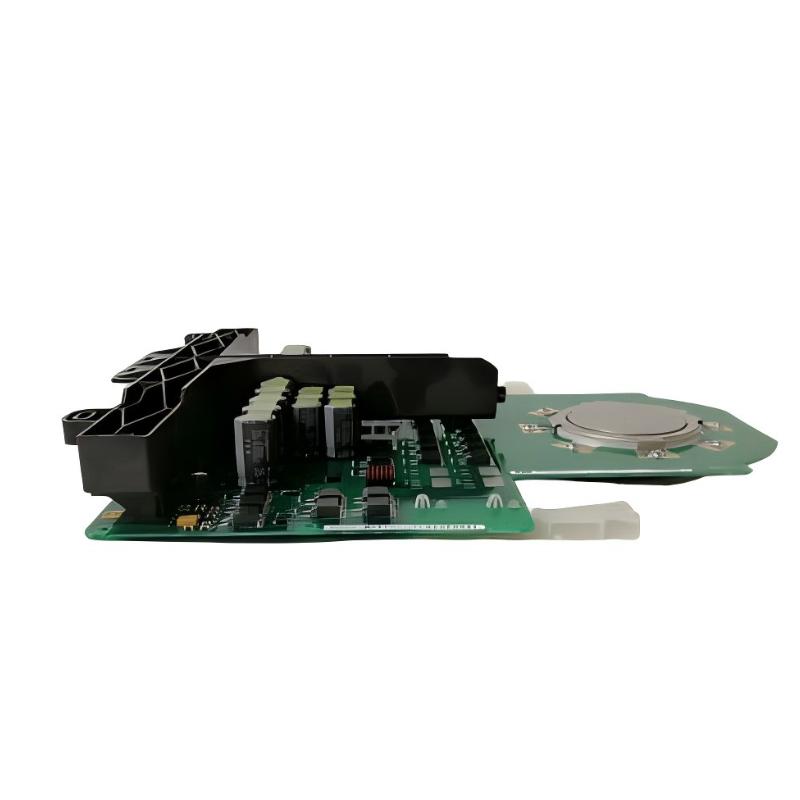

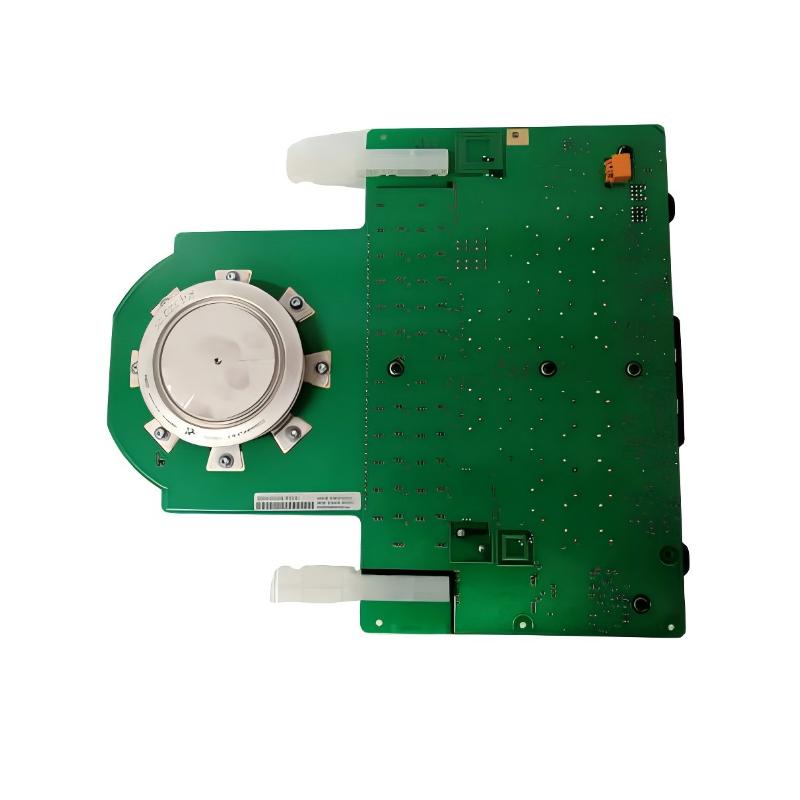

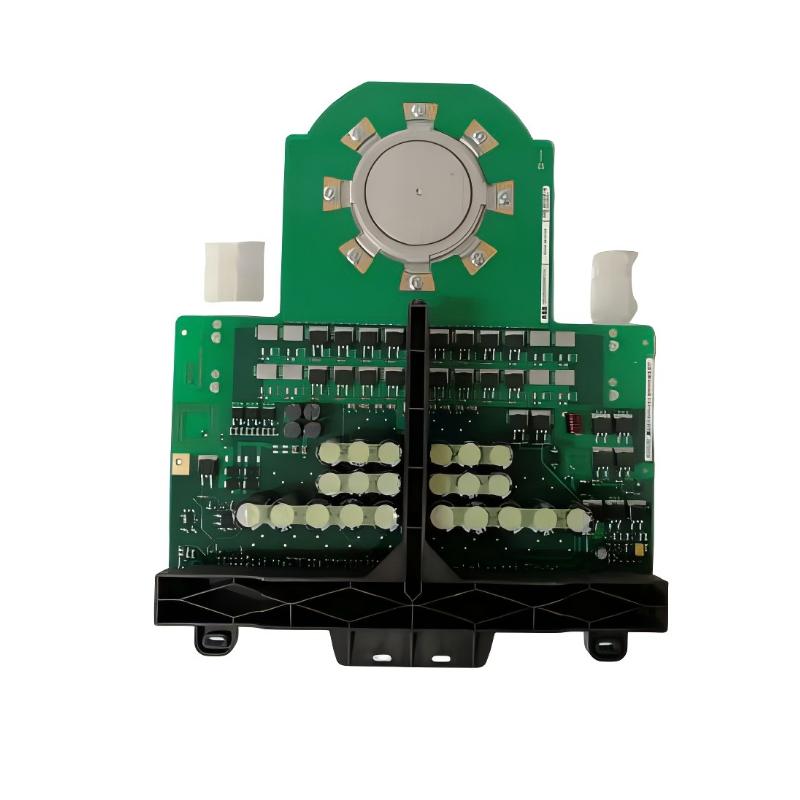

The ABB 5SHX1445H0002 3BHL000387P0101 IGCT Module is a high-performance power semiconductor component designed for large-scale industrial power conversion systems. By combining the strengths of traditional thyristors with modern gate-controlled switching technology, IGCT modules deliver exceptional reliability and efficiency in medium-to-high power applications.
In industrial drive systems and power grid infrastructure, these modules play a critical role in regulating electrical energy. They are typically installed within converter assemblies where precise switching control is required to manage voltage and current levels.
The device is engineered to operate under demanding electrical loads and thermal conditions commonly found in heavy industry. Its design supports integration into advanced power electronics architectures used in applications such as motor drives, grid compensation systems, and large industrial inverters.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | IGCT Power Semiconductor Module |
| Manufacturer | ABB |
| Model Numbers | 5SHX1445H0002 / 3BHL000387P0101 |
| Device Technology | Integrated Gate Commutated Thyristor (IGCT) |
| Typical Applications | Medium-Voltage Drives, Power Converters |
| Mounting Method | Industrial Power Module Assembly |
| Cooling Method | External Heat Sink / System Cooling |
| Dimensions | 120 mm × 60 mm × 40 mm |
| Weight | 1.2 kg (2.65 lb) |
Application Landscape in High-Power Electronics
The ABB 5SHX1445H0002 3BHL000387P0101 IGCT Module is engineered for high-power switching applications in industrial power conversion systems. Integrated Gate Commutated Thyristor (IGCT) technology combines the efficiency of thyristors with the controllability of modern gate-driven devices, making it highly suitable for demanding energy conversion environments.
Typical industrial deployments include:
-
Medium-voltage motor drives used in mining and heavy manufacturing
-
High-power industrial inverters for steel and cement plants
-
Static VAR compensators used in power grid stabilization
-
Traction converters in railway propulsion systems
-
Renewable energy power conversion units requiring reliable switching devices
In these systems, the IGCT module provides efficient switching control, enabling stable power flow and precise energy management.
Core Advantages for Power Electronics Systems
High Switching Efficiency
IGCT technology offers very low conduction losses compared with many other power semiconductor devices, which improves overall system efficiency.
Fast Turn-Off Capability
Unlike conventional thyristors, IGCT modules allow rapid turn-off through gate control, enabling precise power regulation in dynamic load environments.
High Current Handling Performance
The module is designed for operation in high-current applications, making it suitable for large industrial drive systems and grid-level power electronics.
Robust Thermal Performance
The device structure supports efficient heat transfer when installed with industrial cooling systems, allowing stable operation under heavy electrical loads.
Optimized for Medium-Voltage Drives
IGCT modules are widely used in medium-voltage converters where reliability, efficiency, and durability are critical.
Technical FAQs
1. What distinguishes an IGCT from a conventional thyristor?
An IGCT includes an integrated gate drive structure that allows rapid turn-off, giving it switching capabilities similar to power transistors while maintaining the robustness of thyristors.
2. In what types of converters is the 5SHX1445H0002 typically used?
It is commonly used in medium-voltage inverters, industrial drive converters, and grid support equipment.
3. How does the IGCT achieve fast switching performance?
The device uses a high-current gate drive circuit that rapidly extracts charge from the semiconductor structure, enabling quick turn-off.
4. What cooling methods are typically used with IGCT modules?
Industrial systems generally use heat sinks or liquid cooling assemblies to maintain safe operating temperatures.
5. Can this module be used in renewable energy power converters?
Yes, IGCT devices are frequently used in wind power and grid interface converters due to their efficiency and durability.
6. What is the role of the gate drive unit in IGCT operation?
The gate drive unit controls switching events and ensures that the device can turn on and off rapidly under high current conditions.
7. How does the module handle electrical stress in high-power systems?
It is designed with robust semiconductor layers and protective structures to withstand high voltage and current conditions.
8. Are IGCT modules suitable for long-duration industrial operation?
Yes, they are specifically developed for continuous-duty power electronics systems in heavy industry.
9. What protective measures are commonly used with IGCT modules?
Systems often include snubber circuits, voltage monitoring, and thermal protection to safeguard the device.
10. Can the module operate in high-frequency switching applications?
IGCT devices operate at moderate switching frequencies and are optimized for high-power efficiency rather than extremely high-frequency operation.
