Introduction — Reliable Signal Connectivity for Advanced Machinery Protection

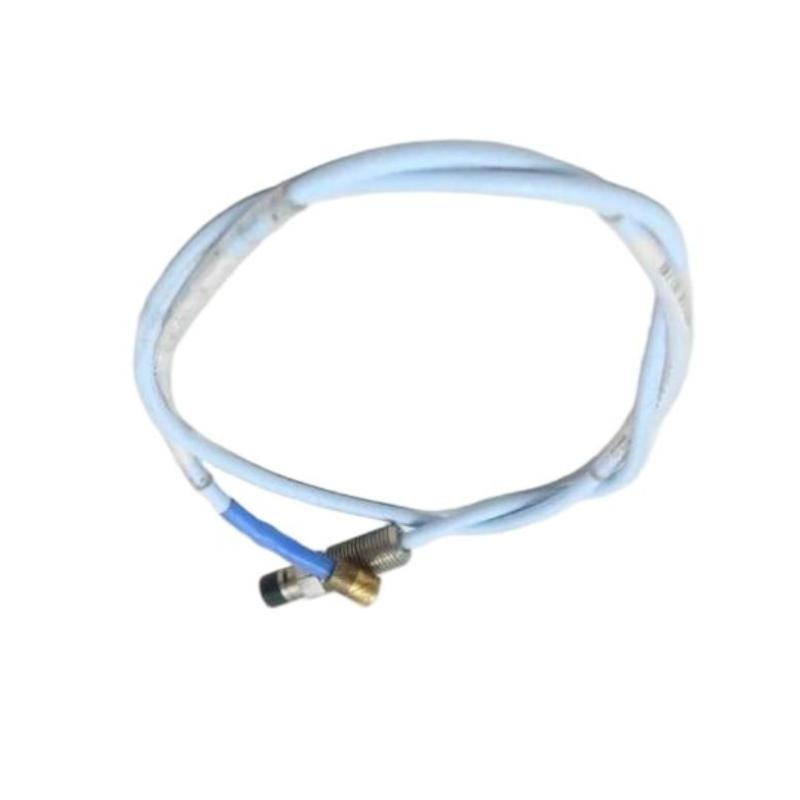

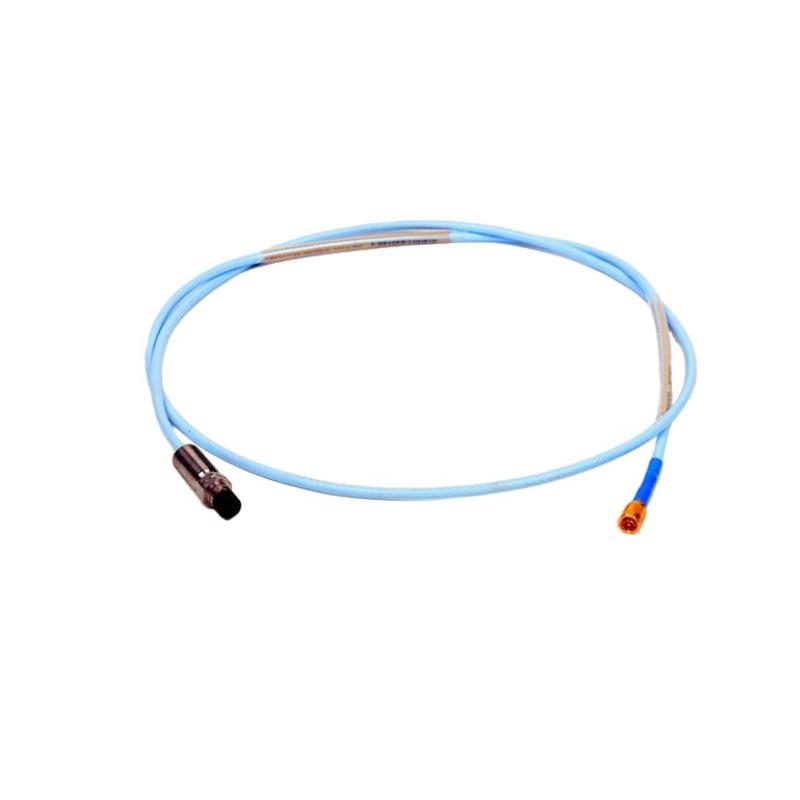

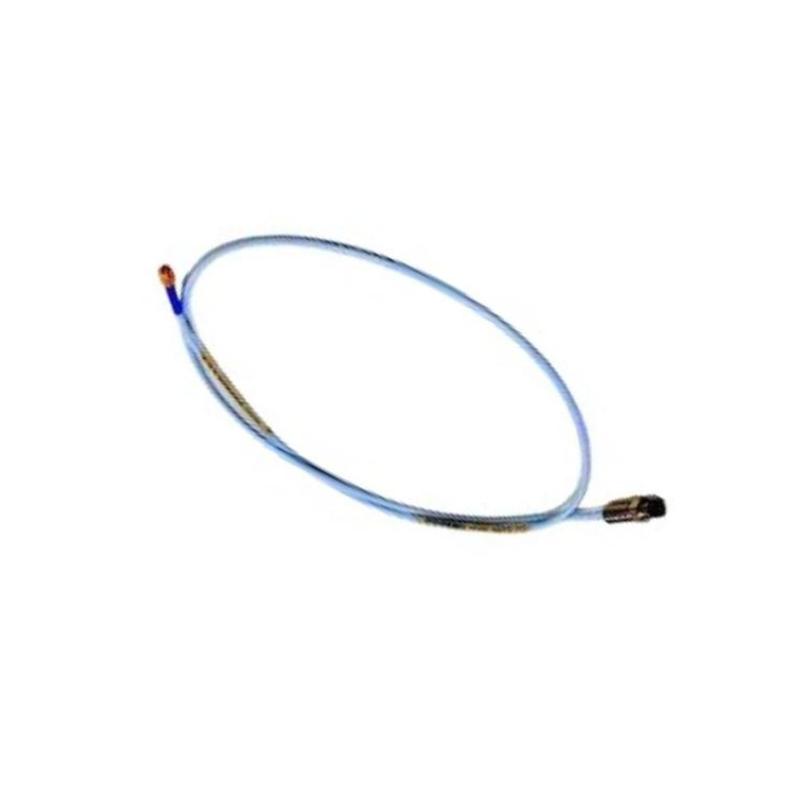

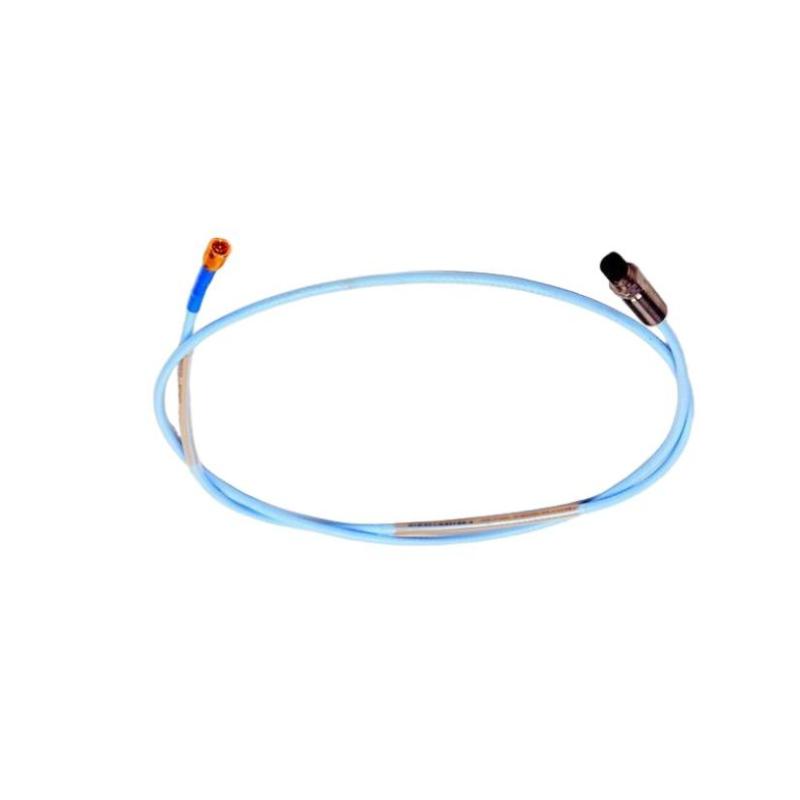

The Bently Nevada 330106-05-30-02-CN 3300 XL Proximitor Sensor Extension Cable is an industrial-grade signal transmission component designed to support the 3300 XL proximity transducer system. It provides a secure connection between compatible proximity probes and Proximitor® sensors, ensuring accurate vibration, displacement, and shaft position measurements in critical rotating equipment. The 3300 XL system is designed for component interchangeability and compliance with demanding machinery protection applications.
Engineered for continuous operation, this extension cable is widely deployed in turbines, compressors, generators, pumps, and other high-value industrial assets where reliable signal transmission is essential for predictive maintenance programs. The CN suffix generally indicates a country-specific certification configuration.
Technical Specifications — Mechanical & Electrical Data
| Parameter | Details |
|---|---|
| Product Type | 3300 XL Proximitor Sensor Extension Cable |
| Model Number | 330106-05-30-02-CN |
| Series | Bently Nevada 3300 XL |
| System Compatibility | 3300 XL Proximity Transducer System |
| Cable Construction | 75 Ω low-noise shielded coaxial cable |
| Connector Type | Miniature ClickLoc® coaxial connector |
| Connector Material | Gold-plated corrosion-resistant contacts |
| Signal Function | Probe-to-Proximitor® signal transmission |
| Operating Temperature | Up to 177°C (standard system applications) |
| Installation Type | Inline industrial connection |
| Environmental Resistance | Vibration, oil, and EMI resistant |
| Certification Option | CN regional approval configuration |
| Approximate Dimensions | Configuration dependent |
| Approximate Weight | 0.2–0.8 kg |
