Introduction — High-Length Signal Integrity Link for Critical Machinery Systems

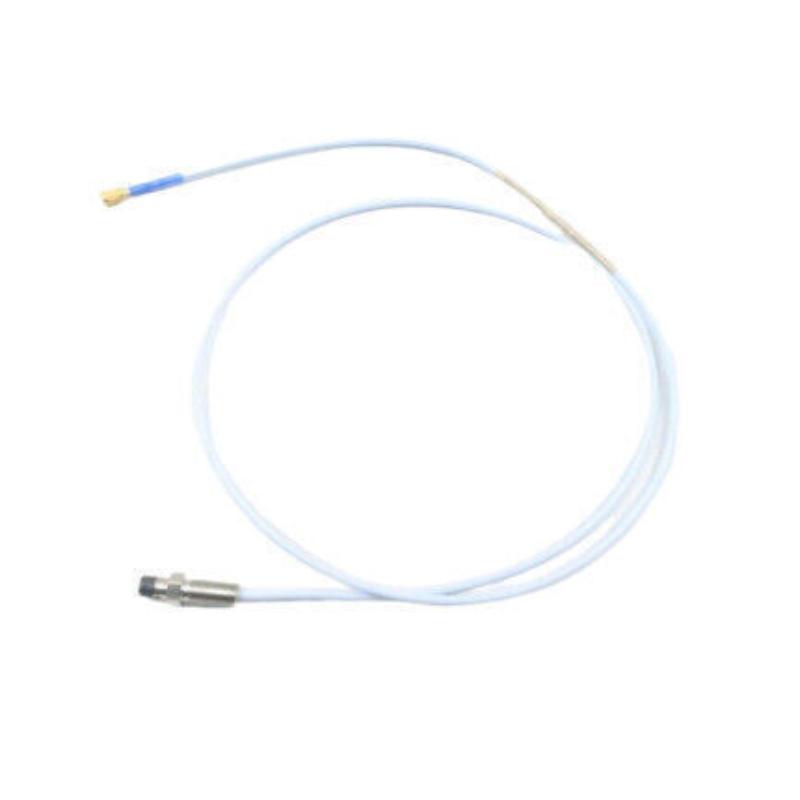

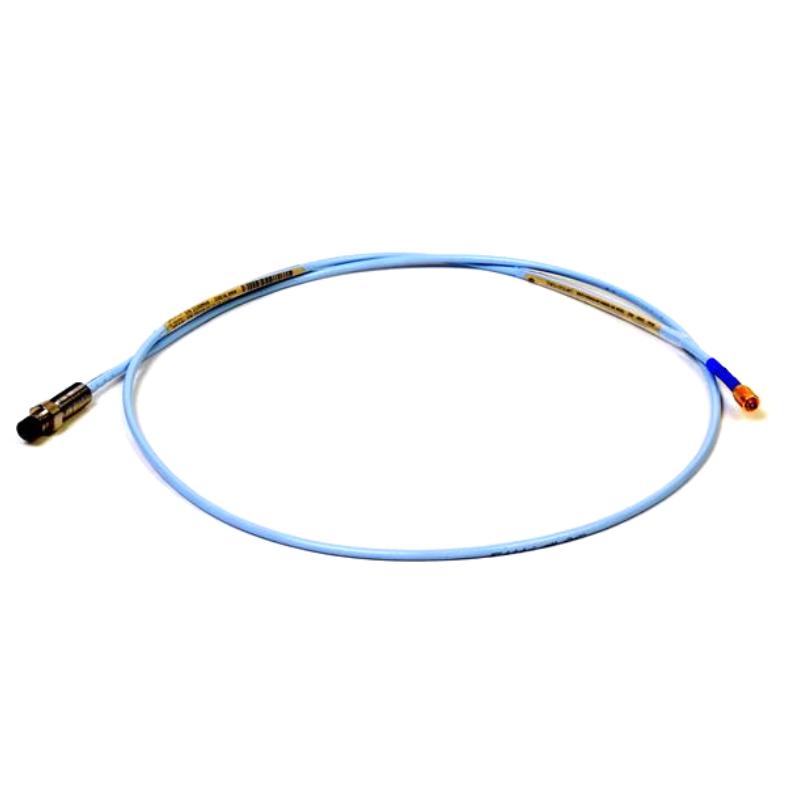

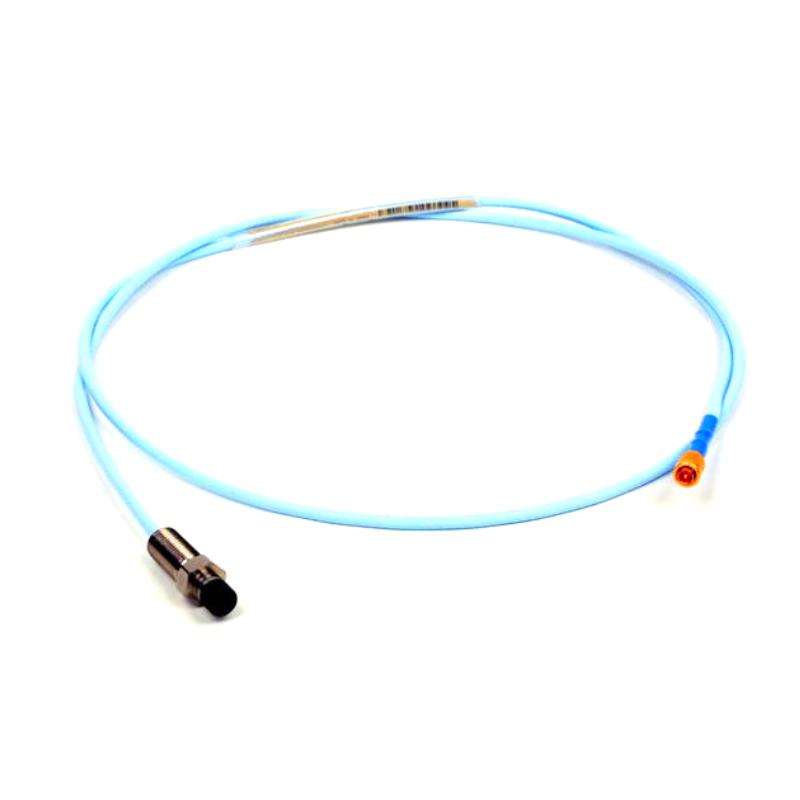

The Bently Nevada 330105-02-12-90-02-00 3300 XL Extension Cable is a high-reliability interconnect component used in the 3300 XL proximity transducer system to transmit eddy-current probe signals to the Proximitor® sensor with maximum stability and minimal noise interference.
Designed for continuous operation in harsh industrial environments, this extension cable is widely used in turbines, compressors, pumps, and generators where accurate vibration and displacement monitoring is essential for machinery protection and predictive maintenance. The system ensures consistent signal integrity even in high vibration, temperature variation, and electromagnetic interference conditions.
The “90” configuration typically represents an extended cable length variant, used in installations requiring greater physical separation between the probe and monitoring electronics.
Technical Specifications — Mechanical & Electrical Data
| Parameter | Details |
|---|---|
| Product Type | 3300 XL Extension Cable |
| Model Number | 330105-02-12-90-02-00 |
| System Compatibility | Bently Nevada 3300 XL proximity transducer system |
| Function | Probe-to-Proximitor signal transmission |
| Cable Type | 75 Ω low-noise coaxial cable |
| Cable Length | ~9.0 m (typical interpretation of “90” configuration family) |
| Connector Type | Miniature ClickLoc® coaxial connector |
| Shielding | Industrial EMI-shielded coaxial design |
| Operating Temperature | -52°C to +177°C |
| Environmental Resistance | Oil-resistant, vibration-resistant construction |
| Installation Type | Inline extension between probe and Proximitor sensor |
| Approx. Weight | ~0.3–1.2 kg (configuration dependent) |
| System Use | Continuous condition monitoring systems |
