Introduction — High-Reliability Signal Link for 3300 XL Monitoring Architecture

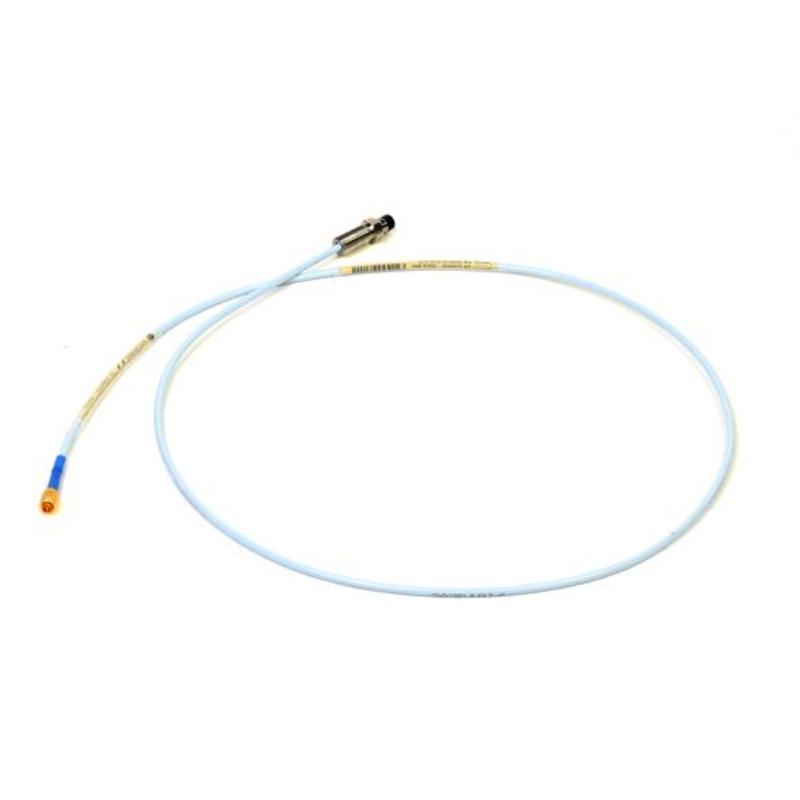

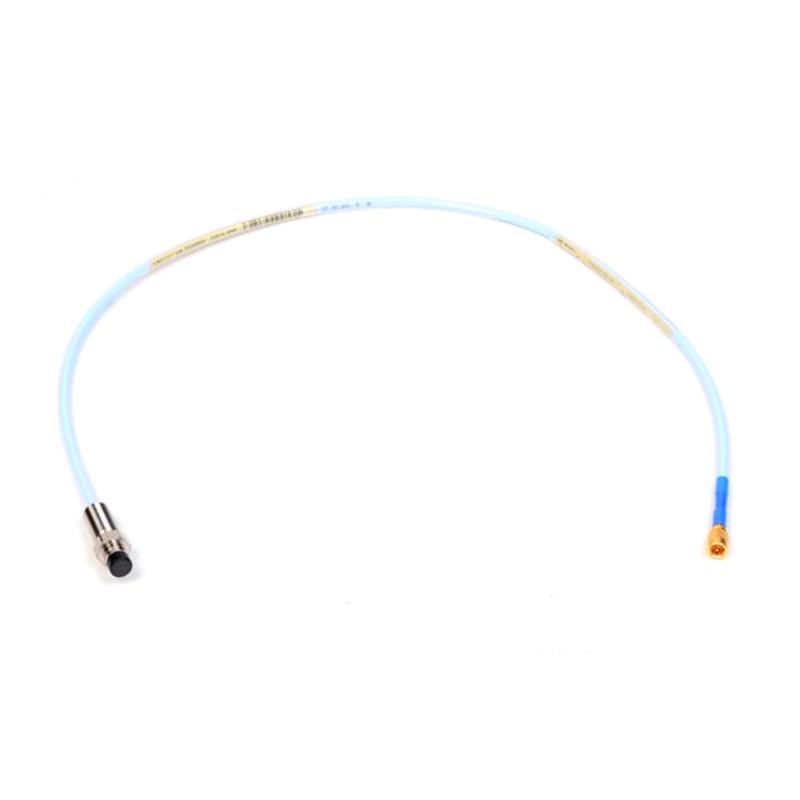

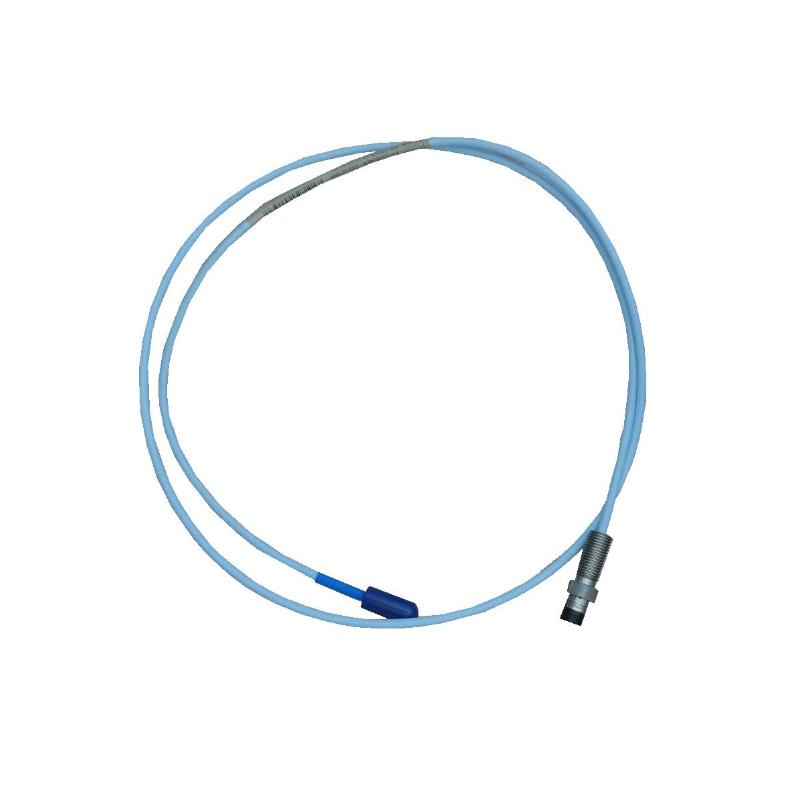

The Bently Nevada 330105-02-12-90-02-00 3300 XL Extension Cable is a precision-engineered interconnection component designed to transmit low-noise eddy-current signals between proximity probes and Proximitor® sensors within the 3300 XL vibration monitoring system.
It plays a critical role in ensuring stable signal integrity in rotating machinery protection systems used across turbines, compressors, pumps, and generators. Built with industrial-grade shielding and ClickLoc® connectors, it supports continuous operation in high-vibration, electrically noisy, and harsh industrial environments.
The “90” configuration typically corresponds to an extended cable length variant within the 3300 XL family, commonly used in installations requiring greater physical separation between sensing and processing modules.
Technical Specifications — Mechanical & Electrical Data
| Parameter | Details |
|---|---|
| Product Type | 3300 XL Extension Cable |
| Model Number | 330105-02-12-90-02-00 |
| System Compatibility | Bently Nevada 3300 XL proximity transducer system |
| Function | Probe-to-Proximitor signal transmission |
| Cable Type | 75 Ω low-noise coaxial cable |
| Cable Length | 9.0 m (typical interpretation of “90” configuration) |
| Connector Type | Miniature ClickLoc® coaxial connector |
| Shielding | Industrial EMI-shielded coaxial construction |
| Operating Temperature | -52°C to +177°C |
| Environmental Resistance | Oil-resistant, vibration-resistant industrial design |
| Installation Type | Inline extension cable between probe and Proximitor sensor |
| Approx. Weight | ~0.3–1.2 kg (configuration dependent) |
| System Use | Continuous machinery condition monitoring |
