Introduction — High-Integrity Signal Transmission for 3300 XL Proximity Systems

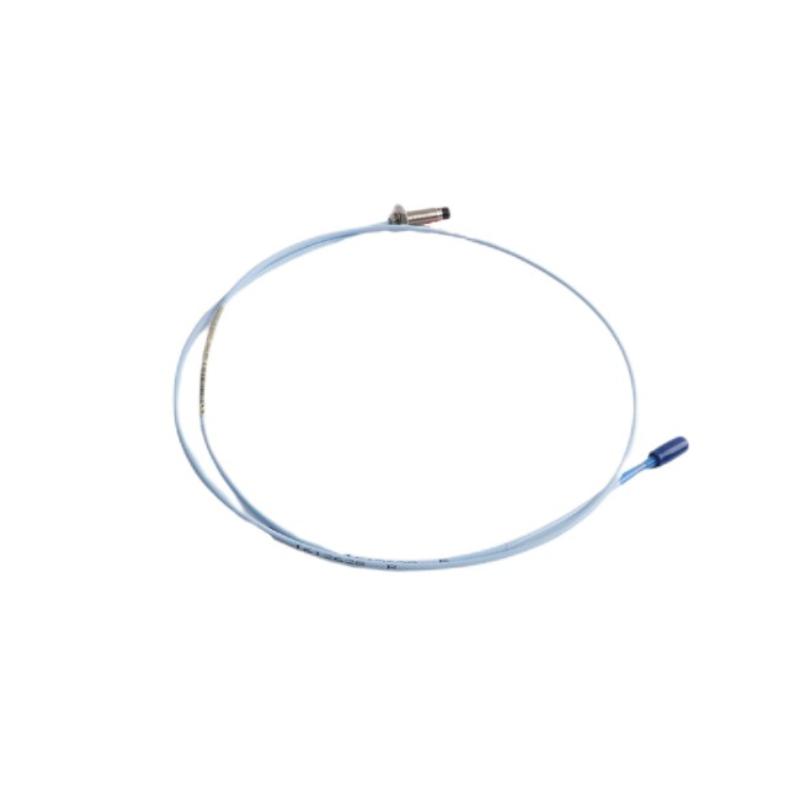

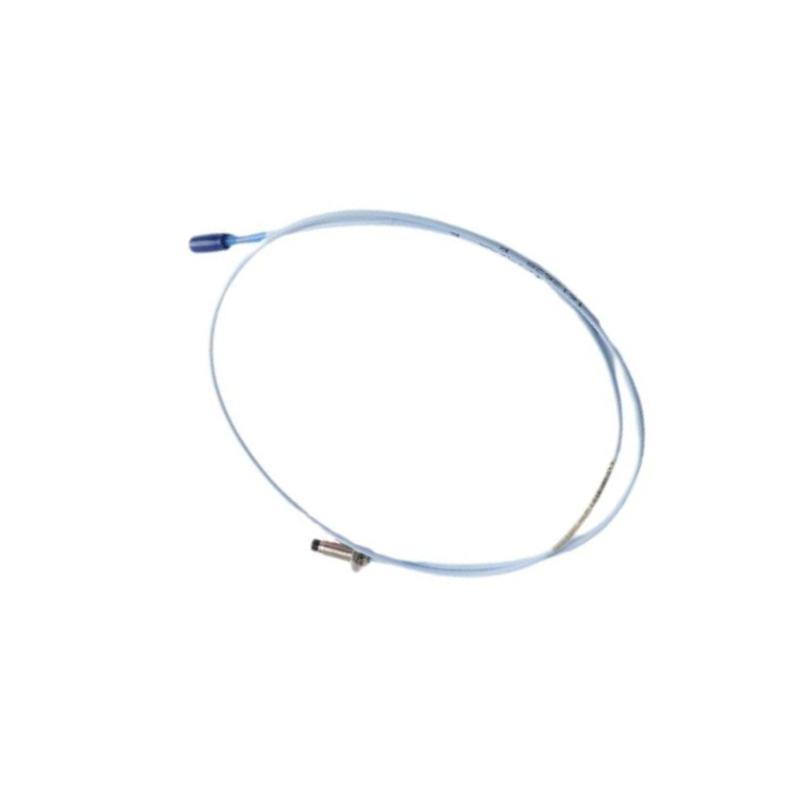

The Bently Nevada 330105-02-12-10-05-05 3300 XL Extension Cable is an industrial-grade interconnection component designed for use within the 3300 XL proximity transducer system. It provides reliable, low-noise signal transmission between the proximity probe and the Proximitor® sensor, ensuring accurate vibration and position measurements in rotating machinery.
Engineered for continuous operation in demanding industrial environments, this extension cable is widely used in turbines, compressors, pumps, and generators across power plants, oil & gas facilities, petrochemical industries, and heavy manufacturing operations. Its shielded coaxial construction and ClickLoc® connector system ensure stable signal integrity even under high vibration and electrical noise conditions.
The “10-05-05” configuration variant belongs to a specialized ordering structure typically used for extended system routing and application-specific compliance requirements within the 3300 XL ecosystem.
Technical Specifications — Mechanical & Electrical Data
| Parameter | Details |
|---|---|
| Product Type | 3300 XL Extension Cable |
| Model Number | 330105-02-12-10-05-05 |
| System Compatibility | Bently Nevada 3300 XL proximity transducer system |
| Function | Probe-to-Proximitor signal transmission |
| Cable Type | 75 Ω low-noise coaxial cable |
| Connector Type | Miniature ClickLoc® coaxial connector |
| Cable Construction | Shielded industrial-grade coaxial design |
| Signal Type | Eddy-current proximity transducer signal |
| Operating Temperature | -52°C to +177°C |
| Environmental Resistance | Oil-resistant, vibration-resistant industrial design |
| Installation | Inline extension between probe and Proximitor sensor |
| Approx. Weight | ~0.2–0.8 kg (configuration dependent) |
| Application Class | Industrial machinery condition monitoring |
