Introduction — Industrial-Grade Signal Extension for 3300 XL Monitoring Systems

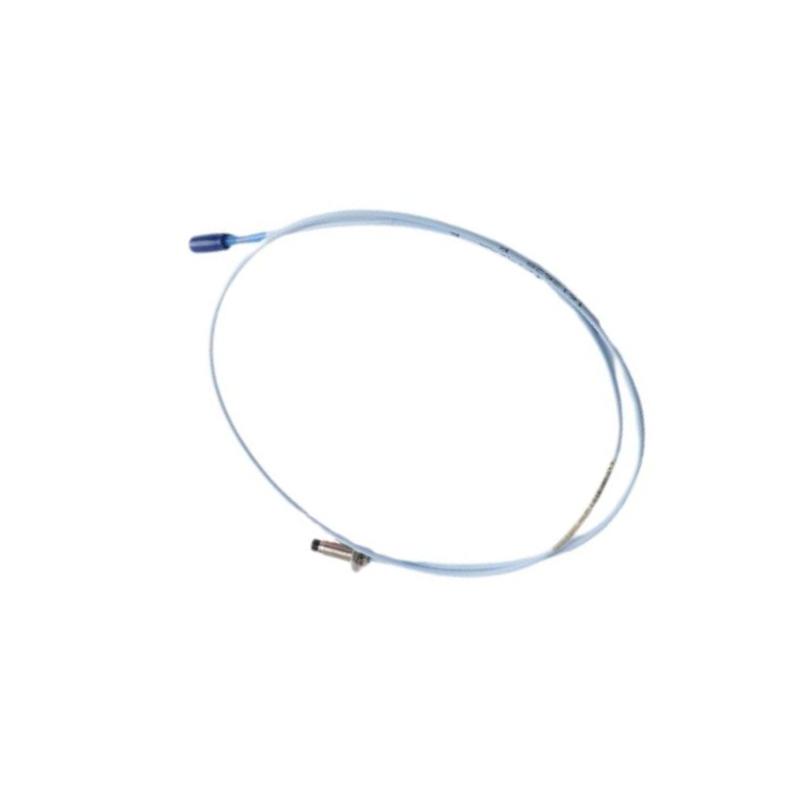

The Bently Nevada 330105-02-12-10-02-CN 3300 XL Extension Cable is a precision-engineered interconnect component used within the 3300 XL proximity transducer system. It is designed to transmit low-noise eddy-current sensor signals between the proximity probe and Proximitor® sensor, ensuring stable and accurate vibration and displacement measurements.
This cable is commonly deployed in turbine, compressor, pump, and generator monitoring systems where reliable signal integrity is essential for continuous machinery protection and condition monitoring. The “CN” suffix typically indicates a region-specific certification or compliance configuration, while maintaining full electrical compatibility with standard 3300 XL architecture.
Built for harsh industrial environments, it supports long-term operation in power generation, oil & gas, petrochemical, and heavy industrial applications.
Technical Specifications — Electrical & Mechanical Data
| Parameter | Details |
|---|---|
| Product Type | 3300 XL Extension Cable |
| Model Number | 330105-02-12-10-02-CN |
| System Compatibility | Bently Nevada 3300 XL proximity transducer system |
| Cable Function | Probe-to-Proximitor signal transmission |
| Cable Type | 75 Ω low-noise coaxial cable |
| Cable Length | 1.0 m system segment (code-dependent configuration family) |
| Connector Type | Miniature ClickLoc® coaxial connector |
| Cable Construction | Industrial-grade shielded coaxial design |
| Temperature Rating | -52°C to +177°C (system-level rating) |
| Environmental Protection | Oil-resistant, vibration-resistant industrial design |
| Installation Type | Inline extension between probe and Proximitor sensor |
| Approx. Weight | ~0.2–0.8 kg (configuration dependent) |
| Certification | CN regional approval variant (application-specific) |
