Introduction — Heavy-Duty Configuration for High-Integrity Machinery Monitoring

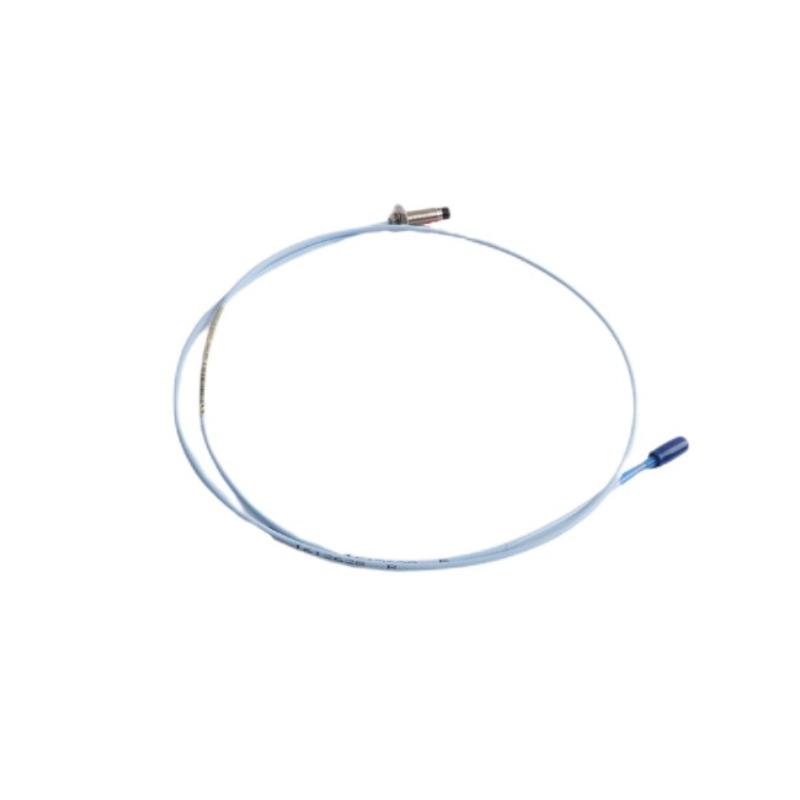

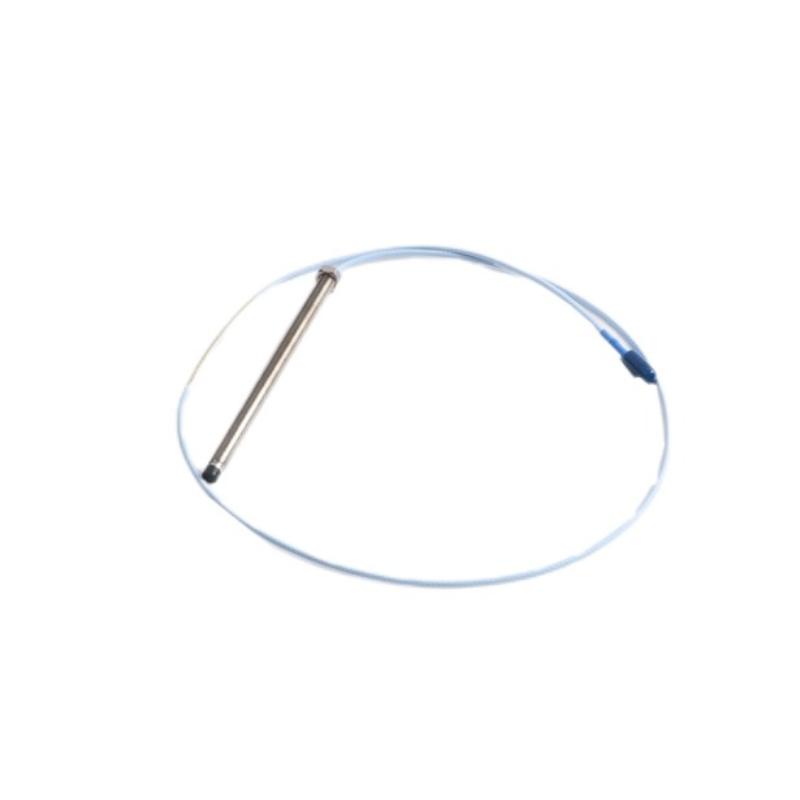

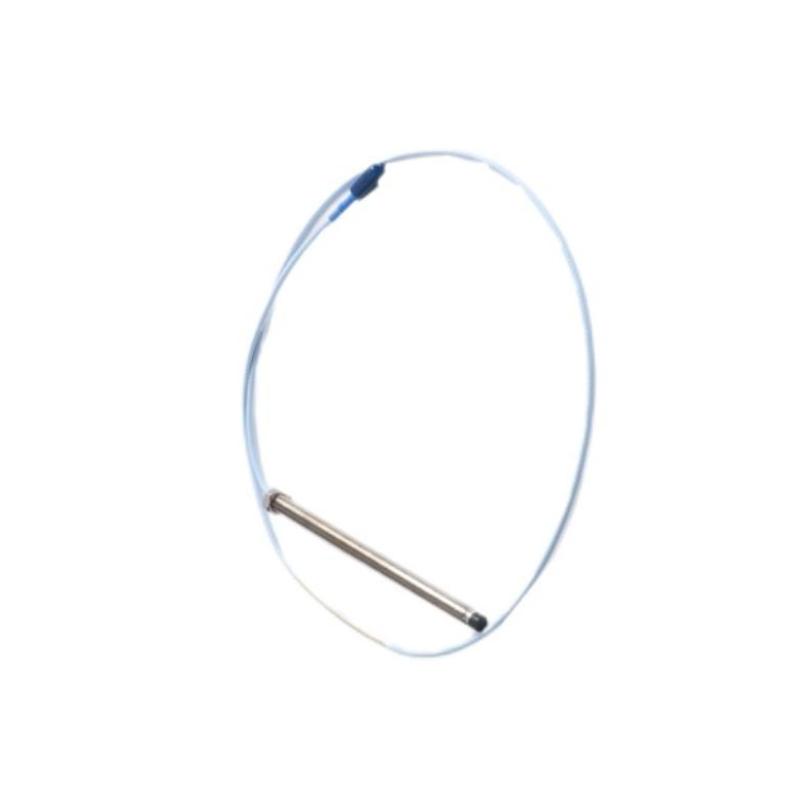

The Bently Nevada 330104-19-23-50-02-05 3300 XL 8 mm Eddy-Current Proximity Probe is a non-contact precision sensor designed for continuous monitoring of shaft vibration, radial displacement, and position in rotating machinery systems.
As part of the 3300 XL proximity transducer family, this probe is engineered for demanding industrial environments where long-term signal stability, repeatable accuracy, and mechanical robustness are critical. It is commonly applied in turbines, compressors, pumps, and generators used in power generation, oil & gas, petrochemical, and heavy industrial operations.
This configuration belongs to a custom length and cable variant within the 3300 XL ordering system, typically used in installations requiring extended mechanical reach and standardized 5.0 m cable routing.
Technical Specifications — Mechanical & Electrical Data
| Parameter | Details |
|---|---|
| Product Type | 3300 XL 8 mm Eddy-Current Proximity Probe |
| Model Number | 330104-19-23-50-02-05 |
| Measurement Technology | Eddy-current non-contact sensing |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 metric |
| Probe Body Configuration | Extended / application-specific (exact geometry per factory build code) |
| Unthreaded Section | Configuration-dependent |
| Cable Length | 5.0 m (typical 3300 XL “50” system length) |
| Connector Type | ClickLoc® miniature coaxial connector |
| Cable Type | 75 Ω industrial coaxial cable |
| Linear Measurement Range | 2.0 mm typical (system-level standard) |
| Operating Temperature | -52°C to +177°C |
| Housing Material | Stainless steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| System Compatibility | Bently Nevada 3300 XL Proximitor® system |
| Approx. Weight | ~0.4–0.9 kg (configuration dependent) |
