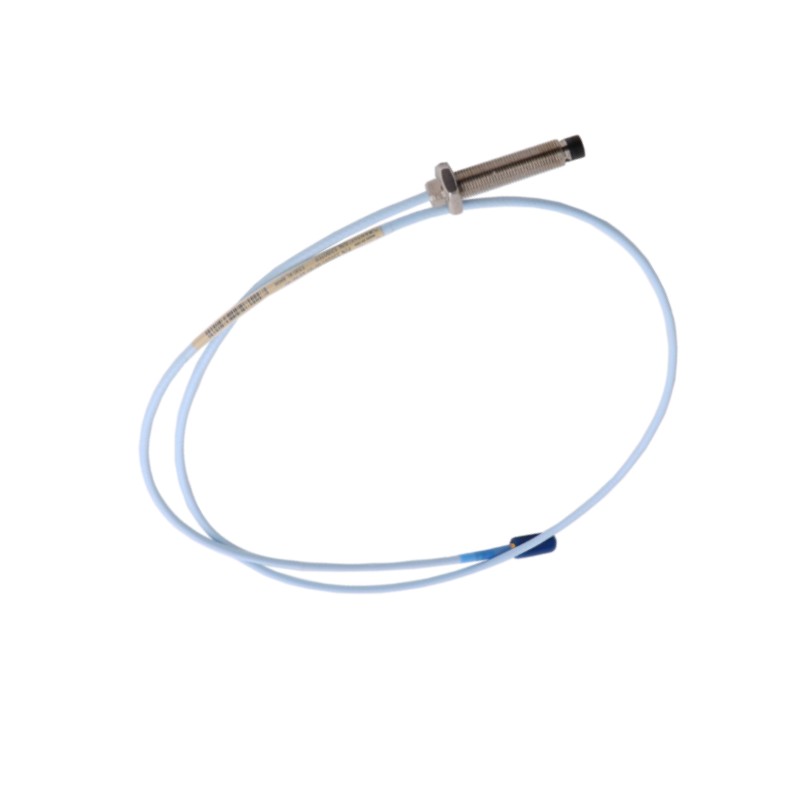

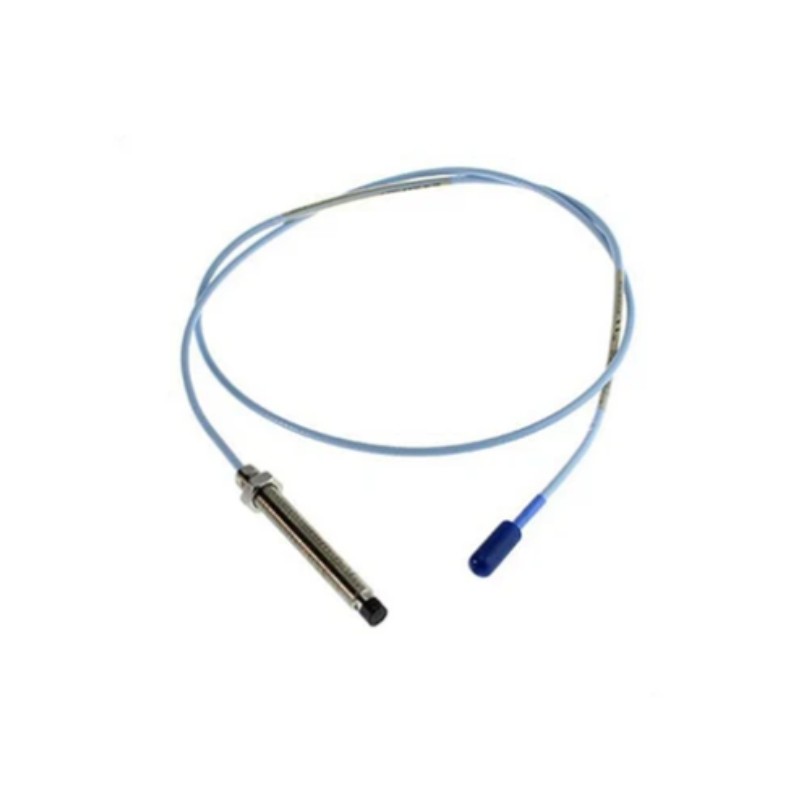

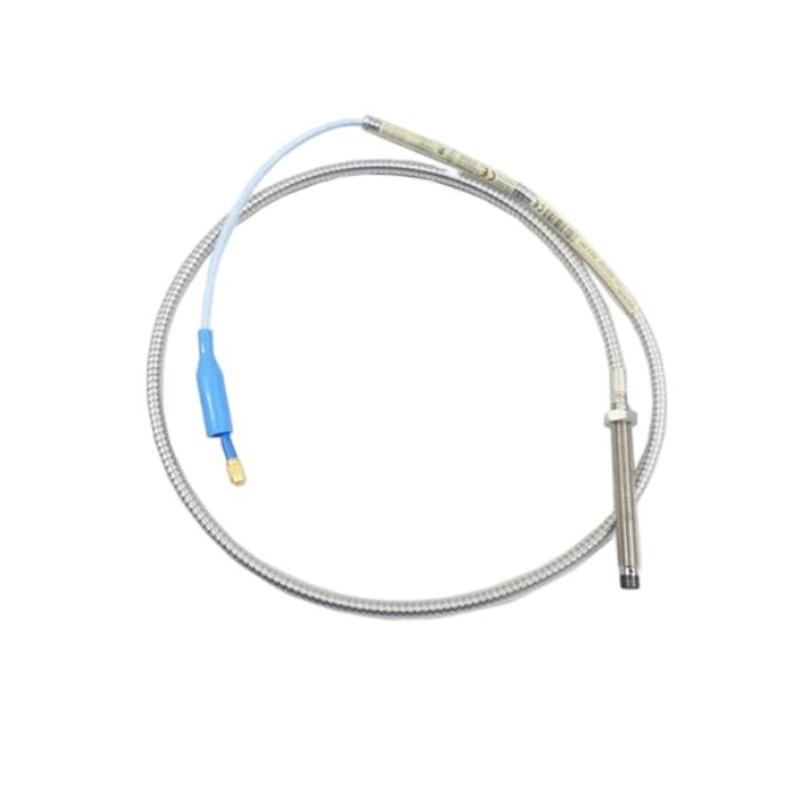

Bently Nevada 330104-14-19-10-11-00 3300 XL 8 mm Eddy-Current Proximity Probe
Introduction — Extended Industrial Probe for High-Integrity Machinery Monitoring
The Bently Nevada 330104-14-19-10-11-00 3300 XL 8 mm Eddy-Current Proximity Probe is a precision non-contact sensor designed for continuous monitoring of shaft vibration, radial displacement, and position in rotating machinery.
As part of the 3300 XL proximity transducer system, this probe is engineered for demanding industrial environments where signal stability, long-term repeatability, and mechanical robustness are essential. It is widely applied in turbines, compressors, pumps, and generators across power generation, oil & gas, petrochemical, and heavy industrial sectors.
This configuration is commonly used in installations requiring an extended 140 mm probe body with 190 mm overall case length, offering deeper mounting capability and stable measurement performance in complex machinery housings.
Technical Specifications — Mechanical & Electrical Data
| Parameter | Details |
|---|---|
| Product Type | 3300 XL 8 mm Eddy-Current Proximity Probe |
| Model Number | 330104-14-19-10-11-00 |
| Measurement Technology | Eddy-current non-contact sensing |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 metric |
| Unthreaded Length | 140 mm |
| Case Length | 190 mm |
| Cable Length | 1.0 m |
| Connector Type | ClickLoc® miniature coaxial connector |
| Cable Type | 75 Ω industrial coaxial cable |
| Tip Material | PPS (Polyphenylene Sulfide) |
| Housing Material | Stainless steel |
| Linear Measurement Range | ~2.0 mm (typical 3300 XL system range) |
| Operating Temperature | -52°C to +177°C |
| Approx. Weight | ~0.5 kg |
