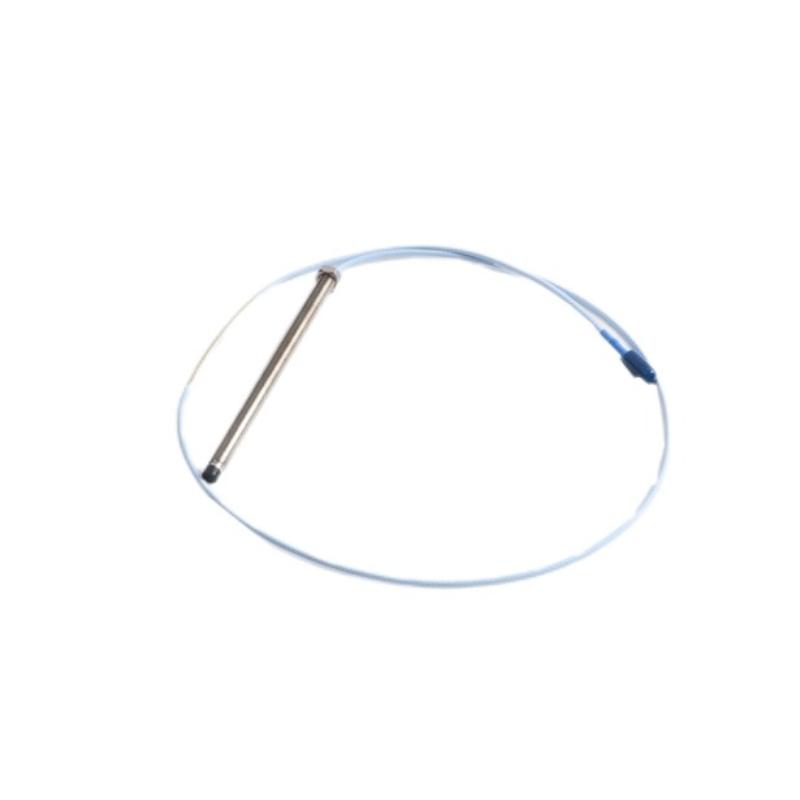

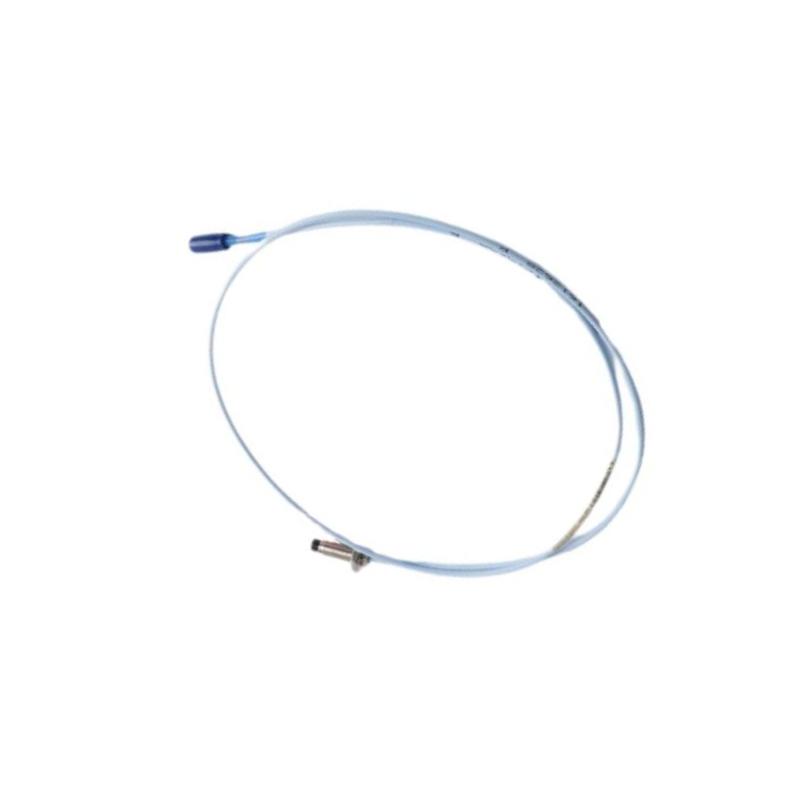

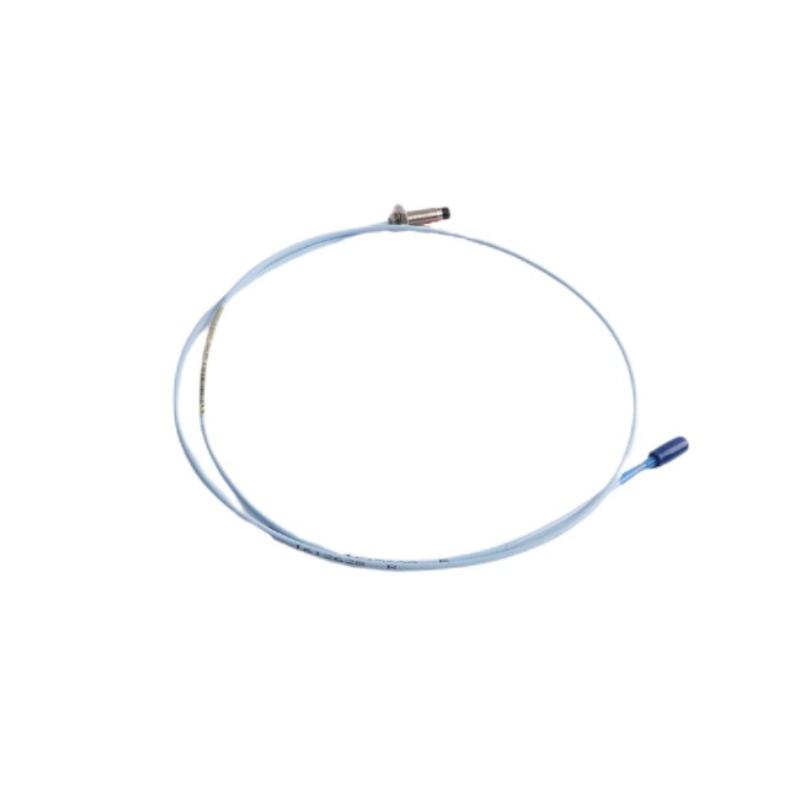

Bently Nevada 330104-13-19-10-02-00 3300 XL 8 mm Eddy-Current Proximity Probe
Introduction — Precision Monitoring for Critical Rotating Equipment
The Bently Nevada 330104-13-19-10-02-00 3300 XL 8 mm Eddy-Current Proximity Probe is a high-performance non-contact sensor designed for continuous measurement of shaft vibration, radial displacement, and position in rotating machinery.
As part of the proven 3300 XL proximity transducer system, this probe is engineered for demanding industrial environments where measurement stability, repeatability, and long-term reliability are essential. It is widely deployed in turbines, compressors, pumps, and generators across power plants, oil & gas facilities, petrochemical industries, and heavy manufacturing operations.
This configuration is typically selected for installations requiring a 190 mm class probe body design, combined with a 1.0 m system cable and ClickLoc® connector interface, ensuring stable signal transmission and mechanical robustness in continuous-duty applications.
Technical Specifications — Mechanical & Electrical Data
| Parameter | Details |
|---|---|
| Product Type | 3300 XL 8 mm Eddy-Current Proximity Probe |
| Model Number | 330104-13-19-10-02-00 |
| Measurement Technology | Eddy-current non-contact sensing |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 metric thread |
| Probe Body Length | ~190 mm configuration |
| Unthreaded Length | ~130 mm (configuration dependent) |
| Cable Length | 1.0 m |
| Connector Type | ClickLoc® miniature coaxial connector |
| Cable Type | 75 Ω industrial coaxial cable |
| Linear Measurement Range | 2.0 mm typical (3300 XL system standard) |
| Operating Temperature | -52°C to +177°C |
| Housing Material | Stainless steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| System Compatibility | Bently Nevada 3300 XL Proximitor® system |
| Approx. Weight | ~0.35–0.85 kg |
