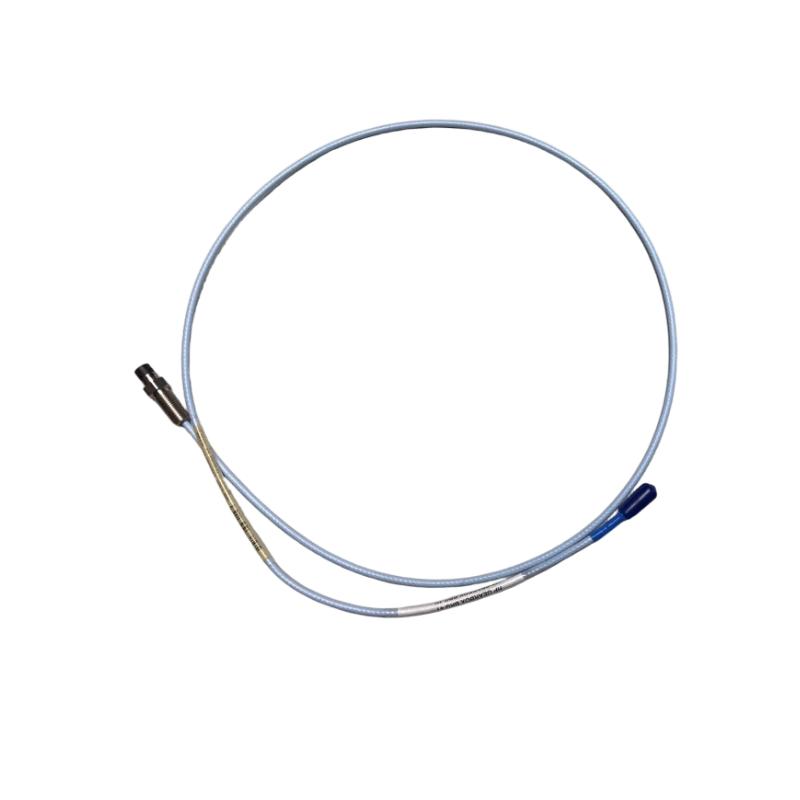

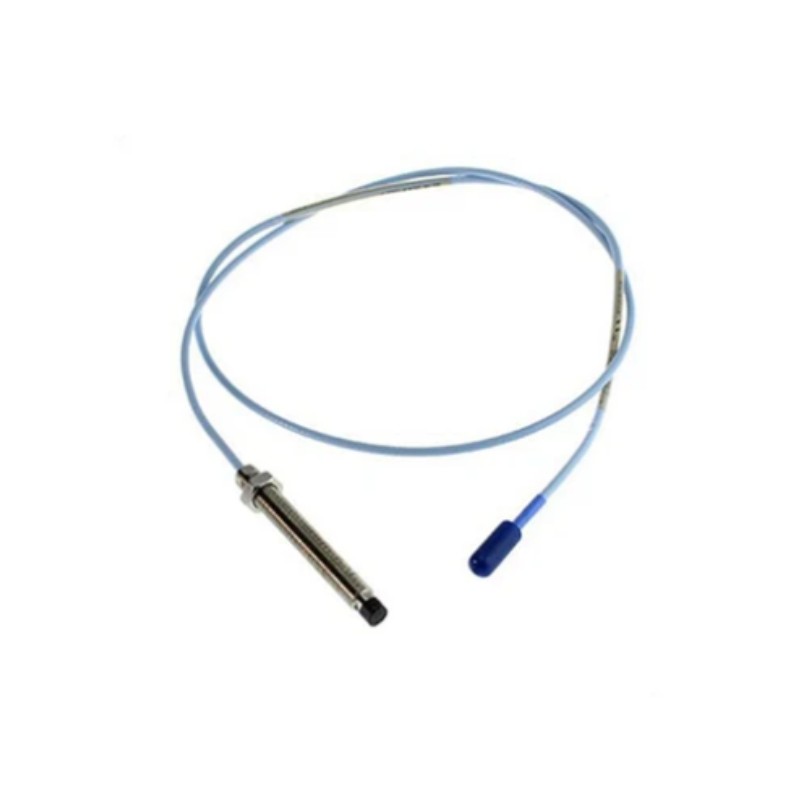

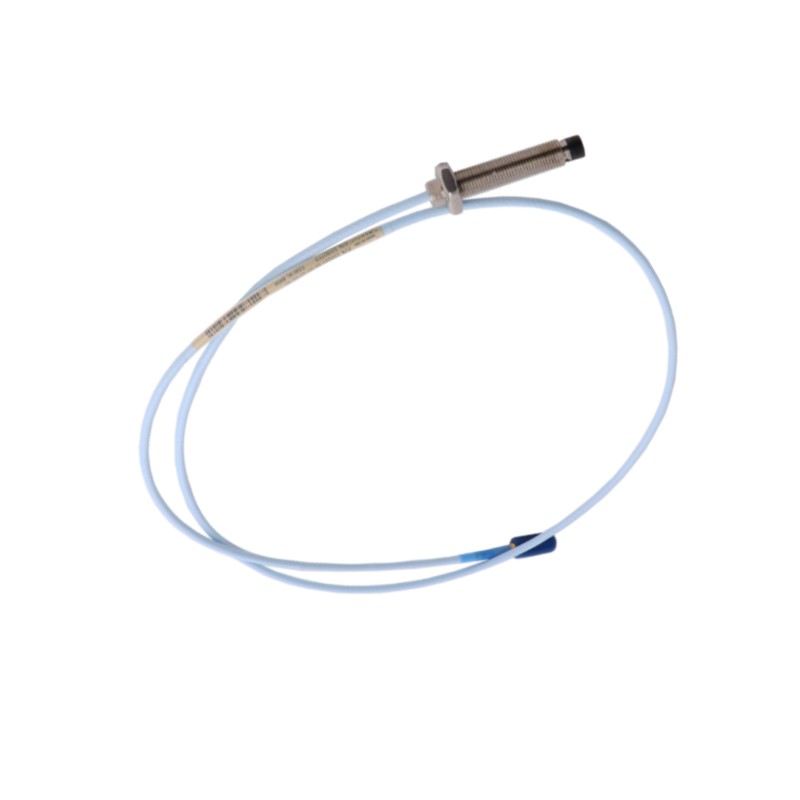

Bently Nevada 330104-10-20-05-02-00 3300 XL 8 mm Eddy-Current Proximity Probe
Introduction — Extended-Range Configuration for Demanding Machinery Monitoring
The Bently Nevada 330104-10-20-05-02-00 3300 XL 8 mm Eddy-Current Proximity Probe is a precision non-contact sensor designed for continuous measurement of shaft vibration, radial displacement, and position in rotating machinery.
As part of the 3300 XL proximity transducer system, this probe is engineered for industrial environments where stable signal performance, mechanical durability, and long service life are essential. It is widely used in turbines, compressors, pumps, and generators across power generation, petrochemical, and heavy industrial facilities.
This configuration is typically associated with a 200 mm class probe body design, making it suitable for deeper mechanical installations where extended probe reach is required while maintaining signal stability.
Technical Specifications — Mechanical & Electrical Data
| Parameter | Details |
|---|---|
| Product Type | 3300 XL 8 mm Eddy-Current Proximity Probe |
| Model Number | 330104-10-20-05-02-00 |
| Measurement Technology | Eddy-current non-contact sensing |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 metric thread |
| Probe Body Length | ~200 mm configuration |
| Unthreaded Length | ~100 mm (configuration dependent) |
| Cable Length | 0.5 m |
| Connector Type | ClickLoc® miniature coaxial connector |
| Cable Type | 75 Ω industrial coaxial cable |
| Linear Measurement Range | 2.0 mm typical (3300 XL system standard) |
| Operating Temperature | -52°C to +177°C |
| Housing Material | Stainless steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| System Compatibility | Bently Nevada 3300 XL Proximitor® system |
| Approx. Weight | ~0.4–0.9 kg |
