Introduction — Robust Mid-Range Configuration for Industrial Machinery Protection

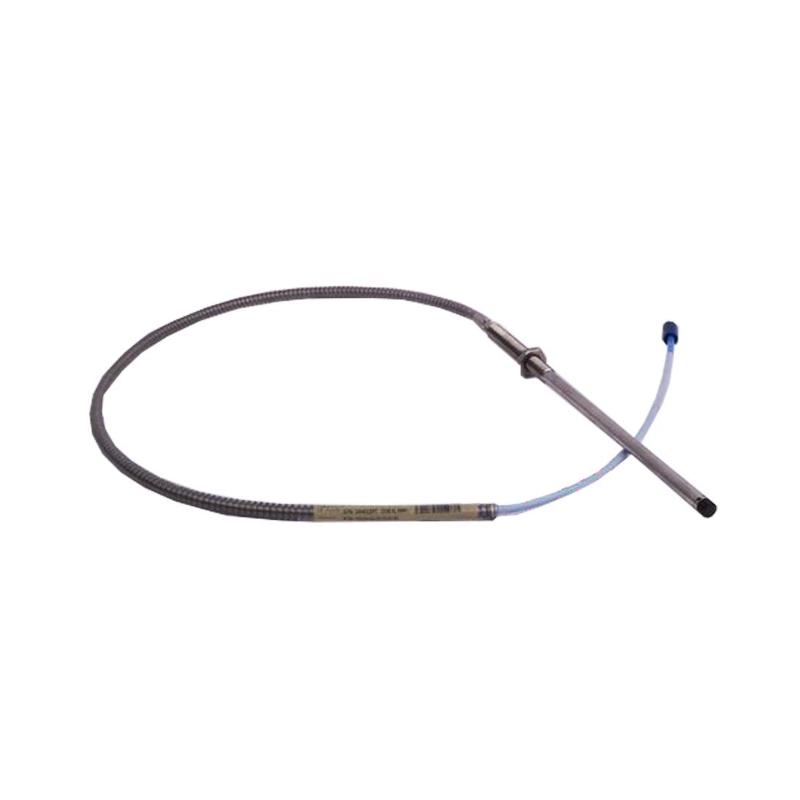

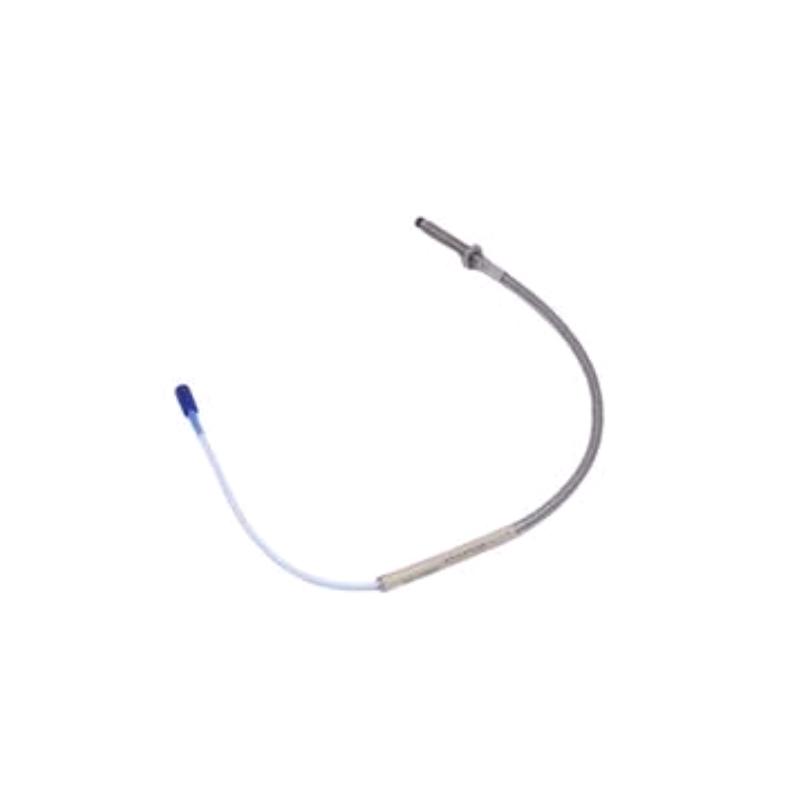

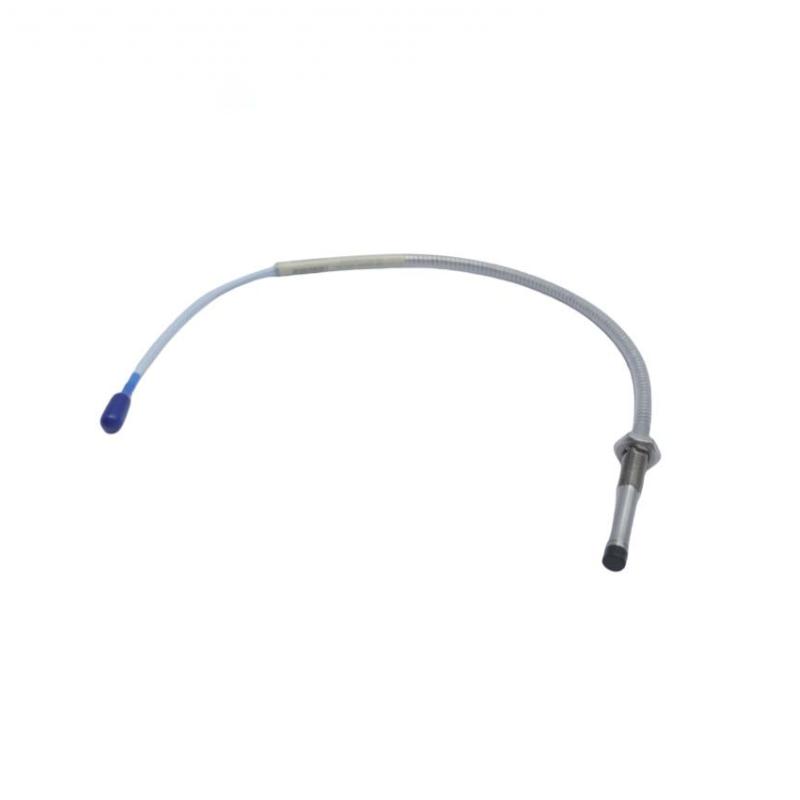

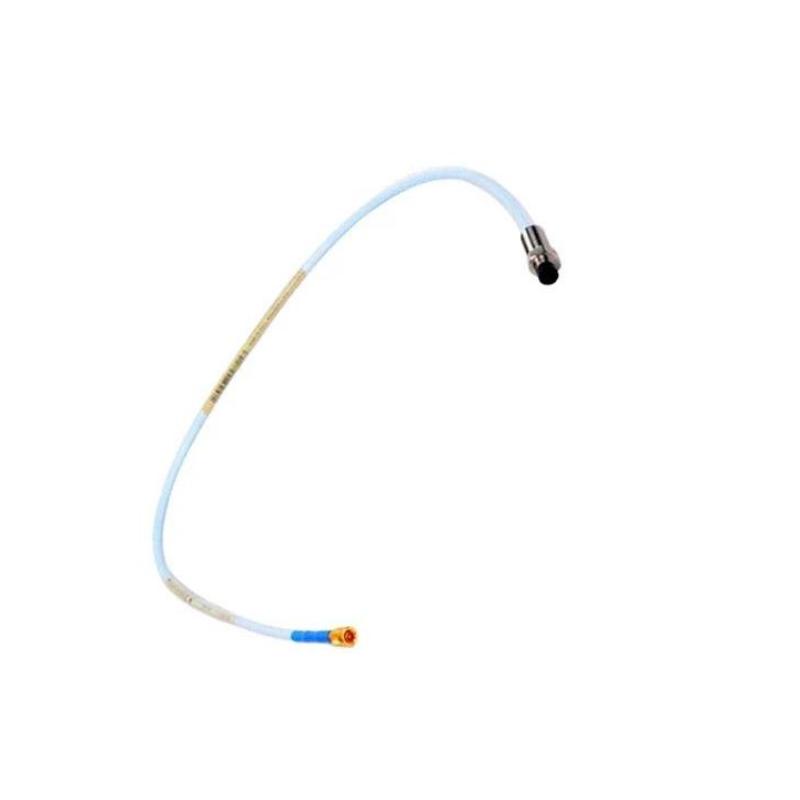

The Bently Nevada 330104-08-14-10-02-05 3300 XL 8 mm Eddy-Current Proximity Probe is a precision-engineered non-contact sensor designed for continuous monitoring of shaft vibration, radial displacement, and position in rotating machinery.
As part of the widely deployed 3300 XL proximity transducer system, this probe is built for industrial environments where long-term stability, measurement accuracy, and mechanical robustness are essential. It is commonly used in turbines, compressors, pumps, and generator systems across power generation, oil & gas, petrochemical, and heavy industrial applications.
This configuration is typically used where a 140 mm probe body, 1.0 m cable assembly, and ClickLoc® connector system are required for stable installation in medium-depth machinery mounting positions.
Technical Specifications — Mechanical & Electrical Data
| Parameter | Details |
|---|---|
| Product Type | 3300 XL 8 mm Eddy-Current Proximity Probe |
| Model Number | 330104-08-14-10-02-05 |
| Measurement Technology | Eddy-current non-contact sensing |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 metric thread |
| Probe Body Length | ~140 mm configuration |
| Unthreaded Length | ~80 mm (configuration dependent) |
| Cable Length | 1.0 m |
| Connector Type | ClickLoc® miniature coaxial connector |
| Cable Type | 75 Ω industrial coaxial cable |
| Linear Measurement Range | 2.0 mm typical (3300 XL system standard) |
| Operating Temperature | -52°C to +177°C |
| Housing Material | Stainless steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| System Compatibility | Bently Nevada 3300 XL Proximitor® system |
| Approx. Weight | ~0.35–0.75 kg |
