Industrial Overview — Extended Reach Configuration for Critical Monitoring Systems

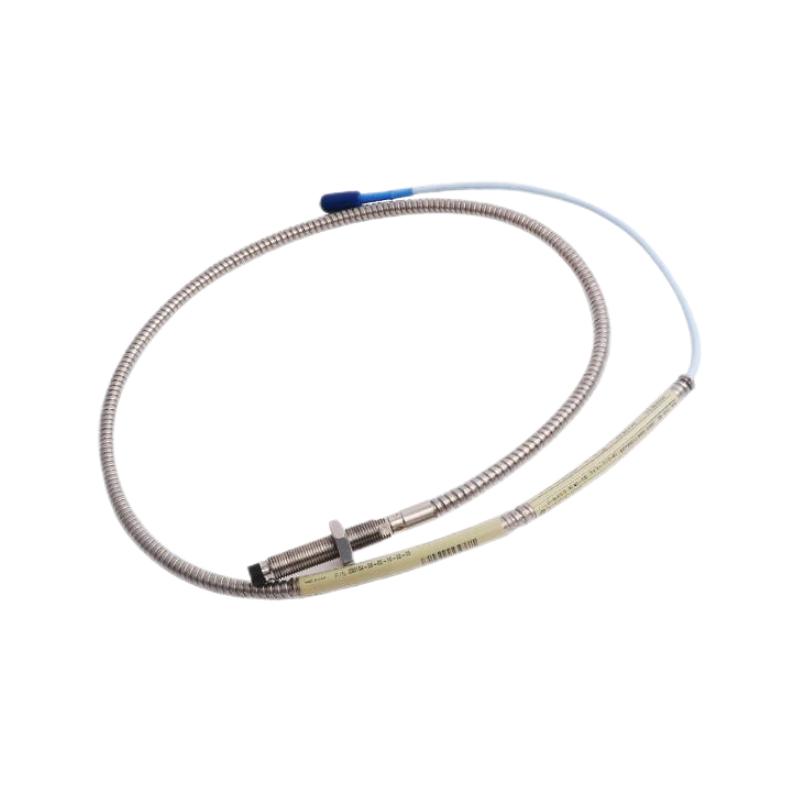

The Bently Nevada 330104-04-14-50-12-00 3300 XL 8 mm Eddy-Current Proximity Probe is a high-precision non-contact sensor designed for continuous measurement of shaft vibration, radial displacement, and position in rotating machinery.
As part of the widely used 3300 XL proximity transducer system, this probe is engineered for industrial environments where long-term stability, interchangeability, and accurate signal output are essential. It is commonly applied in turbines, compressors, pumps, and generators operating in demanding conditions such as power plants, petrochemical facilities, and heavy industrial systems.
This specific configuration is known for its extended mounting body design (140 mm class) and 5.0 m cable assembly, making it suitable for installations requiring deeper mechanical reach and flexible wiring layouts.
Technical Specifications — Mechanical & Electrical Configuration
| Specification | Details |
|---|---|
| Product Type | 3300 XL 8 mm Eddy-Current Proximity Probe |
| Model Number | 330104-04-14-50-12-00 |
| Probe Diameter | 8 mm |
| Measurement Technology | Eddy-current non-contact sensing |
| Thread Type | M10 × 1 metric thread |
| Unthreaded Length | 40 mm |
| Probe Body Length | 140 mm |
| Cable Length | 5.0 m |
| Connector Type | Miniature coaxial ClickLoc® connector |
| Cable Type | 75 Ω industrial coaxial cable |
| Linear Measurement Range | 2.0 mm (80 mil typical system range) |
| Operating Temperature | -52°C to +177°C |
| Housing Material | Stainless steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| System Compatibility | Bently Nevada 3300 XL Proximitor® system |
| Approx. Weight | ~0.4–0.9 kg |
