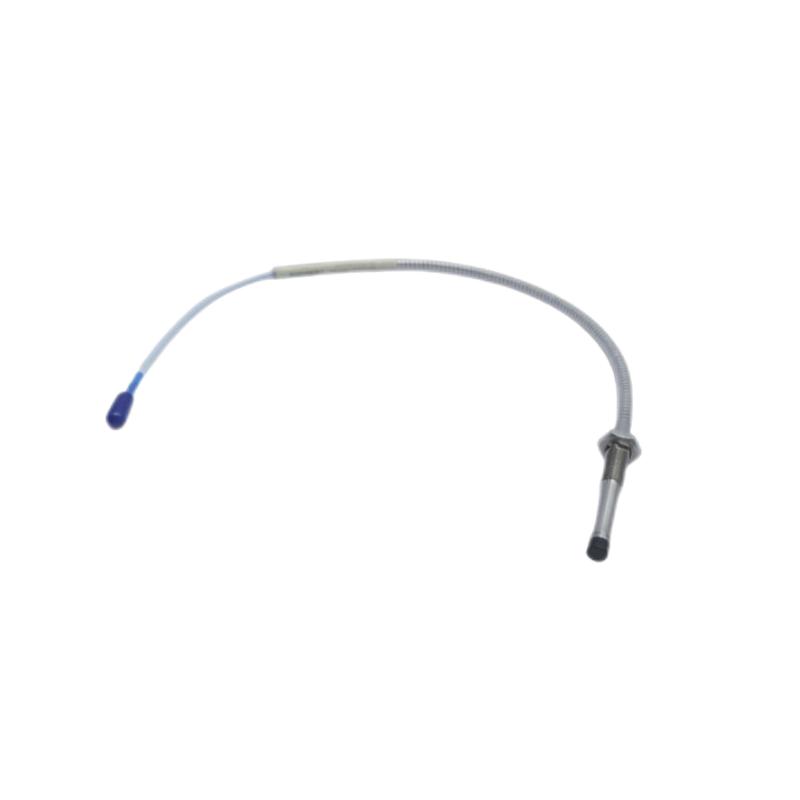

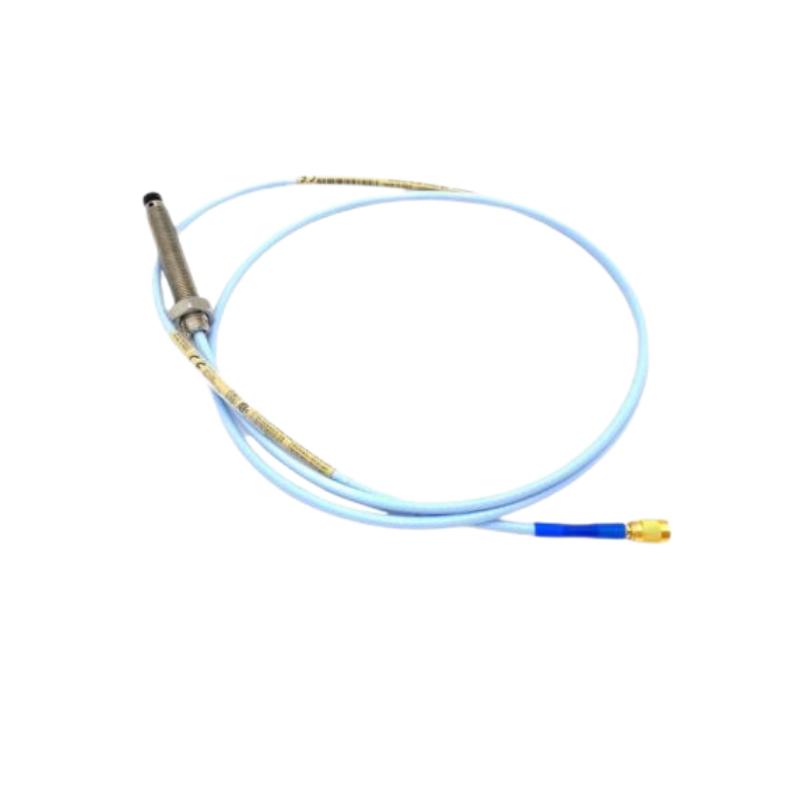

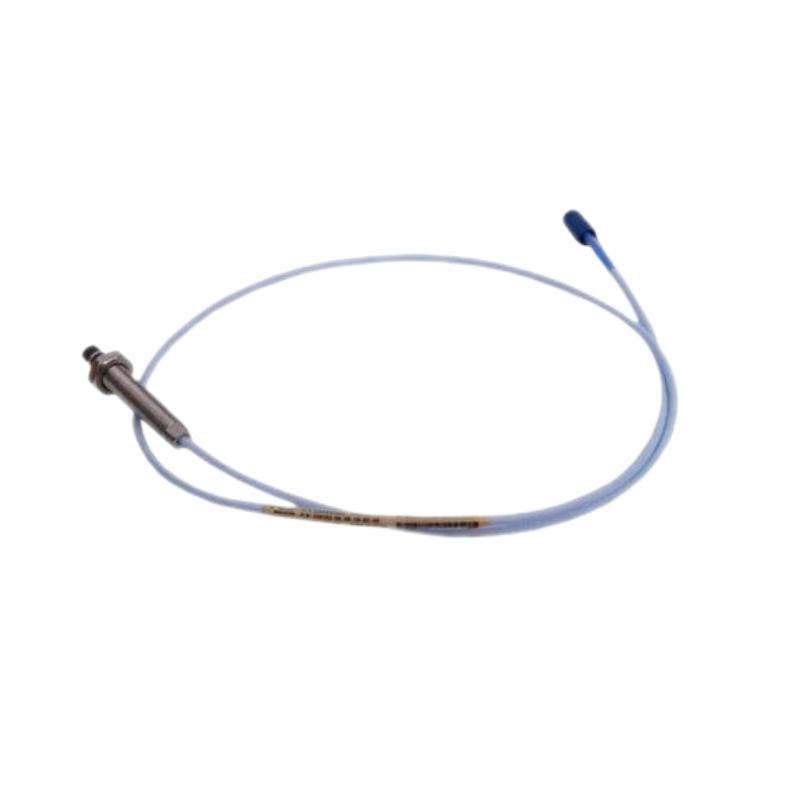

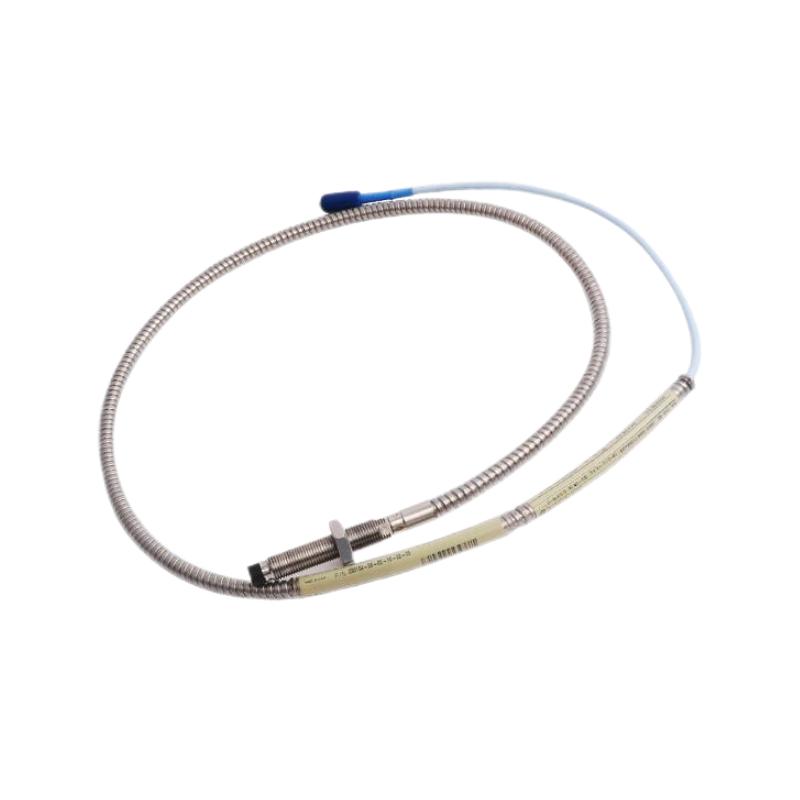

Bently Nevada 330104-03-06-05-02-00 3300 XL 8 mm Eddy-Current Proximity Probe
Overview — High-Sensitivity Configuration for Precision Machinery Monitoring
The Bently Nevada 330104-03-06-05-02-00 3300 XL 8 mm Eddy-Current Proximity Probe is a non-contact precision sensor designed for continuous monitoring of shaft vibration, radial displacement, and position in rotating machinery systems.
As part of the trusted 3300 XL proximity transducer platform, this probe is engineered for industrial environments where long-term signal stability, interchangeability, and high measurement accuracy are essential. It is commonly applied in turbines, compressors, pumps, and generators used in power generation, petrochemical, and heavy industrial facilities.
This configuration is typically used where a 60 mm probe body length and 0.5 m cable assembly are required, offering a compact installation footprint with reliable signal transmission.
Technical Specifications — Mechanical & Electrical Configuration
| Specification | Details |
|---|---|
| Product Type | 3300 XL 8 mm Eddy-Current Proximity Probe |
| Model Number | 330104-03-06-05-02-00 |
| Probe Diameter | 8 mm |
| Measurement Technology | Eddy-current non-contact sensing |
| Thread Type | M10 × 1 metric thread |
| Unthreaded Length | 30 mm |
| Overall Case Length | 60 mm |
| Cable Length | 0.5 m |
| Connector Type | Miniature coaxial ClickLoc® connector |
| Cable Type | 75 Ω industrial coaxial cable |
| Linear Measurement Range | 2.0 mm (80 mil typical system range) |
| Operating Temperature | -52°C to +177°C |
| Housing Material | Stainless steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| System Compatibility | Bently Nevada 3300 XL Proximitor® system |
| Approx. Weight | ~0.25–0.55 kg |
