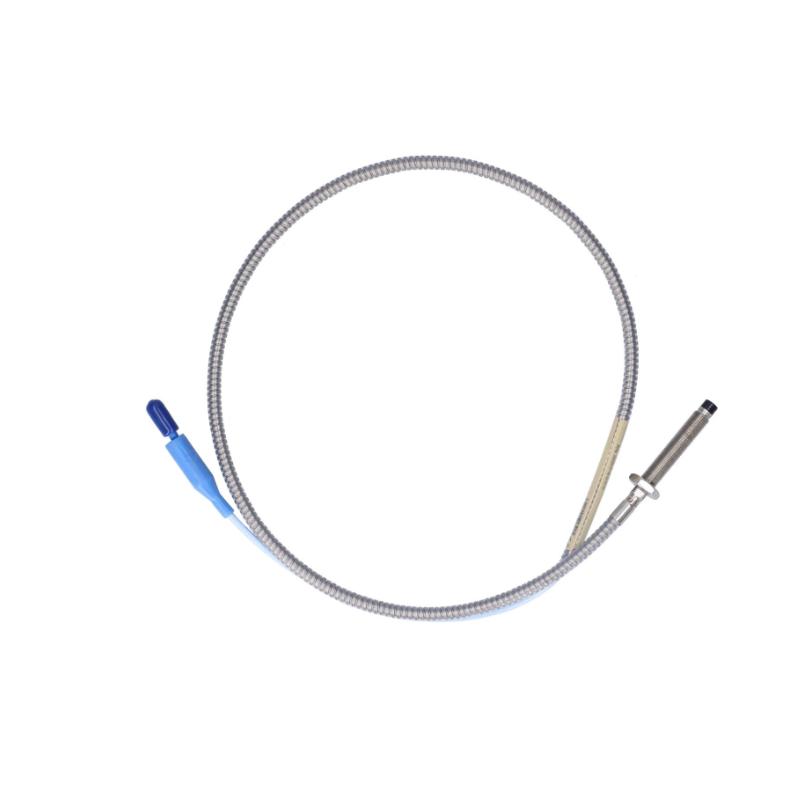

Bently Nevada 330104-02-18-10-01-00 3300 XL 8 mm Eddy-Current Proximity Probe
Overview — Compact Industrial Probe for Reliable Shaft Monitoring
The Bently Nevada 330104-02-18-10-01-00 3300 XL 8 mm Eddy-Current Proximity Probe is a precision non-contact sensor designed for continuous monitoring of shaft vibration, radial displacement, and position in rotating machinery.
As part of the widely deployed 3300 XL proximity transducer system, this probe is engineered for stable performance in demanding industrial environments where measurement accuracy, interchangeability, and long-term reliability are essential. It is commonly used in turbines, compressors, pumps, and generators within power generation, oil & gas, and heavy industrial applications.
This configuration typically features an 180 mm probe body length, 1.0 m integrated cable, and ClickLoc® connector system, making it suitable for standard-depth installations requiring stable signal transmission and compact wiring design.
Technical Specifications — Mechanical & Electrical Configuration
| Specification | Details |
|---|---|
| Product Type | 3300 XL 8 mm Eddy-Current Proximity Probe |
| Model Number | 330104-02-18-10-01-00 |
| Probe Diameter | 8 mm |
| Measurement Technology | Eddy-current non-contact sensing |
| Thread Type | M10 × 1 metric thread |
| Unthreaded Length | 20 mm |
| Overall Case Length | 180 mm |
| Cable Length | 1.0 m |
| Connector Type | Miniature coaxial ClickLoc® connector |
| Cable Type | 75 Ω industrial coaxial cable |
| Linear Measurement Range | 2.0 mm (80 mil typical system range) |
| Operating Temperature | -52°C to +177°C |
| Housing Material | Stainless steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| System Compatibility | Bently Nevada 3300 XL Proximitor® system |
| Approx. Weight | ~0.3–0.6 kg |
