Industrial Overview — Compact Configuration for Standard Machinery Monitoring

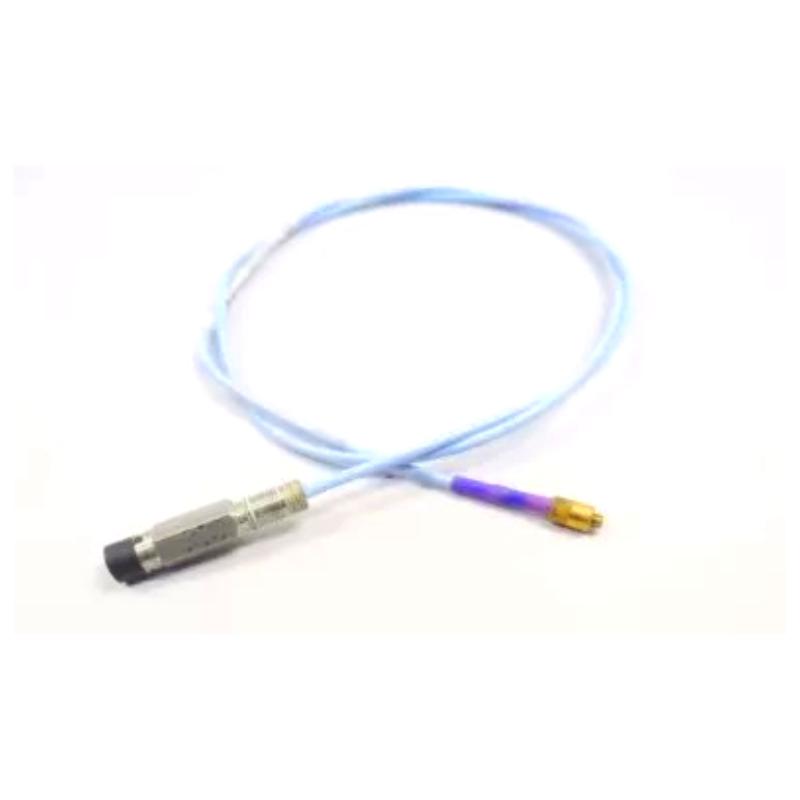

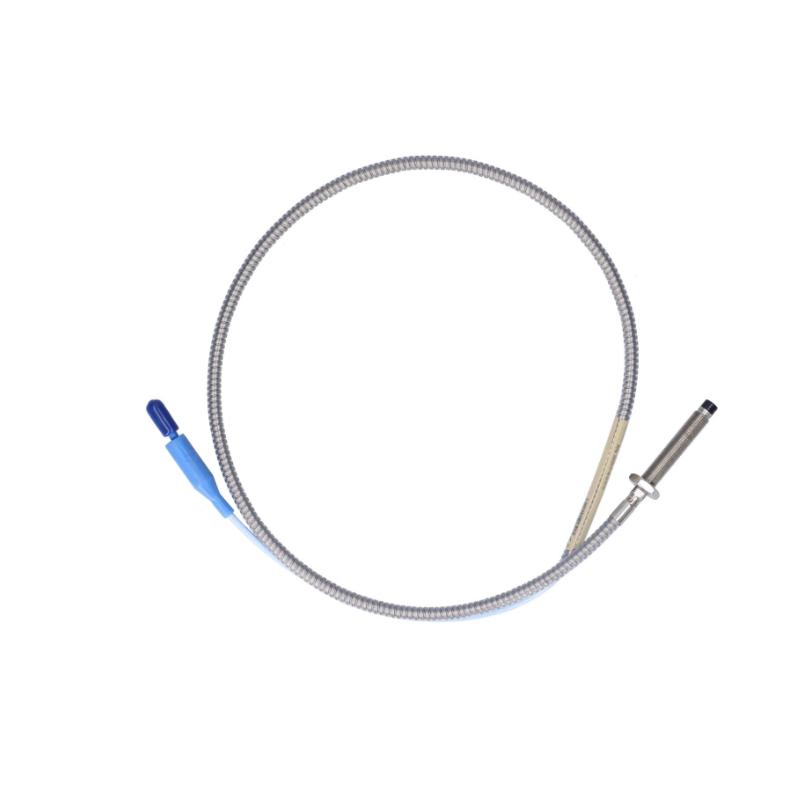

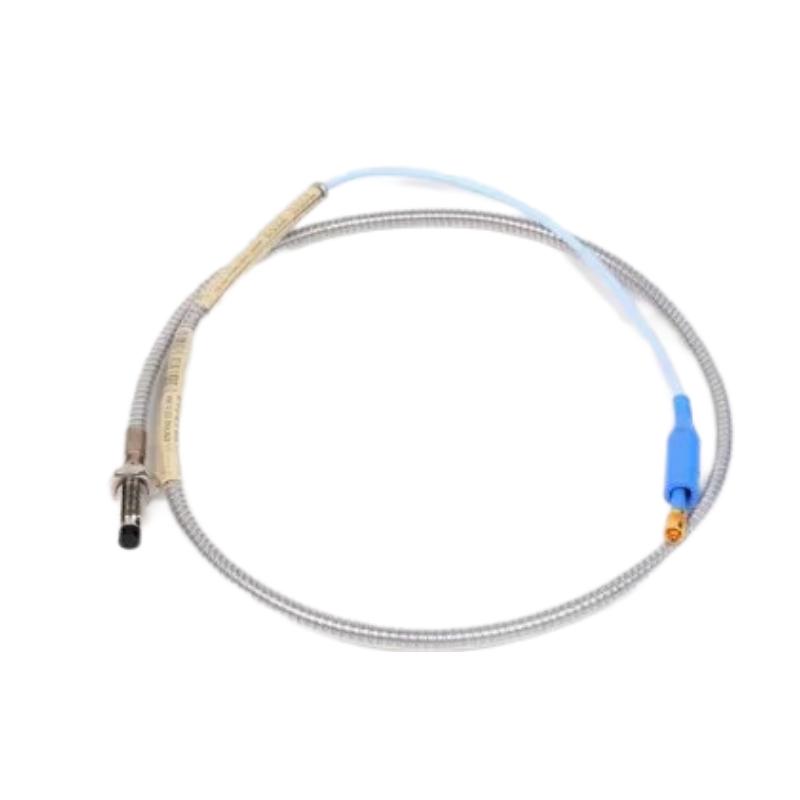

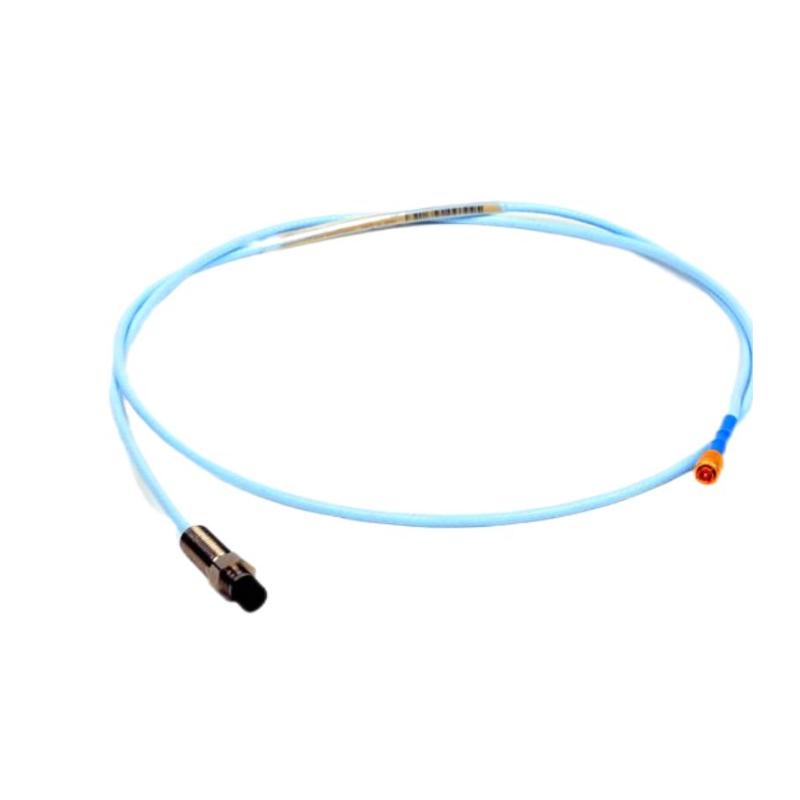

The Bently Nevada 330104-00-24-10-02-00 3300 XL 8 mm Eddy-Current Proximity Probe is a precision non-contact sensor designed for continuous monitoring of shaft vibration, radial displacement, and position in rotating machinery.
As part of the proven 3300 XL proximity transducer system, this probe is widely used in industrial applications where stable measurement performance, interchangeability, and long-term reliability are essential. It is commonly deployed in turbines, compressors, pumps, and generators operating in demanding environments where predictive maintenance is critical.
This configuration typically features a 240 mm probe body length, 1.0 m cable assembly, and ClickLoc® connector system, providing a compact yet robust solution for standard installation layouts in machinery protection systems.
Technical Specifications — Mechanical & Electrical Configuration
| Specification | Details |
|---|---|
| Product Type | 3300 XL 8 mm Eddy-Current Proximity Probe |
| Model Number | 330104-00-24-10-02-00 |
| Probe Diameter | 8 mm |
| Measurement Technology | Eddy-current non-contact sensing |
| Thread Type | M10 × 1 metric thread |
| Unthreaded Length | 0 mm |
| Overall Case Length | 240 mm |
| Cable Length | 1.0 m |
| Connector Type | Miniature coaxial ClickLoc® connector |
| Cable Type | 75 Ω industrial coaxial cable |
| Linear Measurement Range | 2.0 mm (80 mils typical system range) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Operating Temperature | -52°C to +177°C |
| Housing Material | Stainless steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| System Compatibility | Bently Nevada 3300 XL Proximitor® system |
| Approx. Dimensions | 24 × 1.5 × 1.5 cm |
| Approx. Weight | ~0.30–0.60 kg |
