Industrial Overview — Balanced Reach & Flexible Installation Design

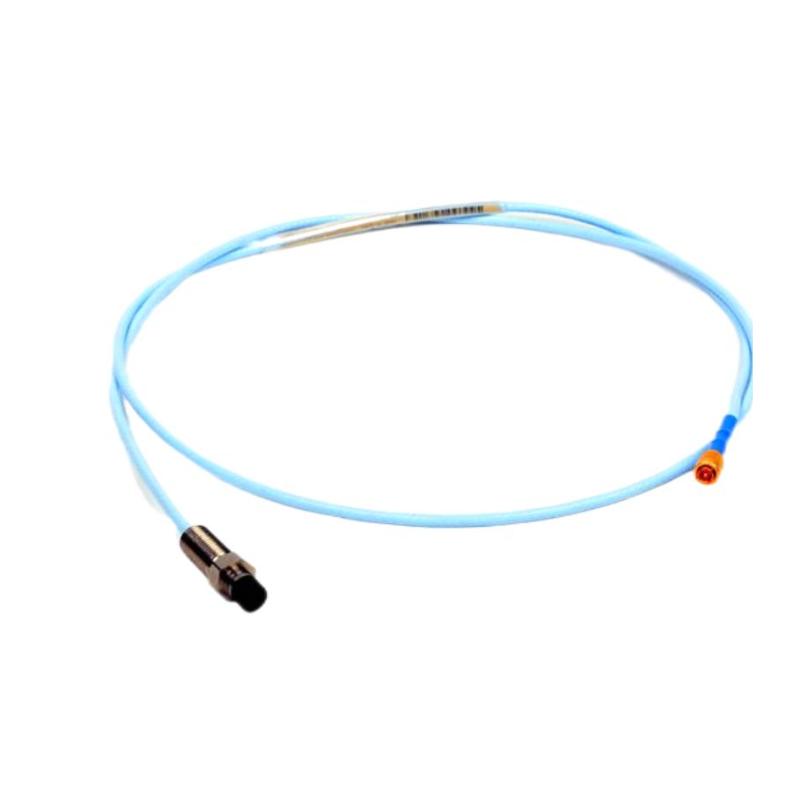

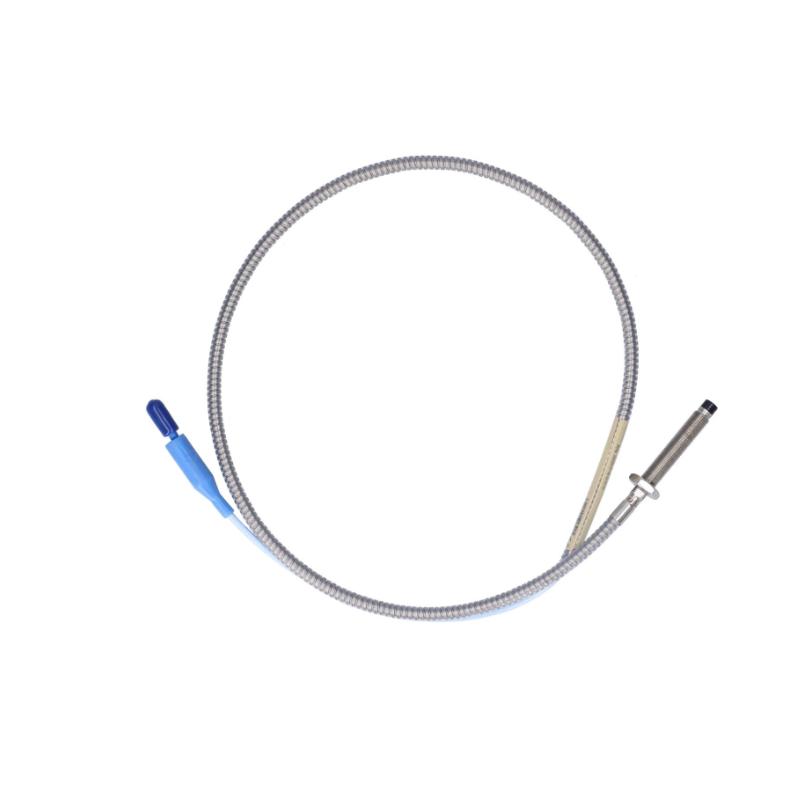

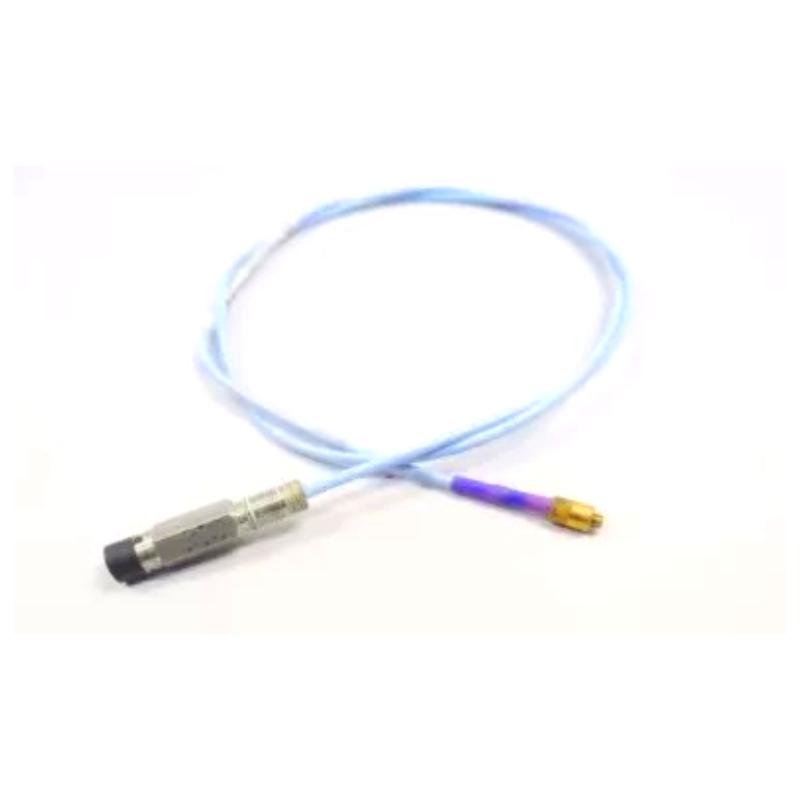

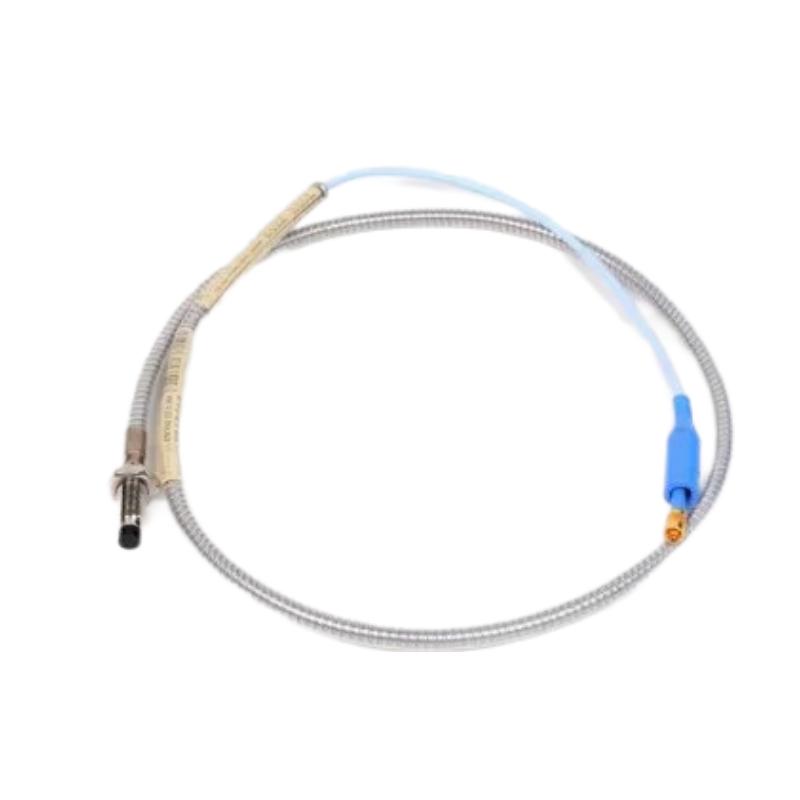

The Bently Nevada 330104-00-25-50-02-05 3300 XL 8 mm Eddy-Current Proximity Probe is a high-precision non-contact sensor designed for continuous monitoring of shaft vibration, radial displacement, and axial position in rotating machinery.
Built on the proven 3300 XL proximity transducer platform, this model is widely used in industrial condition monitoring systems where reliability, interchangeability, and measurement stability are critical. It is commonly applied in turbines, compressors, pumps, and other high-value rotating equipment operating in continuous-duty environments.
This configuration provides a 250 mm probe body length, 5.0 m cable assembly, and standard ClickLoc® connector, offering a balance between mechanical reach and installation flexibility in complex machinery layouts.
Technical Specifications — Mechanical & Electrical Configuration
| Specification | Details |
|---|---|
| Product Type | 3300 XL 8 mm Eddy-Current Proximity Probe |
| Model Number | 330104-00-25-50-02-05 |
| Probe Diameter | 8 mm |
| Measurement Technology | Eddy-current non-contact sensing |
| Thread Type | M10 × 1 metric thread |
| Unthreaded Length | 0 mm |
| Overall Case Length | 250 mm |
| Cable Length | 5.0 m |
| Connector Type | Miniature coaxial ClickLoc® connector |
| Cable Type | 75 Ω industrial coaxial cable |
| Linear Measurement Range | 2.0 mm (80 mils typical system range) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Operating Temperature | -52°C to +177°C |
| Housing Material | Stainless steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| System Compatibility | Bently Nevada 3300 XL Proximitor® system |
| Approx. Dimensions | 25 × 1.5 × 1.5 cm |
| Approx. Weight | ~0.55–0.85 kg |
