Overview — Reliable Long-Reach Proximity Measurement for Critical Machinery

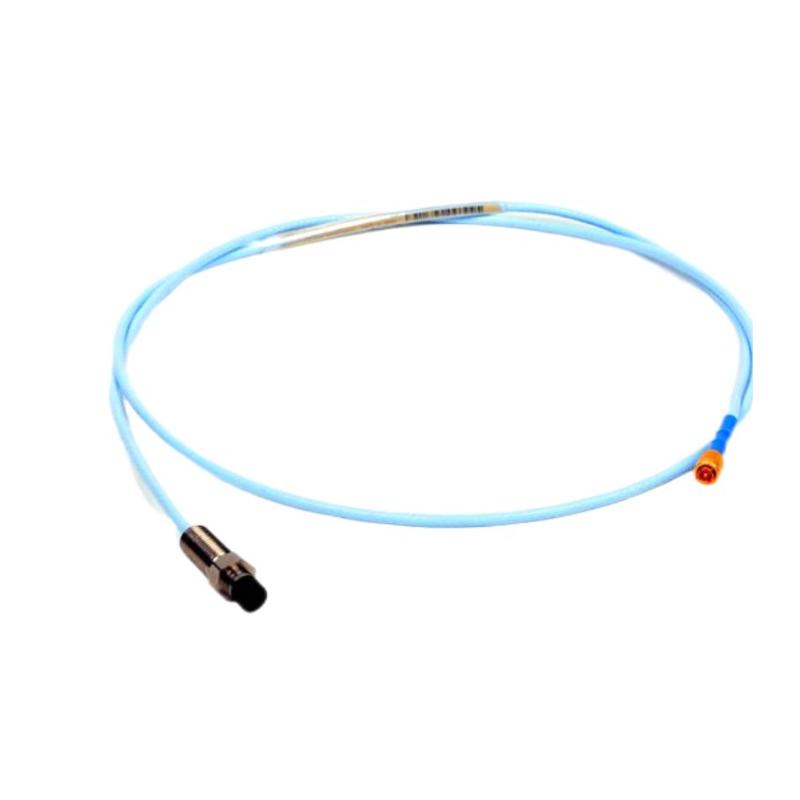

The Bently Nevada 330104-00-25-10-02-05 3300 XL 8 mm Eddy-Current Proximity Probe is a precision non-contact sensor designed for continuous monitoring of shaft vibration, radial displacement, and position in high-speed rotating machinery.
As part of the widely adopted 3300 XL proximity transducer system, this probe is engineered for industrial environments where stable measurement performance, mechanical durability, and interchangeability are essential. It is commonly used in turbines, compressors, pumps, and other rotating equipment where predictive maintenance strategies are critical for operational safety and uptime.
This configuration typically features an extended probe body (250 mm class), 1.0 m cable assembly, and standard ClickLoc® connector, making it suitable for installations requiring deeper mounting reach with compact wiring layouts.
Technical Specifications — Configuration & Mechanical Data
| Specification | Details |
|---|---|
| Product Type | 3300 XL 8 mm Eddy-Current Proximity Probe |
| Model Number | 330104-00-25-10-02-05 |
| Probe Diameter | 8 mm |
| Measurement Technology | Eddy-current non-contact sensing |
| Thread Type | M10 × 1 metric thread |
| Unthreaded Length | 0 mm |
| Overall Case Length | 250 mm |
| Cable Length | 1.0 m |
| Connector Type | Miniature coaxial ClickLoc® connector |
| Cable Type | 75 Ω industrial coaxial cable |
| Linear Measurement Range | 2.0 mm (80 mils typical system range) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Operating Temperature | -52°C to +177°C |
| Housing Material | Stainless steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| System Compatibility | Bently Nevada 3300 XL Proximitor® system |
| Approx. Dimensions | 25 × 1.5 × 1.5 cm |
| Approx. Weight | ~0.55–0.85 kg |
