Precision Monitoring for Extended Industrial Applications

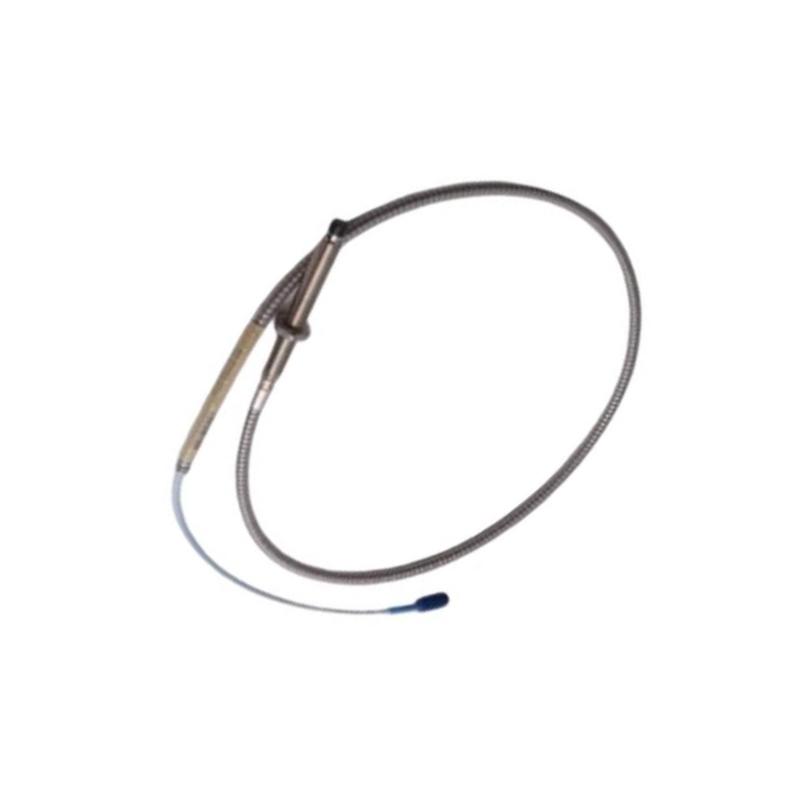

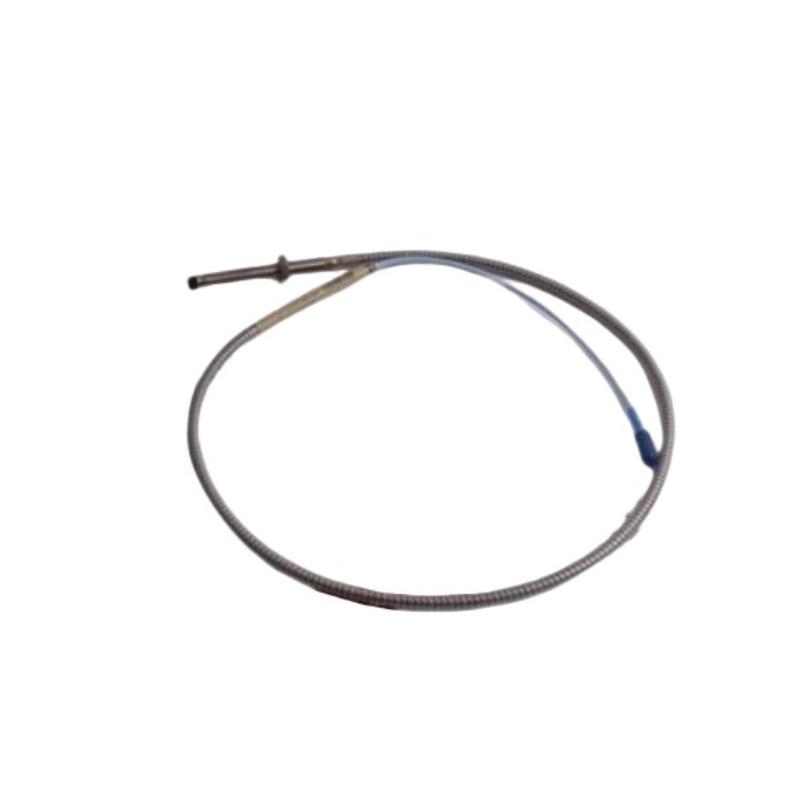

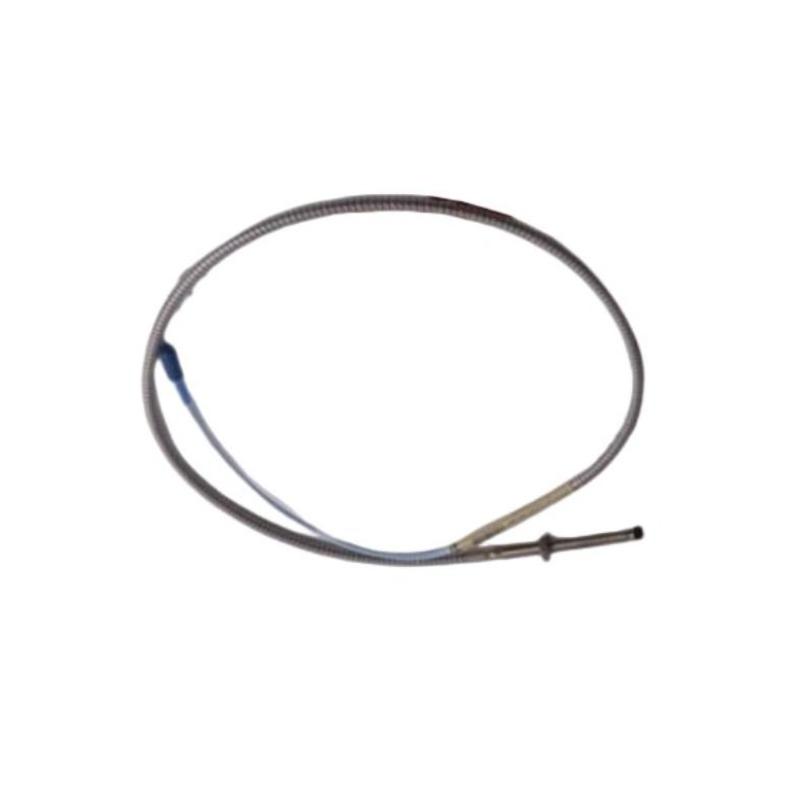

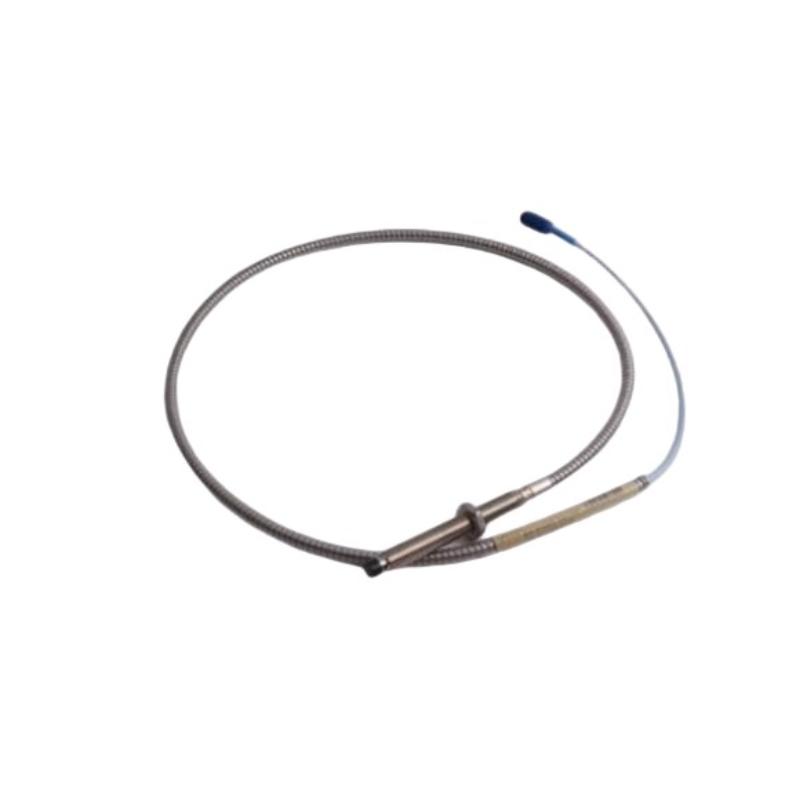

The Bently Nevada 330104-02-25-10-02-00 3300 XL 8 mm Eddy-Current Proximity Probe is a high-reliability non-contact sensor designed for continuous measurement of shaft vibration, displacement, and position in rotating machinery.
As part of the proven 3300 XL proximity transducer system, this probe is engineered for harsh industrial environments where measurement accuracy, mechanical durability, and long-term stability are critical. It is widely used in turbine trains, compressors, pumps, and other high-value rotating equipment that require precise condition monitoring and predictive maintenance support.
This configuration provides a 250 mm probe body length, 1.0 m cable assembly, and standard ClickLoc® connector system, making it suitable for installations requiring extended mechanical reach with compact cable routing.
Technical Specifications — Configuration & Mechanical Data
| Specification | Details |
|---|---|
| Product Type | 3300 XL 8 mm Eddy-Current Proximity Probe |
| Model Number | 330104-02-25-10-02-00 |
| Probe Diameter | 8 mm |
| Measurement Technology | Eddy-current non-contact sensing |
| Thread Type | M10 × 1 metric thread |
| Unthreaded Length | 20 mm |
| Overall Case Length | 250 mm |
| Cable Length | 1.0 m |
| Connector Type | Miniature coaxial ClickLoc® connector |
| Cable Type | 75 Ω industrial coaxial cable |
| Linear Measurement Range | 2.0 mm (80 mils typical system range) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Operating Temperature | -52°C to +177°C |
| Housing Material | Stainless steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| System Compatibility | Bently Nevada 3300 XL Proximitor® system |
| Approximate Dimensions | 25 × 1.5 × 1.5 cm |
| Approximate Weight | ~0.55–0.85 kg |
