Industrial Overview — Extended Reach Monitoring for Heavy Machinery

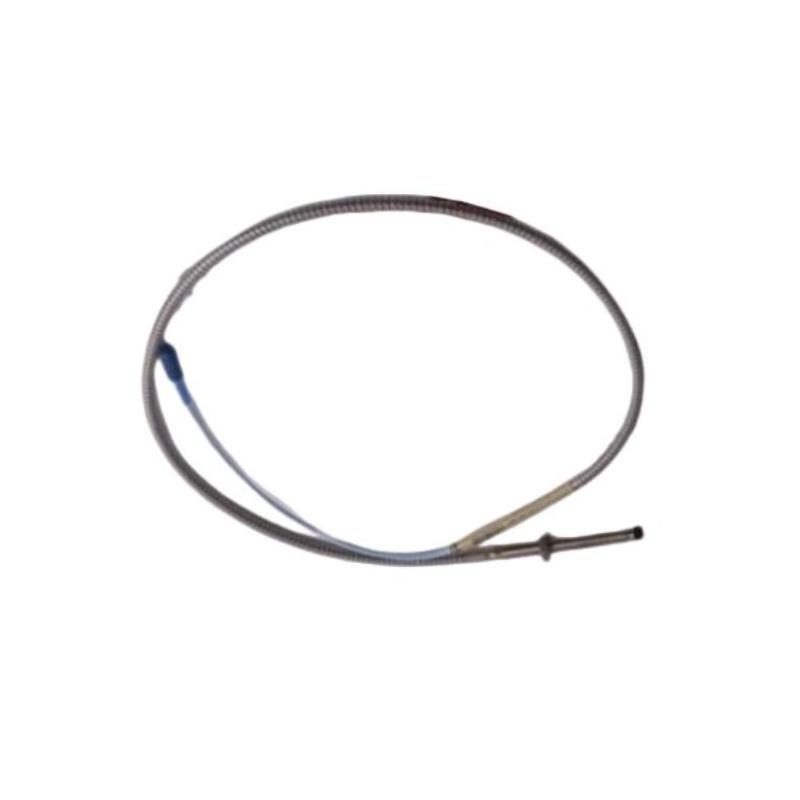

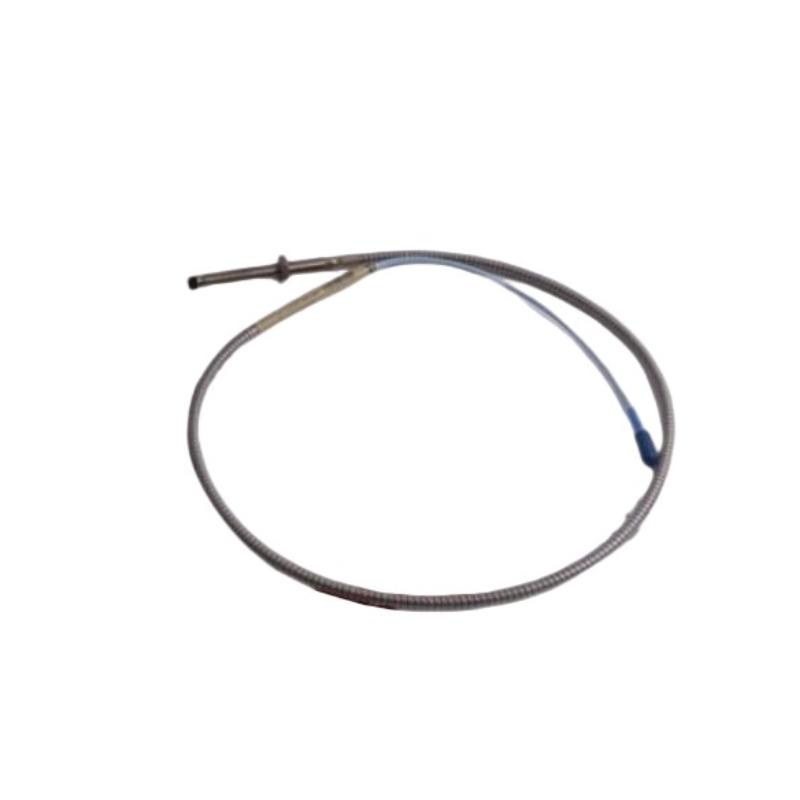

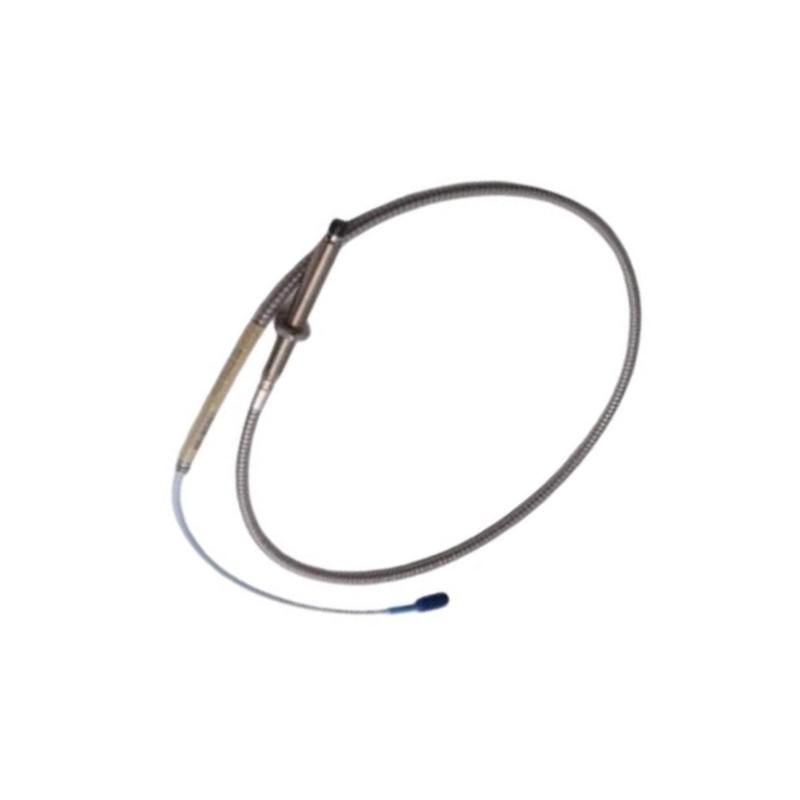

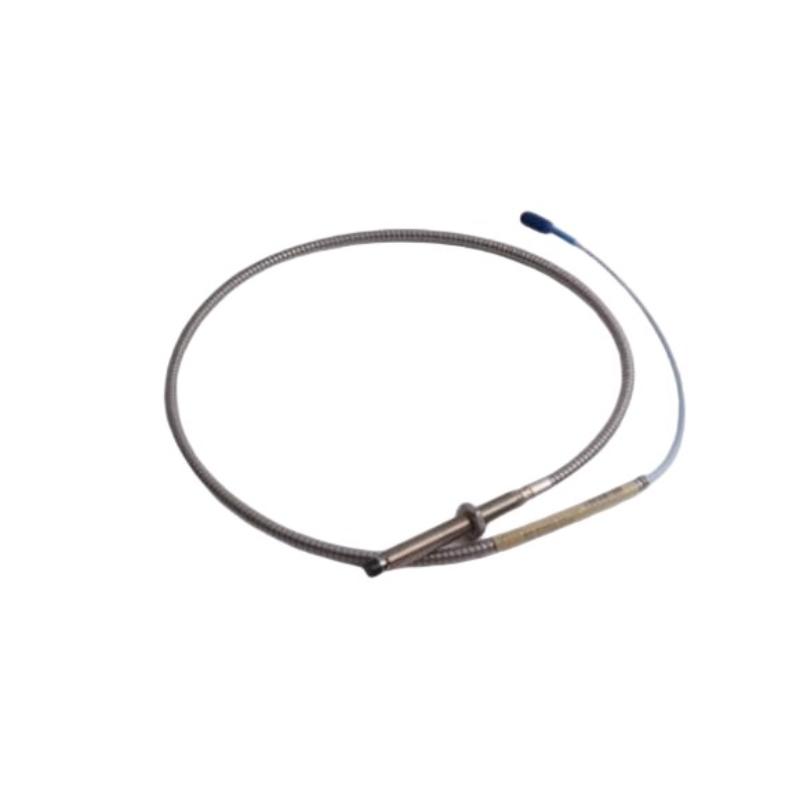

The Bently Nevada 330104-02-14-50-12-00 3300 XL 8 mm Eddy-Current Proximity Probe is a robust non-contact sensor designed for precise measurement of shaft vibration, displacement, and position in rotating machinery.
As part of the trusted 3300 XL series, this probe is engineered for industrial environments where reliability, interchangeability, and long-distance signal transmission are critical. It is widely used in turbine systems, compressors, pumps, and other high-value rotating assets that require continuous condition monitoring and predictive maintenance support.
The configuration offers a 140 mm case length, 5.0 m cable, and ClickLoc® connector system, ensuring stable mechanical installation and dependable signal integrity in demanding operating conditions.
Technical Specifications — Configuration & Mechanical Data
| Specification | Details |
|---|---|
| Product Type | 3300 XL 8 mm Eddy-Current Proximity Probe |
| Model Number | 330104-02-14-50-12-00 |
| Probe Diameter | 8 mm |
| Measurement Technology | Eddy-current non-contact sensing |
| Thread Type | M10 × 1 metric thread |
| Unthreaded Length | 20 mm |
| Overall Case Length | 140 mm |
| Cable Length | 5.0 m |
| Connector Type | Miniature coaxial ClickLoc® connector |
| Cable Type | 75 Ω industrial cable |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Operating Temperature | -52°C to +177°C |
| Housing Material | Stainless steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| System Compatibility | Bently Nevada 3300 XL system |
| Approx. Weight | ~0.5–0.8 kg |
