Overview — Armored Precision Sensor for Reliable Machinery Protection

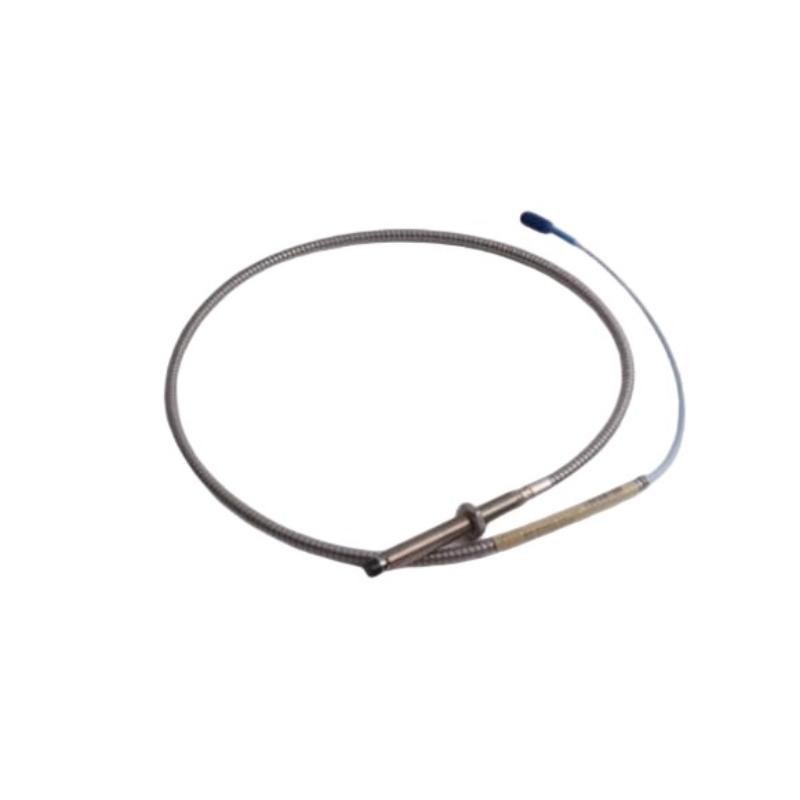

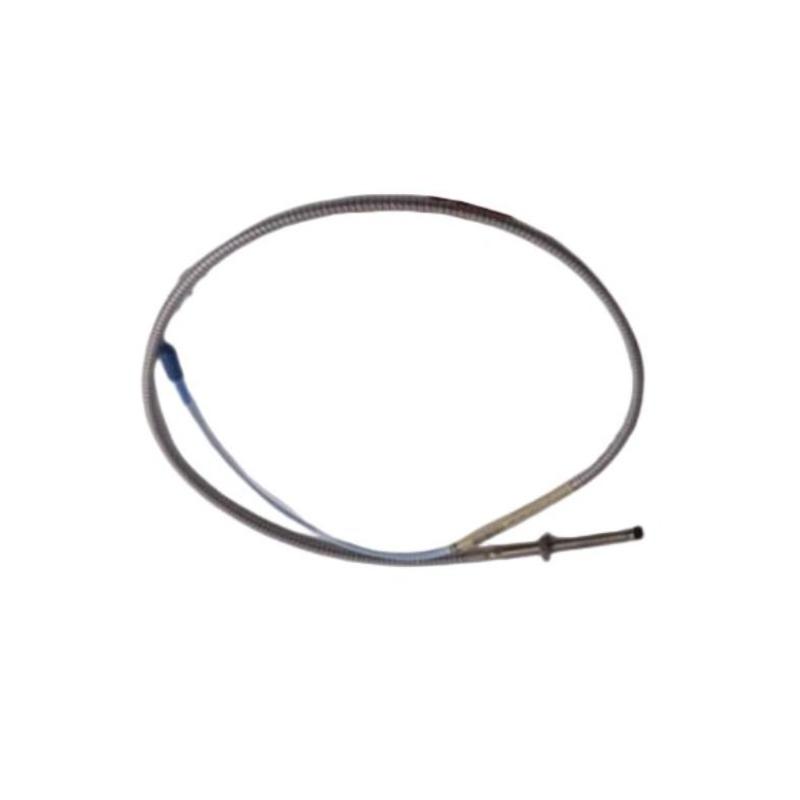

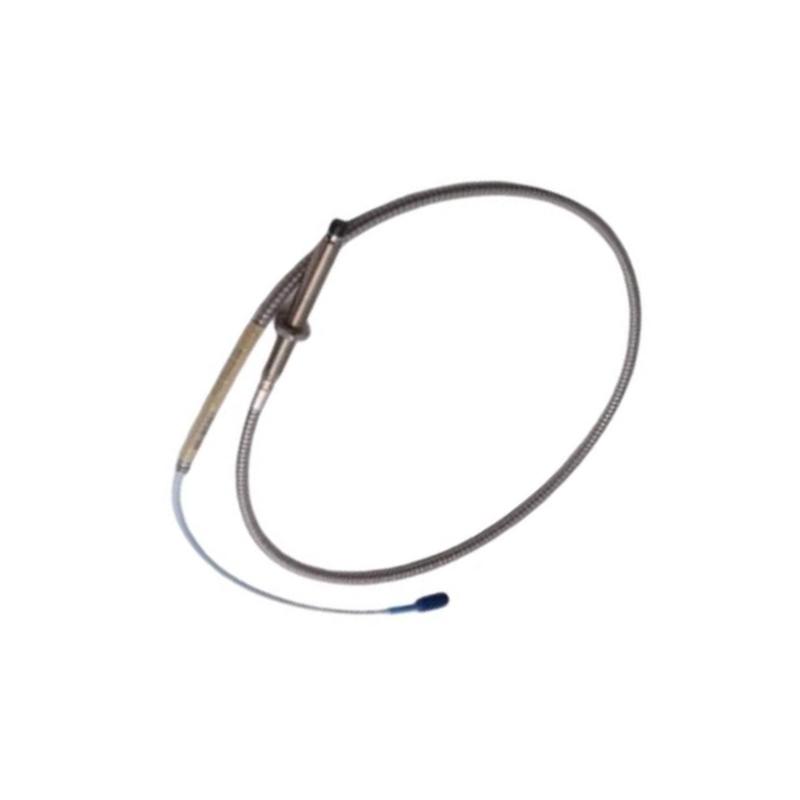

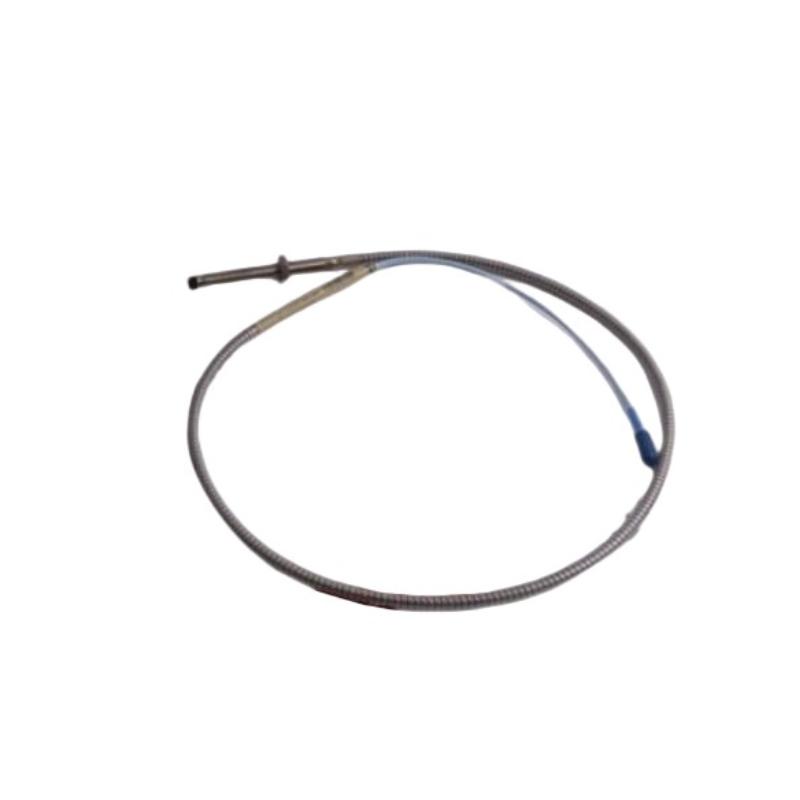

The Bently Nevada 330104-02-12-10-01-00 3300 XL 8 mm Eddy-Current Proximity Probe is a rugged non-contact sensor designed for accurate measurement of shaft vibration, displacement, and position in critical rotating machinery.
As part of the widely used Bently Nevada 3300 XL proximity transducer system, this model is built for industrial environments where long-term stability, mechanical durability, and measurement consistency are essential. The armored probe design and standardized interface allow seamless integration with compatible extension cables and Proximitor® systems.
This configuration is commonly used in turbine, compressor, and pump monitoring applications where precise condition monitoring directly supports predictive maintenance strategies.
Technical Specifications — Configuration & Mechanical Data
| Specification | Details |
|---|---|
| Product Type | 3300 XL 8 mm Eddy-Current Proximity Probe |
| Model Number | 330104-02-12-10-01-00 |
| Probe Diameter | 8 mm |
| Measurement Principle | Eddy-current non-contact sensing |
| Thread Type | M10 × 1 metric thread |
| Unthreaded Length | 20 mm |
| Overall Case Length | 120 mm |
| Cable Length | 1.0 m |
| Connector Type | Miniature coaxial ClickLoc® connector |
| Cable Type | Standard 75 Ω cable |
| System Compatibility | Bently Nevada 3300 XL system |
| Housing Material | Stainless steel |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Operating Temperature | -52°C to +177°C |
| Pressure Sealing | Viton® O-ring design |
| Application Standard | Industrial machinery monitoring |
