Reliable Precision for Compact Industrial Installations

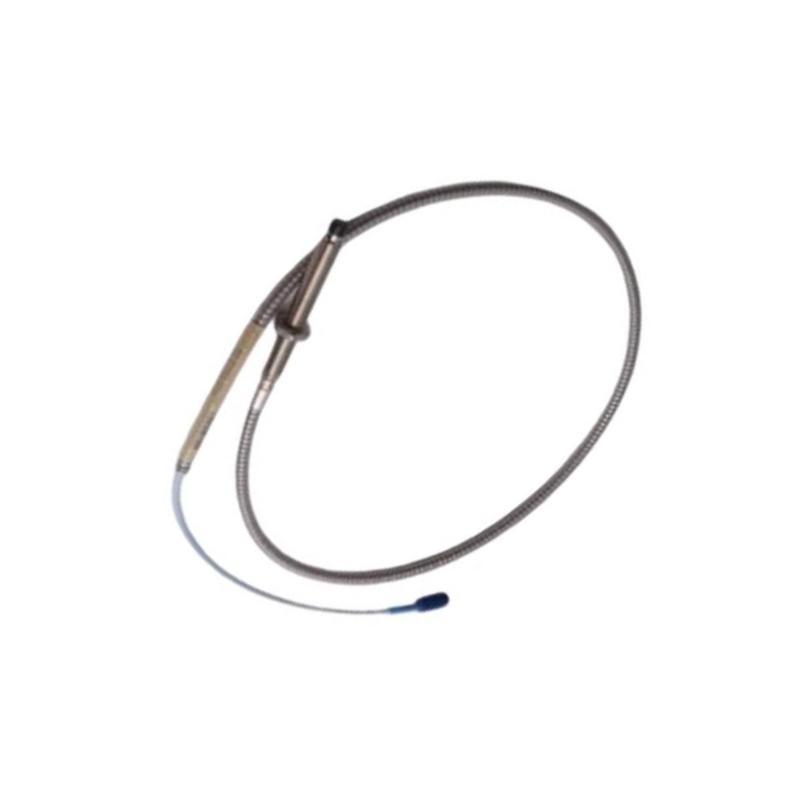

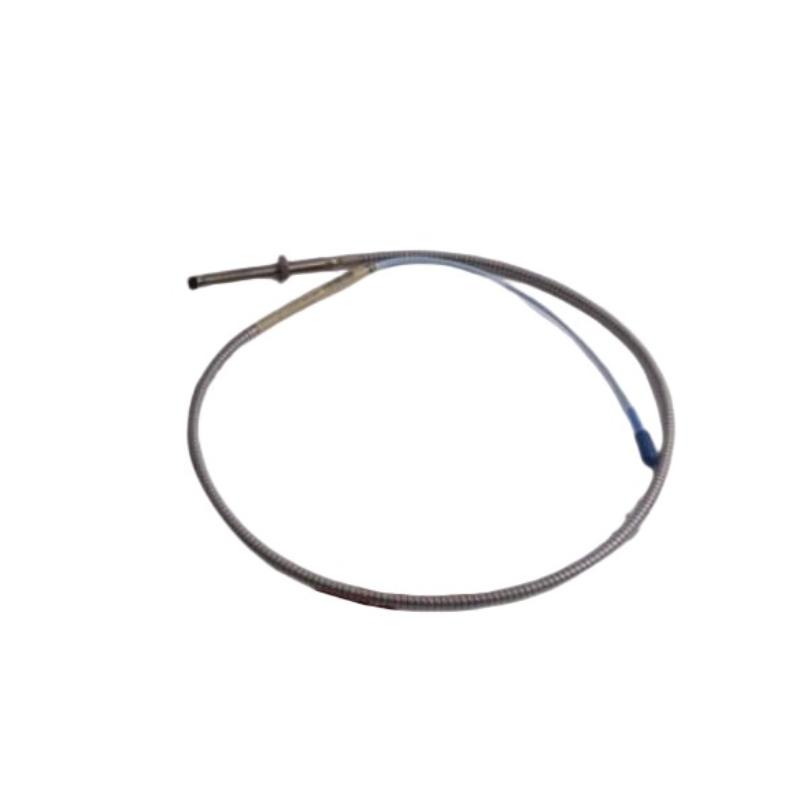

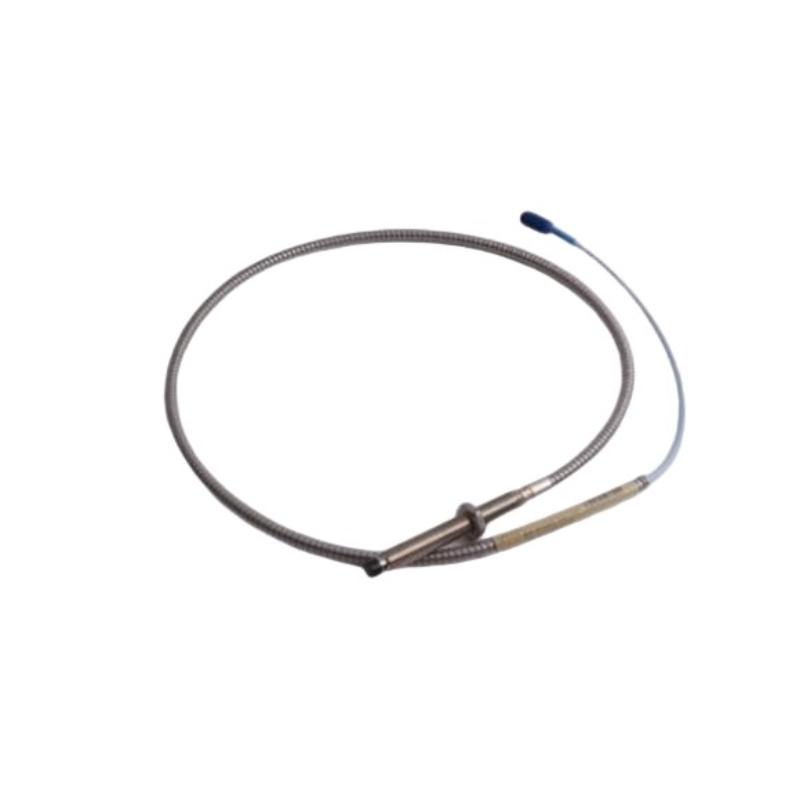

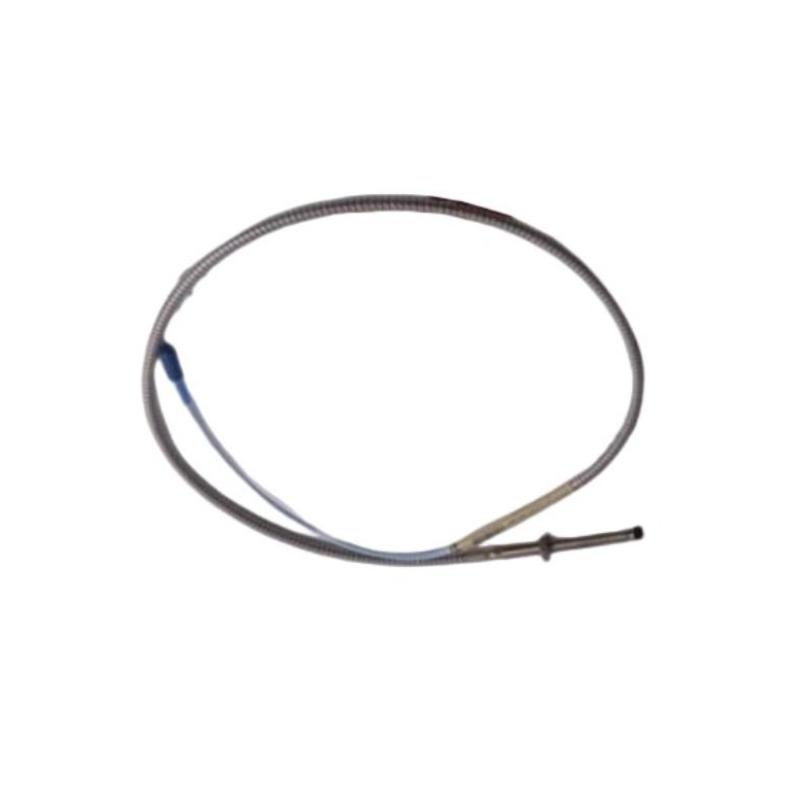

The Bently Nevada 330104-02-09-05-01-00 3300 XL 8 mm Proximity Probe is a high-performance eddy-current sensor developed for accurate monitoring of shaft vibration, radial displacement, and shaft position in critical rotating machinery. Built within the proven 3300 XL transducer platform, this probe delivers dependable signal stability, excellent temperature performance, and long service life for demanding industrial environments.
This configuration is ideal for installations that require a 20 mm unthreaded section, a 90 mm probe body, a compact 0.5 m cable assembly, and a protected ClickLoc® connector design. It is widely used in predictive maintenance systems to help operators maximize equipment uptime and minimize unexpected failures.
Technical Specifications — Configuration & Physical Details
| Specification | Details |
|---|---|
| Product Type | 3300 XL 8 mm Proximity Probe |
| Model Number | 330104-02-09-05-01-00 |
| Probe Diameter | 8 mm |
| Measurement Technology | Eddy-current non-contact sensing |
| Thread Type | M10 × 1 metric thread |
| Unthreaded Length | 20 mm |
| Overall Case Length | 90 mm |
| Cable Length | 0.5 m (1.6 ft) |
| Connector Type | Miniature coaxial ClickLoc® connector with protector |
| Cable Type | Standard 75 Ω industrial cable |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | 0 to 10 kHz |
| Operating Temperature | -52°C to +177°C |
| Housing Material | Stainless steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Pressure Seal | Viton® O-ring |
| Agency Approval | Standard industrial version |
| System Compatibility | Bently Nevada 3300 XL transducer systems |
| Approximate Dimensions | 90 × 30 × 30 mm |
| Approximate Weight | 0.30 kg |
