Advanced Monitoring Solution for Long-Distance Machinery Protection

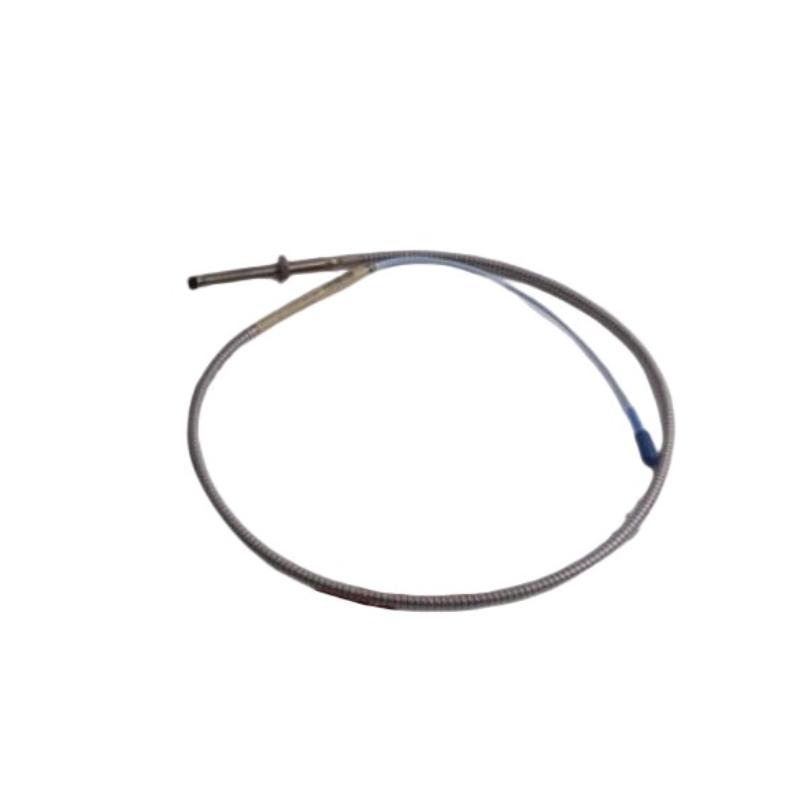

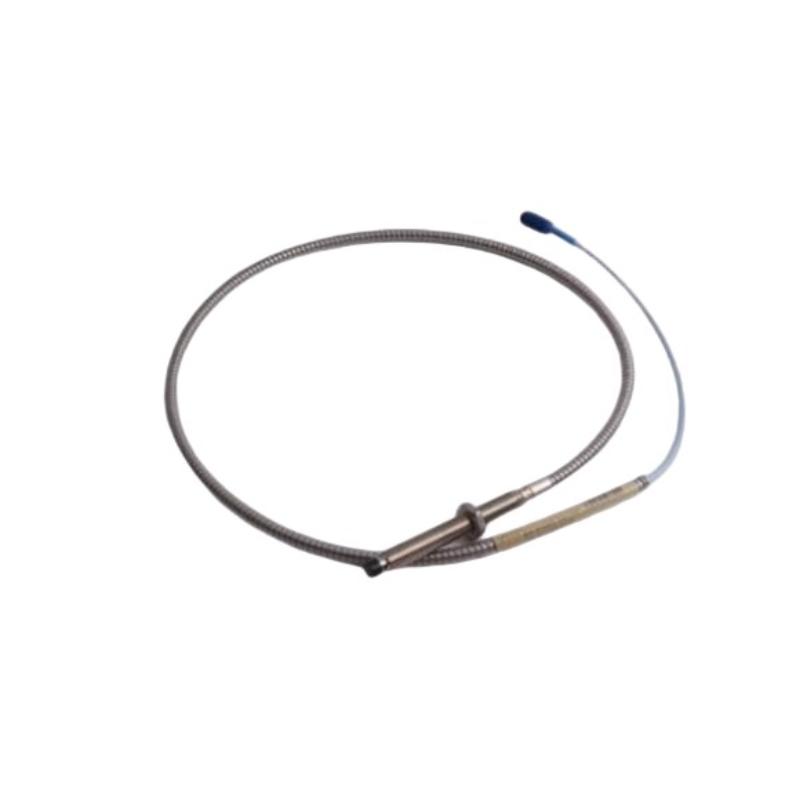

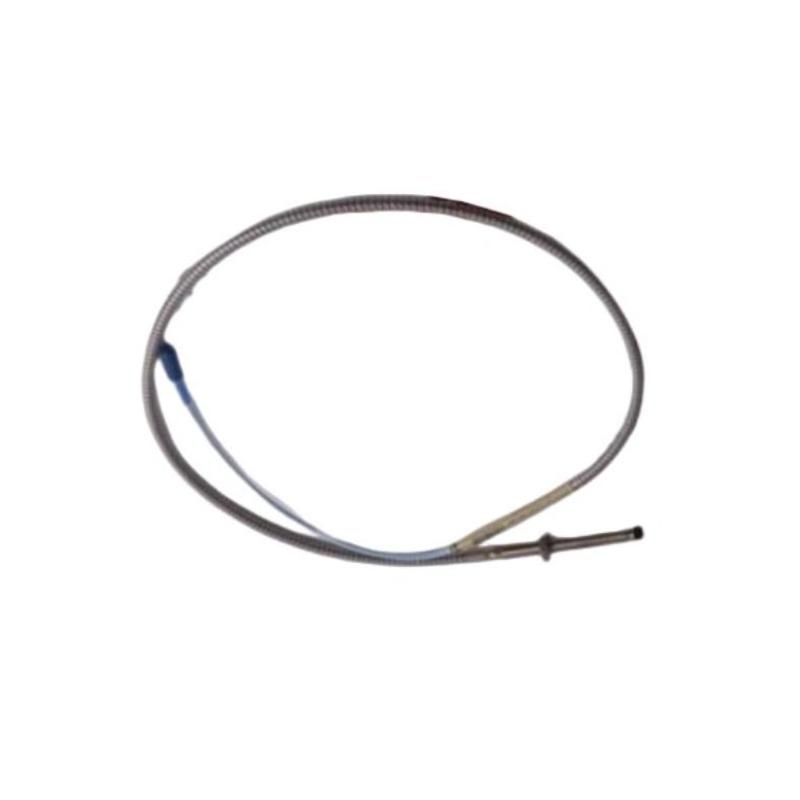

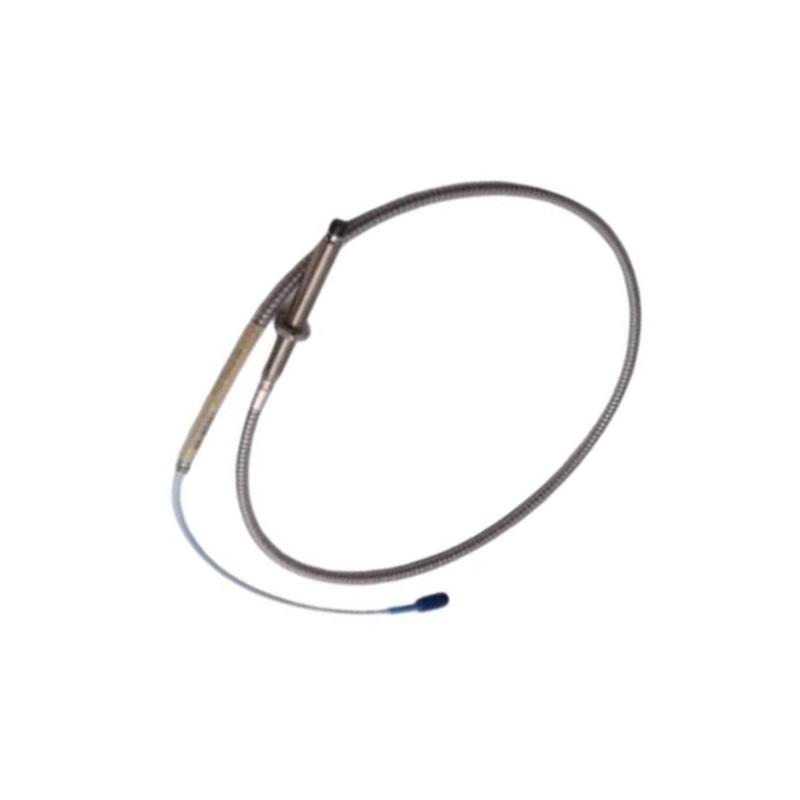

The Bently Nevada 330104-02-08-90-01-00 3300 XL 8 mm Proximity Probe is a high-performance eddy-current sensor developed for precise vibration, shaft displacement, and shaft position measurements in critical rotating machinery.
Designed as part of the globally recognized 3300 XL transducer system, this configuration combines an armored probe body, extended cable length, and rugged industrial construction to deliver exceptional reliability in demanding operating environments. The 3300 XL platform is widely deployed in machinery protection systems that require accurate condition monitoring and long-term operational stability.
The 02-08-90-01-00 configuration is particularly suitable for applications requiring long-distance cable routing and enhanced mechanical protection.
Technical Specifications — Engineering Configuration & Physical Data
| Specification | Details |
|---|---|
| Product Type | 3300 XL 8 mm Proximity Probe |
| Model Number | 330104-02-08-90-01-00 |
| Probe Diameter | 8 mm |
| Measurement Technology | Eddy-current non-contact sensing |
| Probe Construction | Armored metric probe |
| Thread Type | M10 × 1 |
| Unthreaded Length | 20 mm |
| Overall Case Length | 80 mm |
| Cable Length | 9.0 m (29.5 ft) |
| Connector Type | Miniature coaxial ClickLoc® connector with protector |
| Cable Type | Standard industrial cable |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | 0 to 10 kHz |
| Operating Temperature | -52°C to +177°C |
| Probe Housing Material | AISI 303/304 stainless steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Pressure Seal | Viton® O-ring design |
| Agency Approval | Standard industrial version |
| System Compatibility | Bently Nevada 3300 XL systems |
| Approximate Dimensions | 80 × 15 × 15 mm |
| Approximate Weight | 0.35–0.50 kg |
