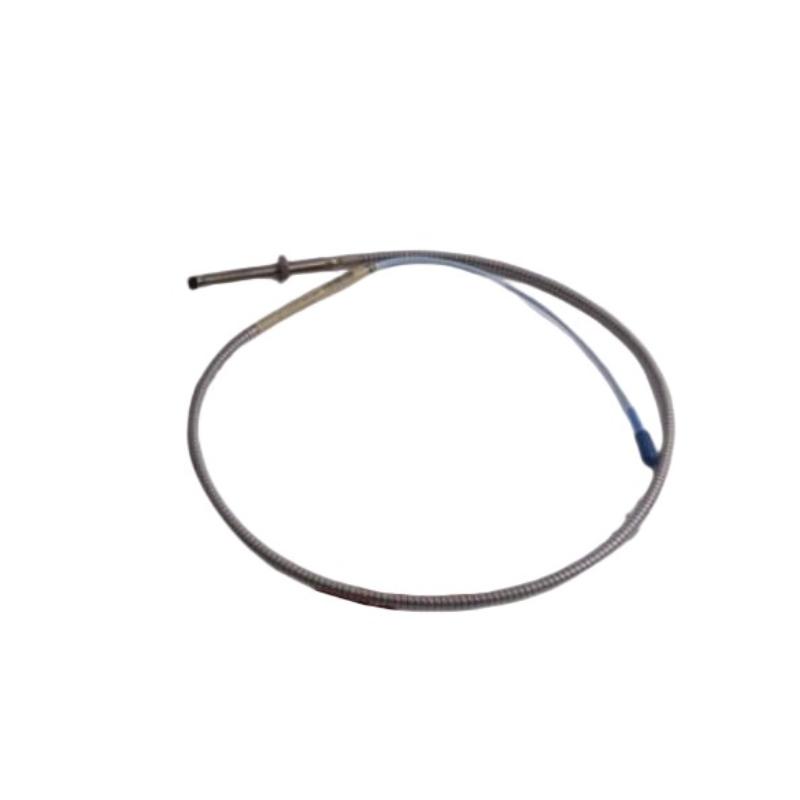

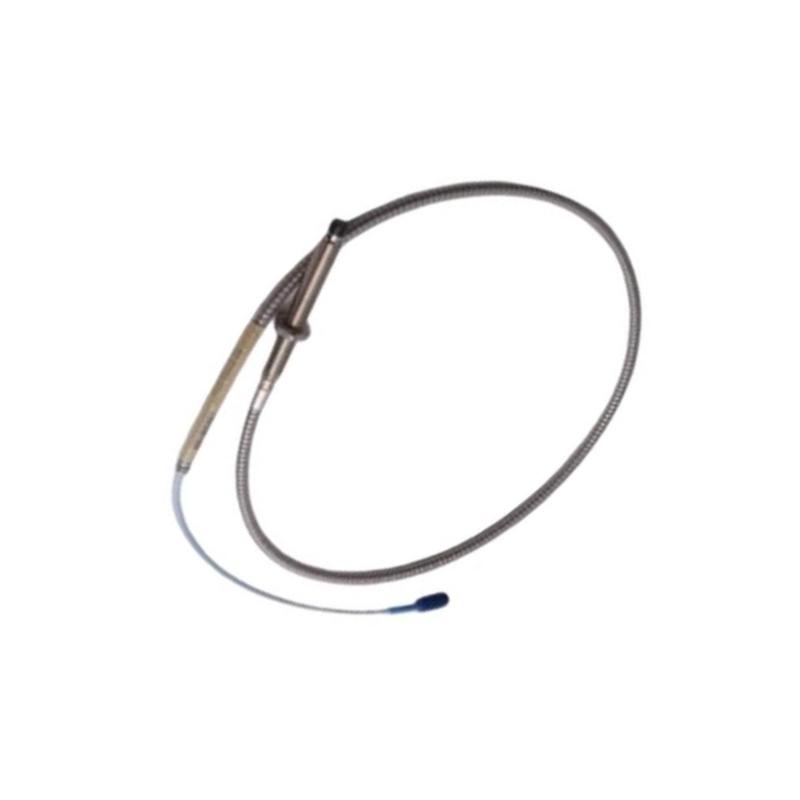

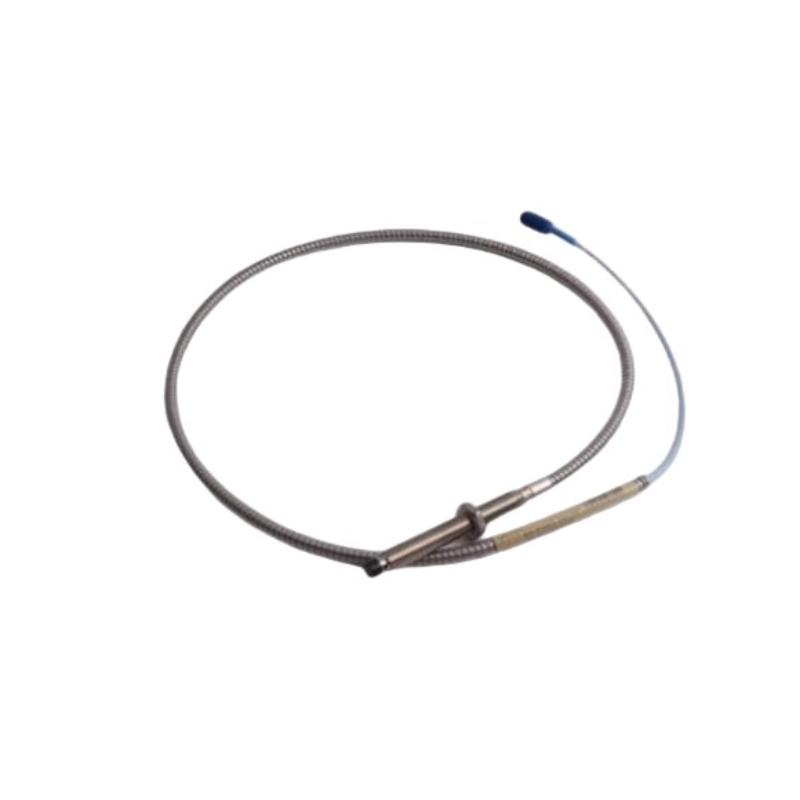

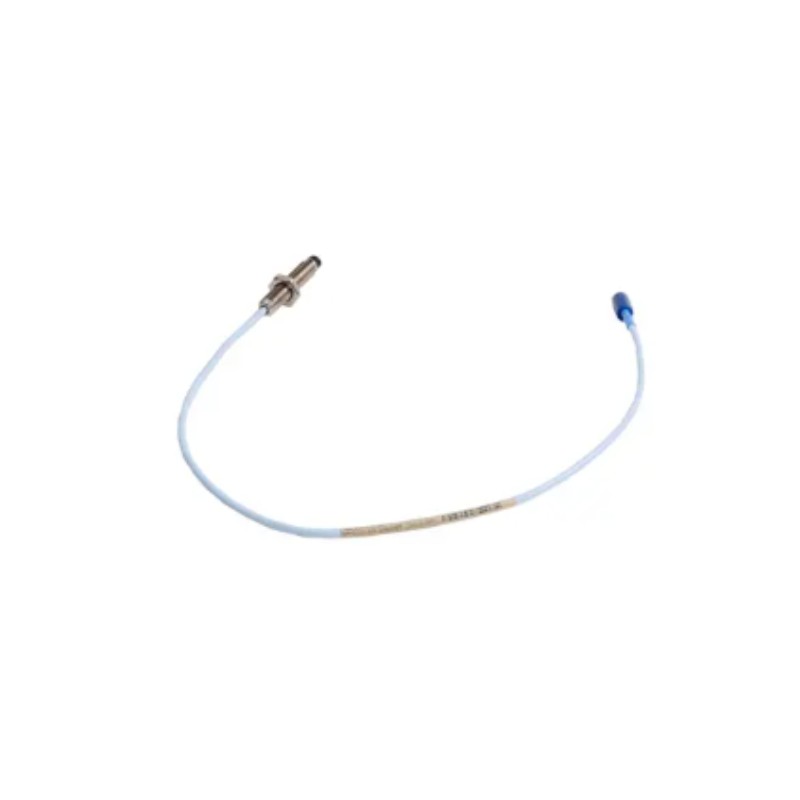

Bently Nevada 330104-01-05-05-02-00 3300 XL 8 mm Eddy-Current Proximity Probe
Smart Protection for High-Value Rotating Machinery
The Bently Nevada 330104-01-05-05-02-00 3300 XL 8 mm Eddy-Current Proximity Probe is a high-performance industrial sensor designed to provide accurate, continuous monitoring of shaft vibration, shaft position, and displacement in critical rotating equipment.
As part of the globally trusted 3300 XL machinery protection platform, this probe delivers excellent measurement stability, interchangeability, and long-term operational reliability. The 3300 XL system is widely used in turbines, compressors, pumps, and other fluid-film bearing machinery that require precise condition monitoring and predictive maintenance capabilities.
This configuration features a 10 mm unthreaded length, 50 mm case length, 0.5 m cable assembly, and standard ClickLoc® connector, offering installation flexibility for compact industrial applications. The standardized architecture allows probes, extension cables, and Proximitor® sensors to work together without individual bench calibration.
Technical Specifications — Engineering Configuration & Physical Data
| Specification | Details |
|---|---|
| Product Type | 3300 XL 8 mm Eddy-Current Proximity Probe |
| Model Number | 330104-01-05-05-02-00 |
| Probe Diameter | 8 mm |
| Measurement Technology | Eddy-current non-contact sensing |
| Unthreaded Length | 10 mm |
| Overall Case Length | 50 mm |
| Cable Length | 0.5 m (1.6 ft) |
| Connector Type | Miniature coaxial ClickLoc® connector |
| Cable Type | Standard 75 Ω industrial cable |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | 0 to 10 kHz |
| Operating Temperature | -52°C to +177°C |
| Housing Material | Stainless steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| System Compatibility | Bently Nevada 3300 XL systems |
| Approximate Dimensions | 22.9 × 5.1 × 22.9 cm (shipping dimensions) |
| Approximate Weight | 0.32 kg |
