Precision Beyond Distance — Built for Large Machinery Installations

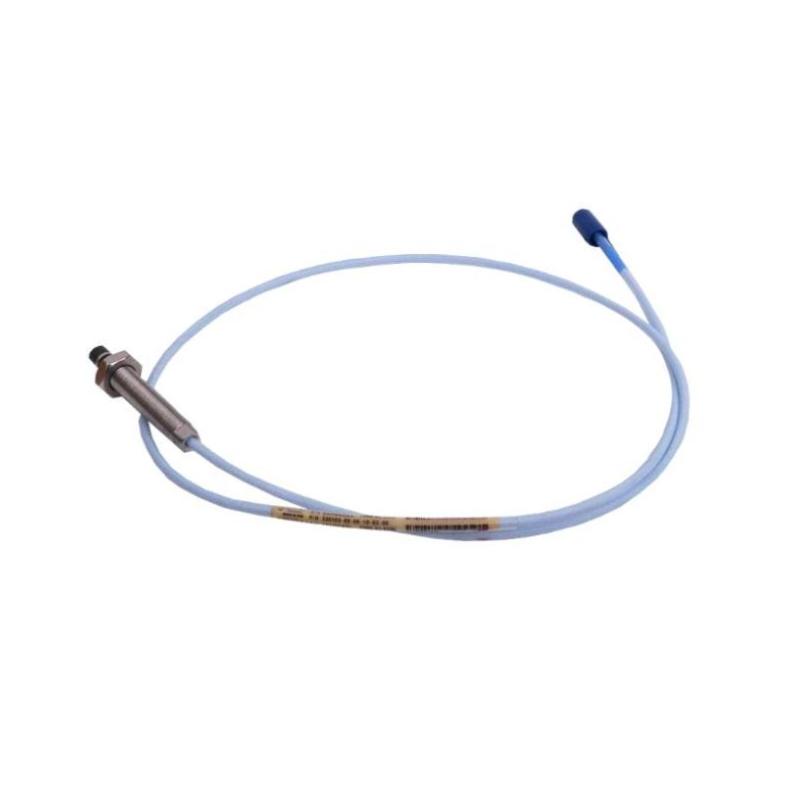

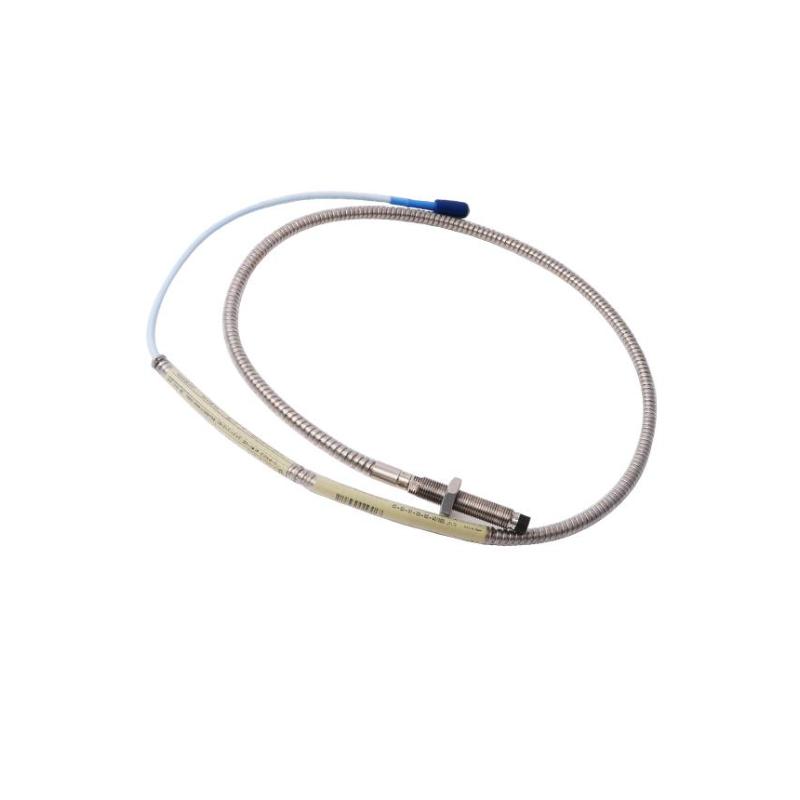

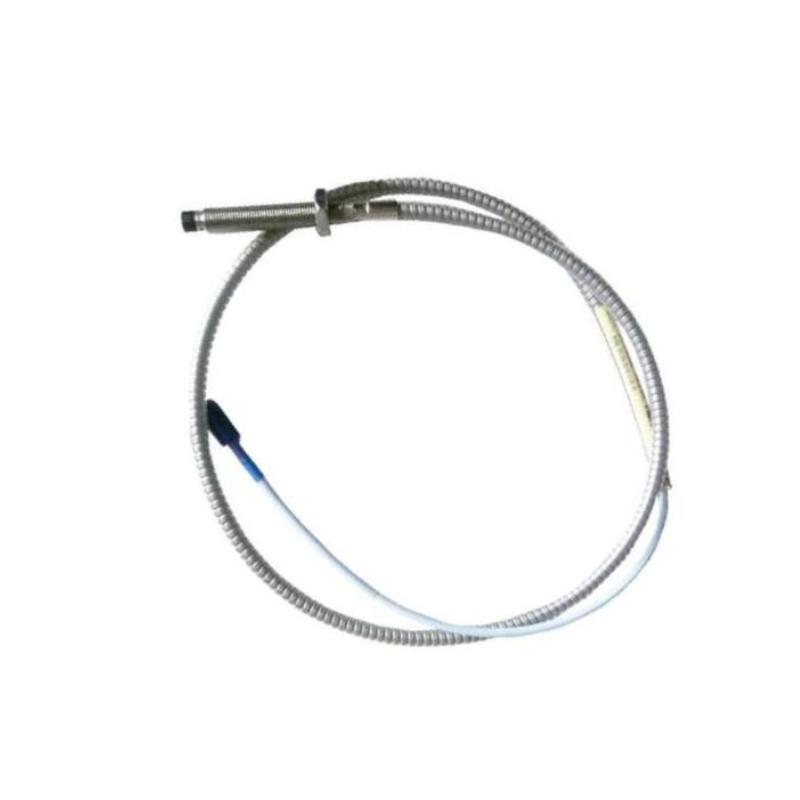

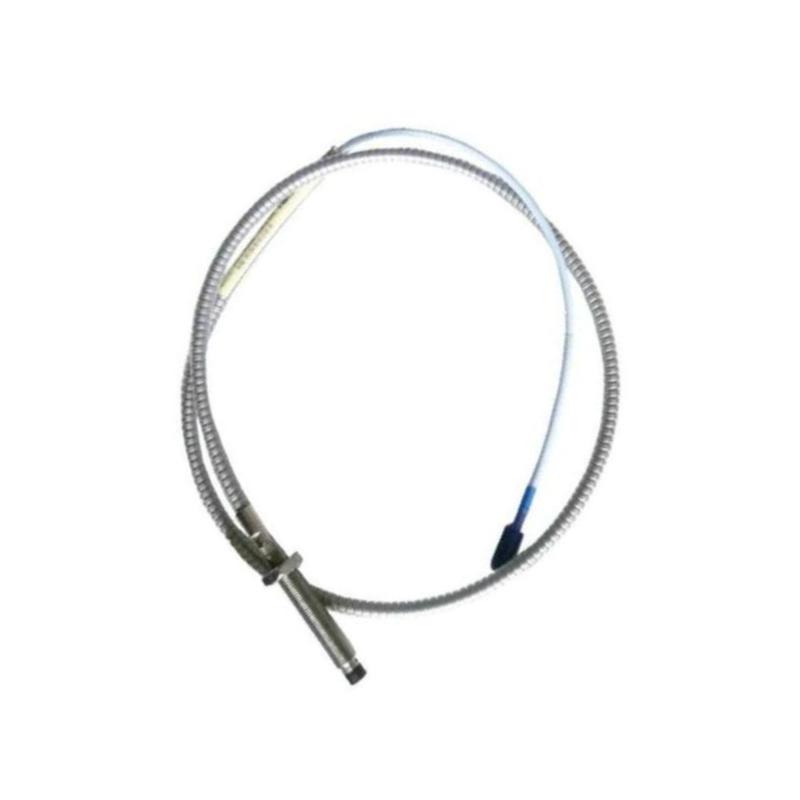

The Bently Nevada 330104-00-60-50-02-00 3300 XL 8 mm Eddy-Current Proximity Probe is a premium industrial sensor designed to provide highly accurate, continuous measurements of shaft vibration, shaft position, and radial displacement in critical rotating equipment.
As a member of the globally trusted 3300 XL machinery protection family, this configuration is optimized for installations requiring an exceptionally long probe body and extended cable routing. The 3300 XL platform is widely deployed in fluid-film bearing machinery and is designed for interchangeability with compatible probes, extension cables, and Proximitor® sensors.
Its rugged construction, stable signal output, and long-term reliability make it an excellent solution for predictive maintenance programs across power generation, oil & gas, petrochemical, and heavy industrial environments.
Technical Specifications — Mechanical Configuration & Operating Data
| Specification | Details |
|---|---|
| Product Type | 3300 XL 8 mm Eddy-Current Proximity Probe |
| Model Number | 330104-00-60-50-02-00 |
| Probe Diameter | 8 mm |
| Measurement Technology | Eddy-current non-contact sensing |
| Thread Type | M10 × 1 metric thread |
| Unthreaded Length | 0 mm |
| Overall Case Length | 600 mm |
| Cable Length | 5.0 m |
| Connector Type | Miniature coaxial ClickLoc® connector |
| Cable Type | Standard 75 Ω industrial cable |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | 0 to 10 kHz |
| Operating Temperature | -52°C to +177°C |
| Probe Housing Material | Stainless steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| System Compatibility | Bently Nevada 3300 XL transducer systems |
| Approximate Dimensions | 60 × 3 × 3 cm |
| Approximate Weight | 0.95 kg |
