Performance Overview — Extended-Reach Monitoring for Critical Rotating Assets

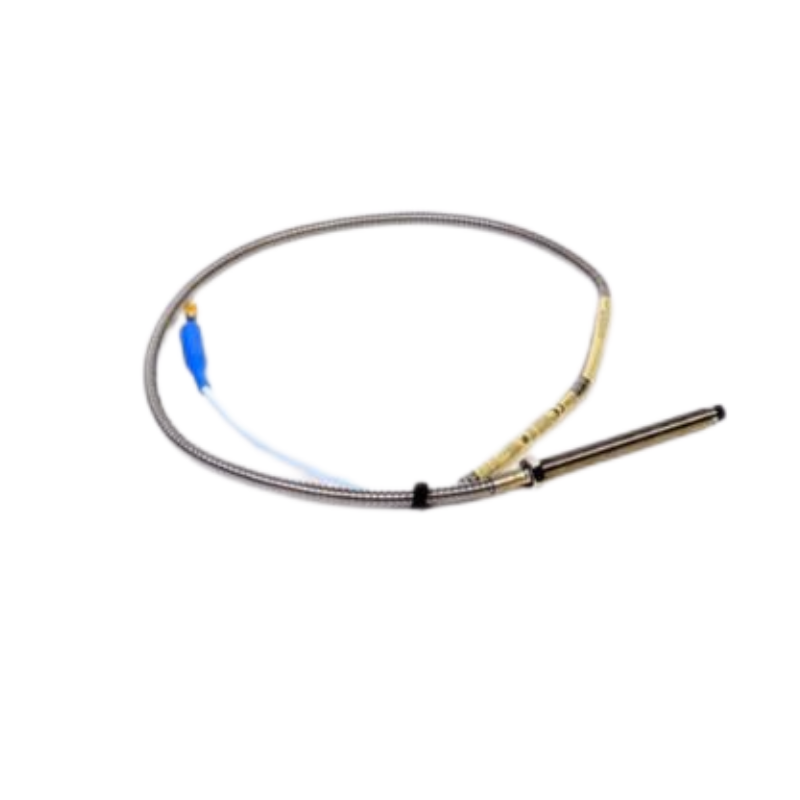

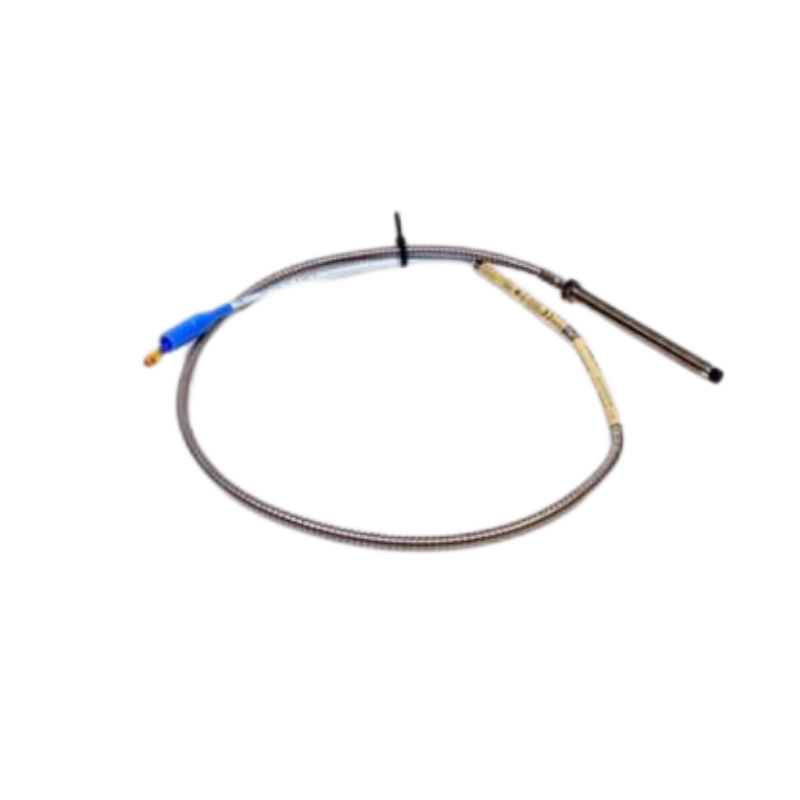

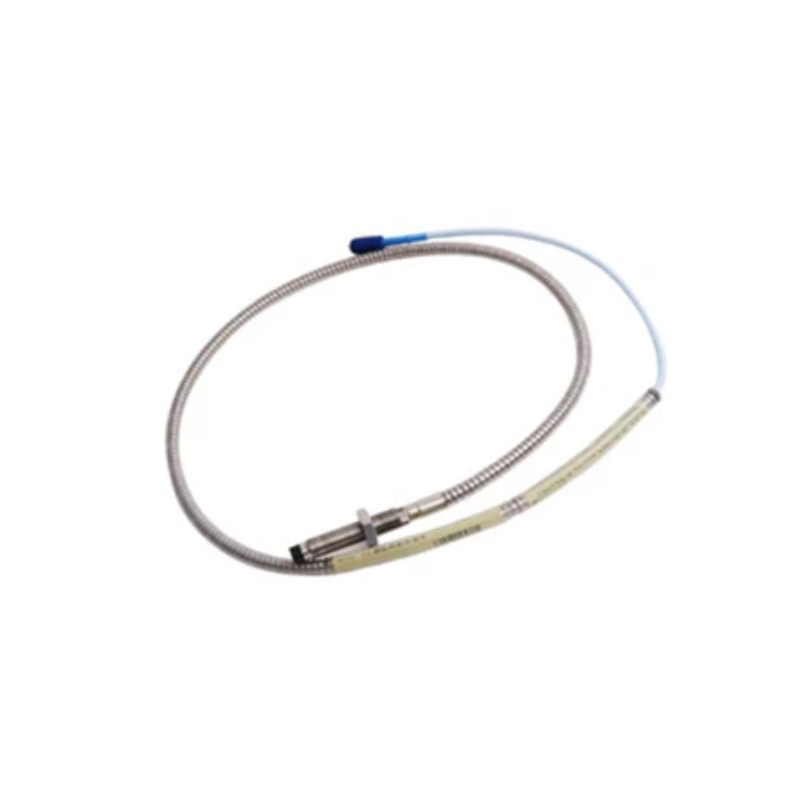

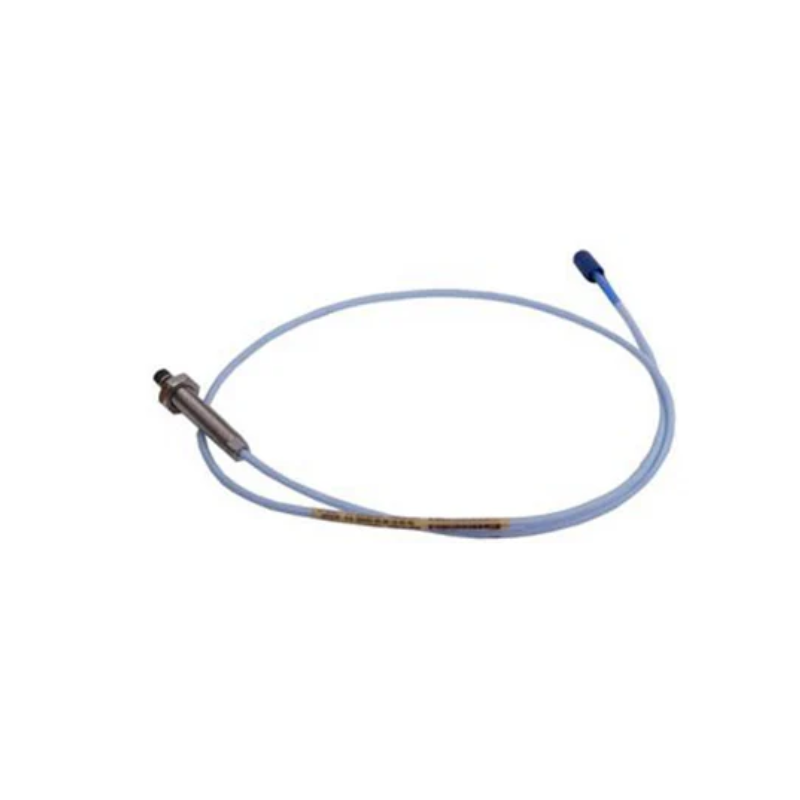

The Bently Nevada 330104-00-24-50-02-00 3300 XL 8 mm Eddy-Current Proximity Probe is a premium industrial sensor engineered to provide highly accurate, continuous measurement of shaft vibration, radial displacement, and shaft position in mission-critical rotating equipment.
As part of the trusted 3300 XL machinery protection platform, this probe combines an extended probe body with a longer cable configuration, allowing greater installation flexibility while maintaining excellent signal integrity. Its rugged construction and proven sensing technology make it an ideal solution for operators seeking dependable equipment protection and improved maintenance efficiency.
Designed for long-term industrial service, this probe supports predictive maintenance programs that help reduce unplanned downtime and maximize asset availability.
Technical Specifications — Configuration & Mechanical Details
| Specification | Details |
|---|---|
| Product Type | 3300 XL 8 mm Eddy-Current Proximity Probe |
| Model Number | 330104-00-24-50-02-00 |
| Probe Diameter | 8 mm |
| Measurement Technology | Eddy-current non-contact sensing |
| Thread Type | M10 × 1 metric thread |
| Unthreaded Length | 0 mm |
| Overall Case Length | 240 mm |
| Cable Length | 5.0 m |
| Connector Type | Miniature coaxial ClickLoc® connector |
| Cable Type | 75 Ω industrial coaxial cable |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | 0 to 10 kHz |
| Operating Temperature | -52°C to +177°C |
| Housing Material | Stainless steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| System Compatibility | Bently Nevada 3300 XL transducer systems |
| Approximate Dimensions | 24 × 3 × 3 cm |
| Approximate Weight | 0.55 kg |
